TAK Technology
NiZn · 3 Formgruppen · 12 Sätze · Katalog S. 160–161
RI+DR Serie 3SMD-Kernsätze

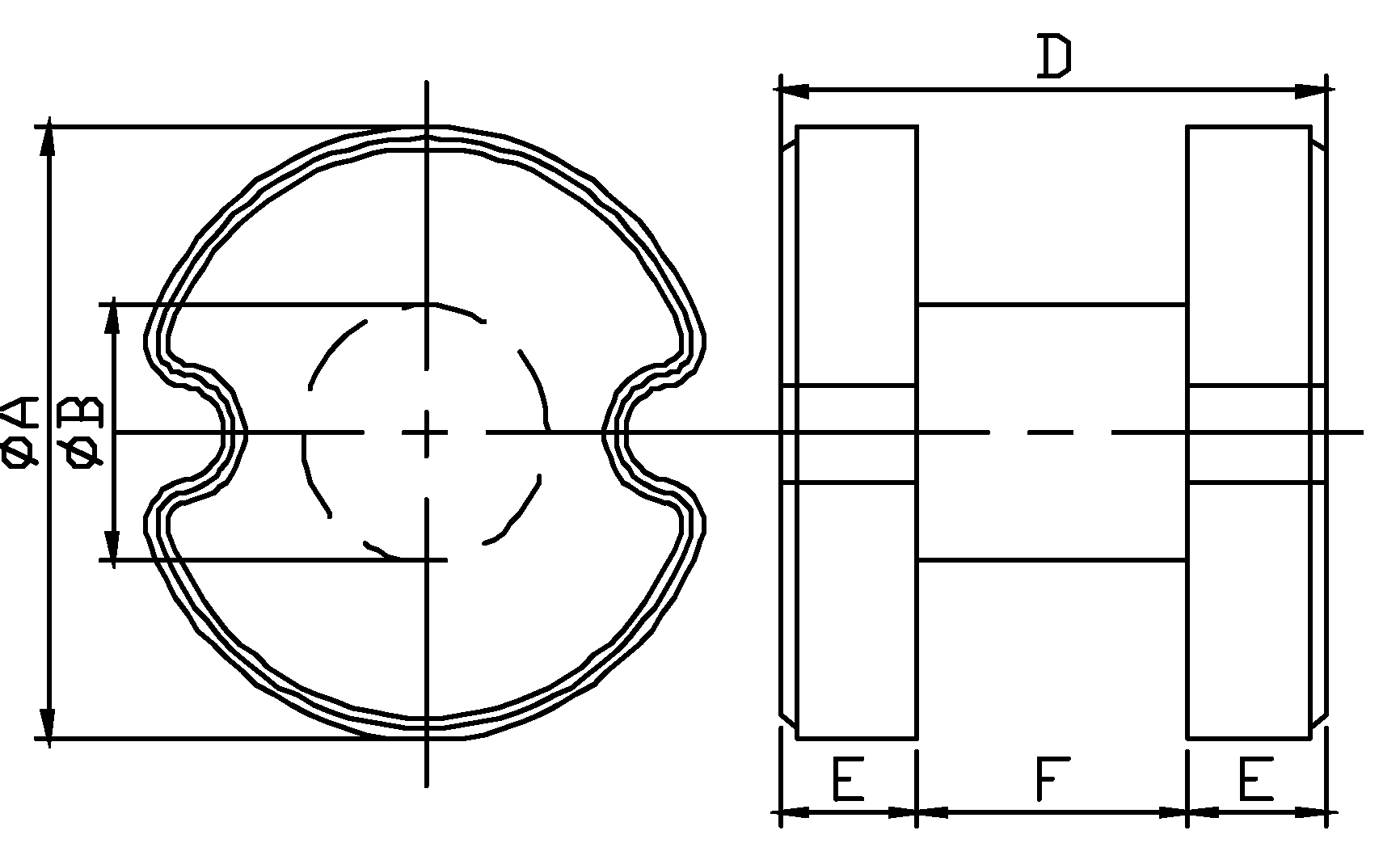

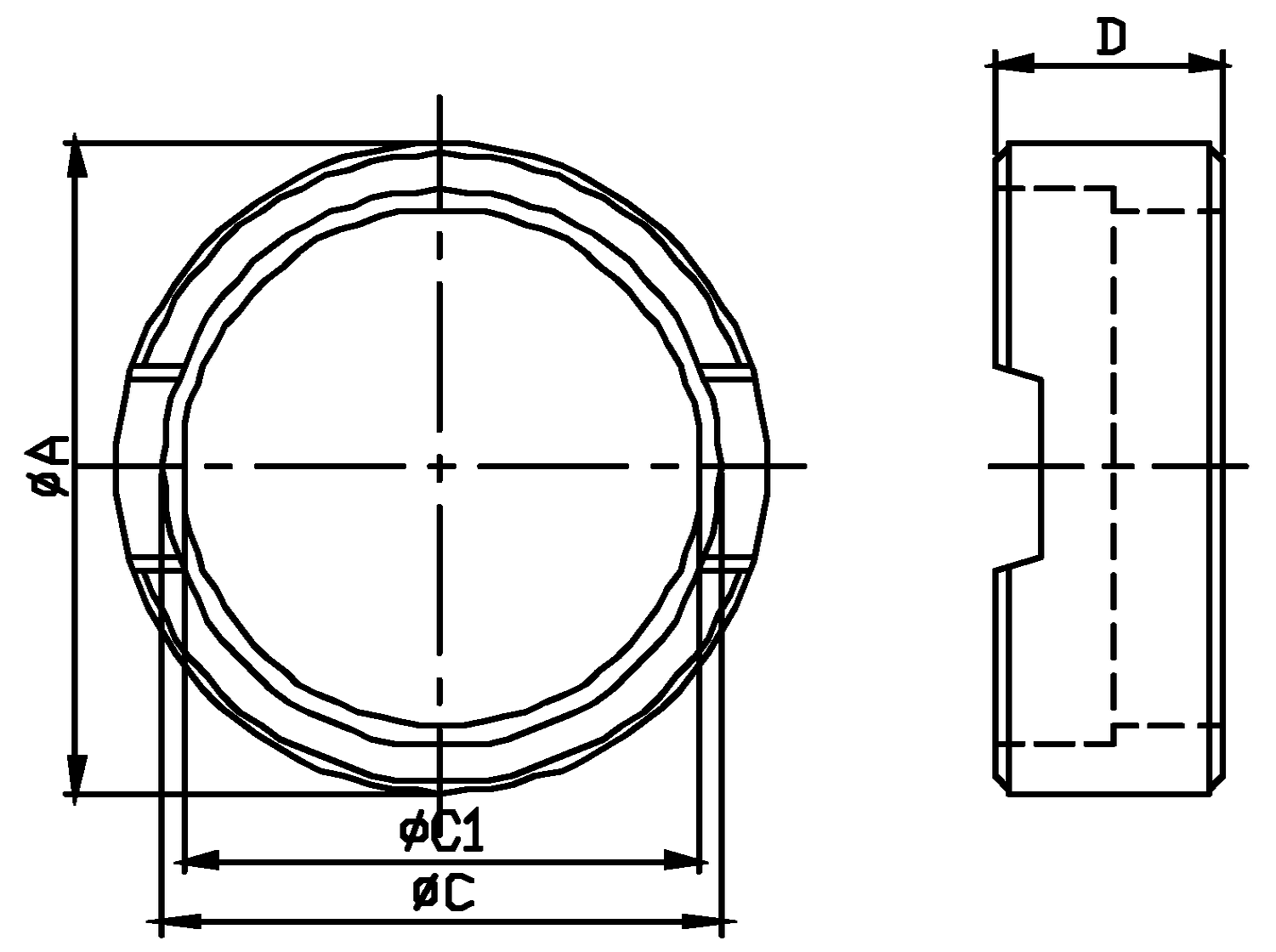

Fig.1 ＋ Fig.c
| Artikelnummer | Abmessungen · mm (Nennwert / Toleranz) | |||||||
|---|---|---|---|---|---|---|---|---|
| Bauteil | A(mm) | C(mm) | D(mm) | C1(mm) | B(mm) | E(mm) | F(mm) | |
| RI9.9×8.1×2 2T | RI | 9.90±0.20 | 8.40±0.15 | 2.00±0.15 | 8.10±0.20 | — | — | — |
| DR7×2.2R | DR | 7.00±0.15 | — | 2.20±0.15 | — | 3.40±0.15 | 0.70±0.15 | 0.80±0.15 |

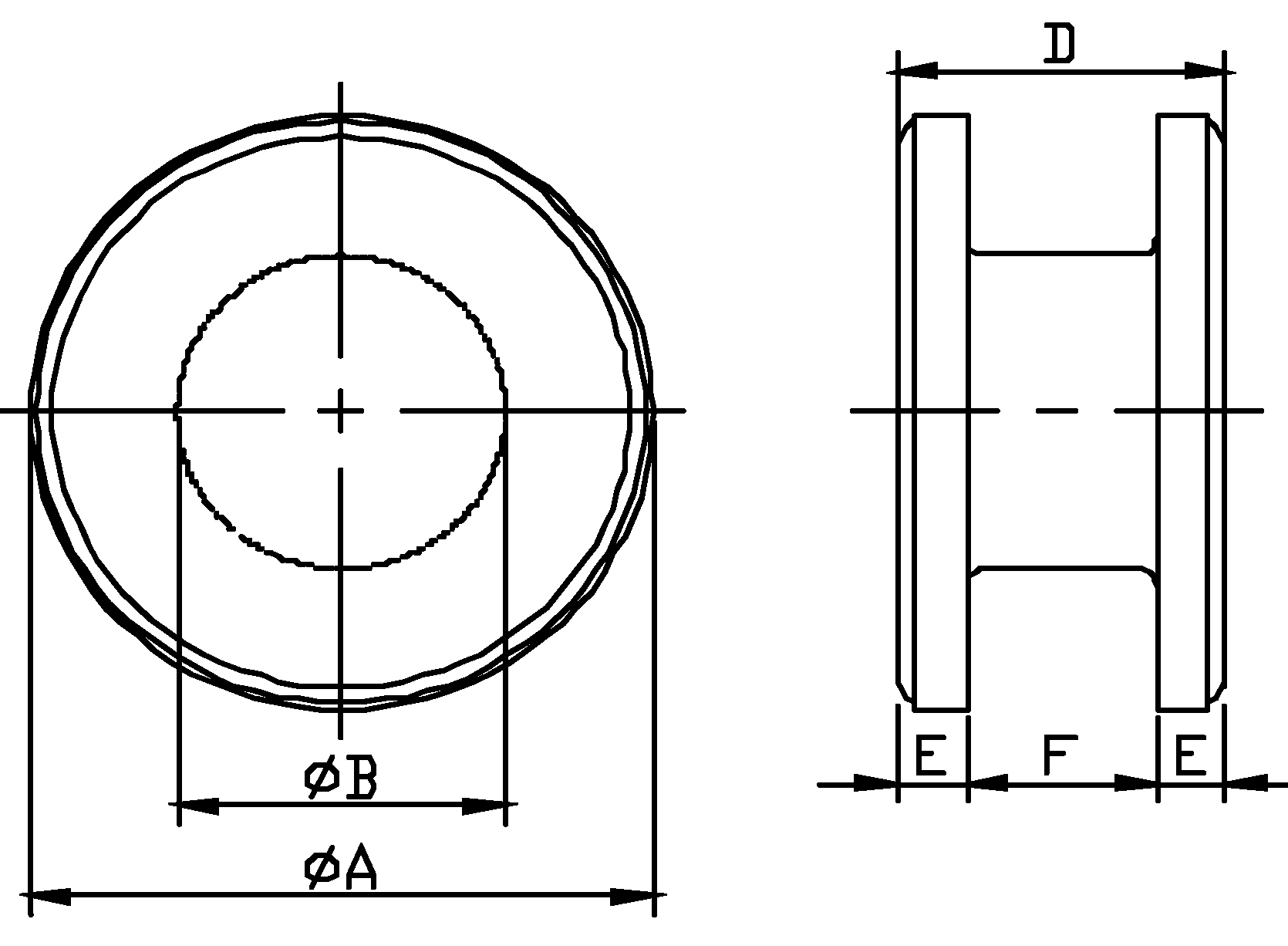

Fig.1 ＋ Fig.a
| Artikelnummer | Abmessungen · mm (Nennwert / Toleranz) | |||||||
|---|---|---|---|---|---|---|---|---|
| Bauteil | A(mm) | C(mm) | D(mm) | C1(mm) | B(mm) | E(mm) | F(mm) | |
| RI9.9×8.1×3.2 2T | RI | 9.90±0.20 | 8.40±0.15 | 3.20±0.15 | 8.10±0.20 | — | — | — |
| DR7.5×5.55 | DR | 7.50±0.15 | — | 5.55±0.15 | — | 3.70±0.15 | 0.65±0.15 | 2.25±0.15 |
| RI9.9×8.1×3.4T | RI | 9.90±0.20 | 8.40±0.15 | 3.40±0.15 | 8.10±0.20 | — | — | — |
| DR7.5×3.75 | DR | 7.50±0.15 | — | 3.75±0.15 | — | 3.70±0.15 | 0.50±0.15 | 2.55±0.15 |
| RI9.9×8.1×3.4 2T | RI | 9.90±0.20 | 8.40±0.15 | 3.40±0.15 | 8.10±0.20 | — | — | — |
| DR7.5×3.75 | DR | 7.50±0.15 | — | 3.75±0.15 | — | 3.70±0.15 | 0.60±0.15 | 2.55±0.15 |
| RI9.9×8.1×5.4 2T | RI | 9.90±0.20 | 8.40±0.15 | 5.40±0.15 | 8.10±0.20 | — | — | — |
| DR7.5×5.5B4.3F4 | DR | 7.50±0.15 | — | 5.50±0.15 | — | 4.30±0.15 | 0.75±0.15 | 4.00±0.15 |
| RI9.9×8.1×6.4T | RI | 9.90±0.20 | 8.40±0.15 | 6.40±0.15 | 8.10±0.20 | — | — | — |
| DR7.5×6.4 | DR | 7.50±0.15 | — | 6.40±0.15 | — | 4.00±0.15 | 0.95±0.15 | 4.50±0.15 |
| RI12.2×10.1×4.1 2T | RI | 12.20±0.25 | 10.30+0.20/-0.10 | 4.10±0.15 | 10.10±0.20 | — | — | — |
| DR9.6×4.3 | DR | 9.60±0.15 | — | 4.30±0.15 | — | 4.00±0.15 | 0.85±0.15 | 2.60±0.15 |
| RI12.2×10.1×5.3 2T | RI | 12.20±0.25 | 10.30+0.20/-0.10 | 5.30±0.15 | 10.10±0.20 | — | — | — |
| DR9.6×5.5 | DR | 9.60±0.15 | — | 5.50±0.15 | — | 5.30±0.15 | 0.95±0.15 | 3.60±0.15 |
| RI12.2×10.1×6.3 2T | RI | 12.20±0.25 | 10.30+0.20/-0.10 | 6.30±0.15 | 10.10±0.20 | — | — | — |
| DR9.6×6.5 | DR | 9.60±0.15 | — | 6.50±0.15 | — | 5.50±0.15 | 1.05±0.15 | 4.40±0.15 |
| RI12.2×10.1×6.3 2T | RI | 12.20±0.25 | 10.30+0.20/-0.10 | 6.30±0.15 | 10.10±0.20 | — | — | — |
| DR9.6×6.5 | DR | 9.60±0.15 | — | 6.50±0.15 | — | 6.00±0.15 | 1.05±0.15 | 4.40±0.15 |
| RI12.2×10.1×5.2 2T | RI | 12.20±0.25 | 10.40+0.15/-0.10 | 5.20±0.15 | 10.10±0.20 | — | — | — |
| DR9.58×5.5 | DR | 9.58±0.15 | — | 5.50±0.15 | — | 5.50±0.15 | 0.90±0.15 | 3.70±0.15 |

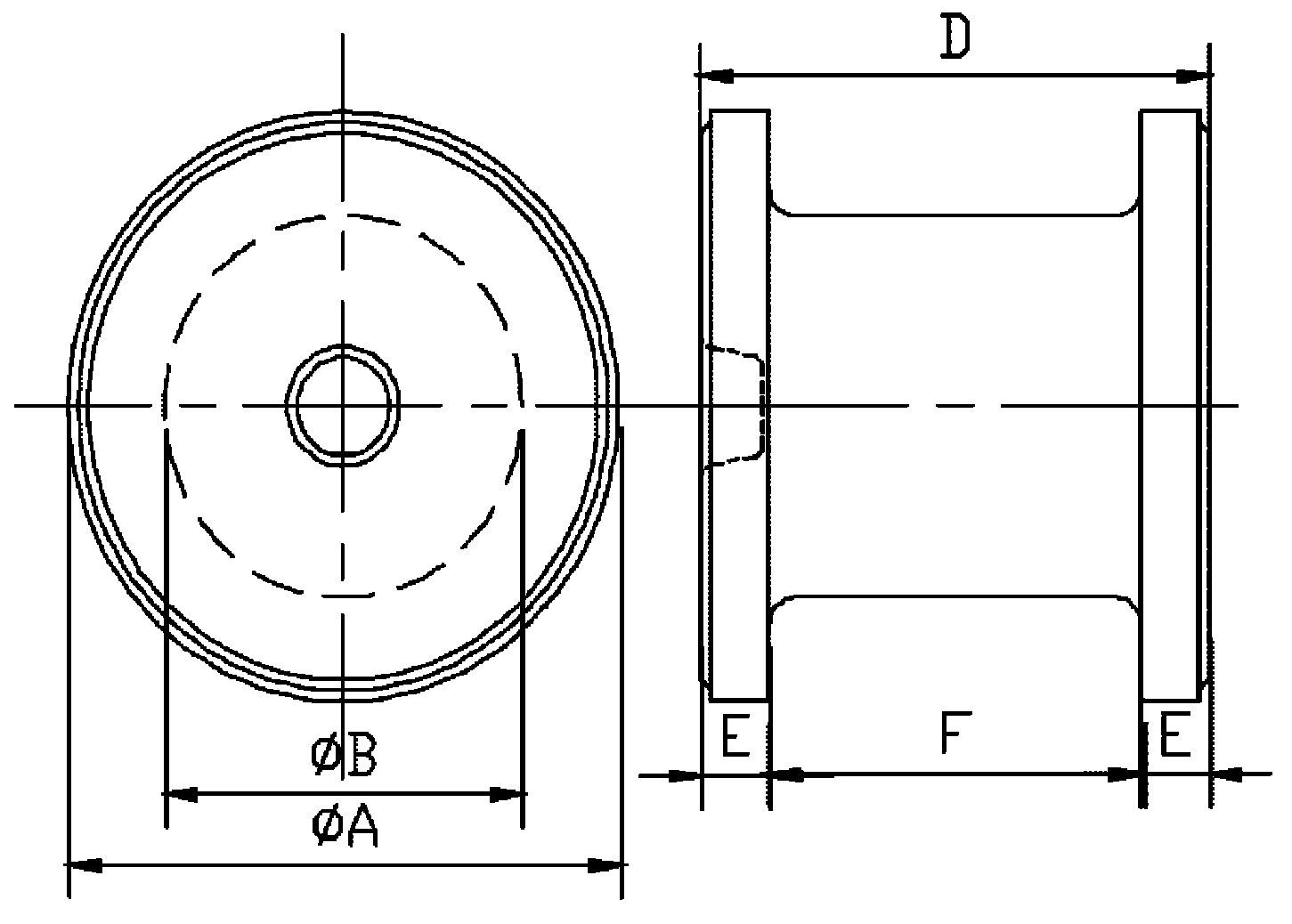

Fig.1 ＋ Fig.b
| Artikelnummer | Abmessungen · mm (Nennwert / Toleranz) | |||||||
|---|---|---|---|---|---|---|---|---|
| Bauteil | A(mm) | C(mm) | D(mm) | C1(mm) | B(mm) | E(mm) | F(mm) | |
| RI12.2×10.1×6.3 2T | RI | 12.20±0.25 | 10.30+0.20/-0.10 | 6.30±0.15 | 10.10±0.20 | — | — | — |
| DR9.6×6.5H | DR | 9.60±0.15 | — | 6.50±0.15 | — | 5.50±0.15 | 1.05±0.15 | 4.40±0.15 |
