MnZn · 3 shape groups · 8 part numbers · Catalogue p. 204–205
DRH Core Type 1Rod, Drum & Plate Cores Fig.1 6 Fig.2 1 Fig.3 1 Fig.1 Fig.1 Shape group 01 / 03 6 part numbers P/N Dimensions · mm (nominal / tolerance) A(mm) B(mm) D(mm) E(mm) F(mm) H(mm) J(mm) DRH14×20RCB8.8F14 Uncoated 13.40±0.30 8.80±0.20 20.00±0.50 3.00±0.20 14.00±0.30 5.10±0.30 — 〃 Coated 14.20max 9.50max 21.00max 3.70max 13.20min 4.30min — DRH14×20RCB8.5F12.4 Uncoated 13.80±0.50 8.50±0.20 20.00±0.60 3.80±0.20 12.40±0.40 3.30±0.20 — 〃 Coated 14.80max 9.20max 21.10max 4.80max 11.50min 2.60min — DRH14×20RCB8.8F12.4 Uncoated 13.80±0.30 8.80±0.20 20.00±0.50 3.80±0.20 12.40±0.30 3.30±0.20 — 〃 Coated 14.70max 9.50max 21.00max 4.50max 11.70min 2.60min — DRH18×20RCB11F12.5 Uncoated 18.00±0.50 11.00±0.30 20.00±0.60 3.75±0.25 12.50±0.40 4.30±0.30 — 〃 Coated 18.90max 11.70max 21.00max 4.50max 11.60min 3.60min — DRH18×20.3RCB11F12.3 Uncoated 18.00±0.50 11.00±0.30 20.30±0.60 4.00±0.25 12.30±0.40 4.30±0.30 — 〃 Coated 18.90max 11.70max 21.30max 4.75max 11.40min 3.60min — DRH19×20RCB11F13 Uncoated 19.00±1.00 11.00±0.30 20.00±1.00 3.50±0.25 13.00±0.50 4.00±0.30 — 〃 Coated 20.50max 11.80max 21.50max 4.20max 12.00min 3.20min —

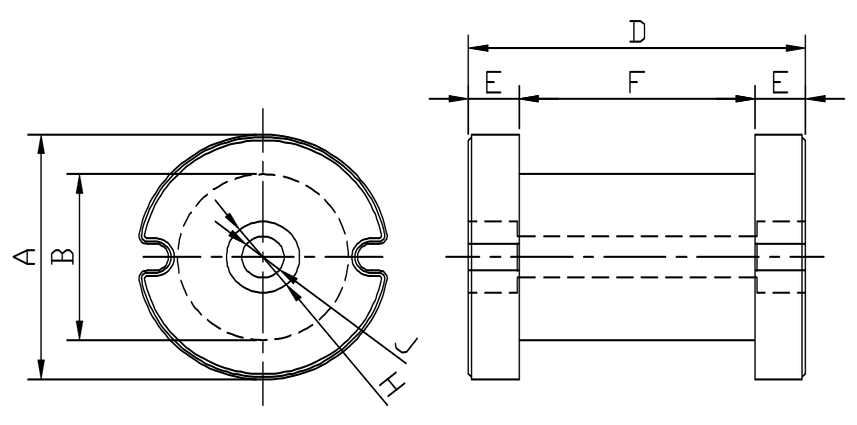

Fig.2 Fig.2 Shape group 02 / 03 1 part numbers P/N Dimensions · mm (nominal / tolerance) A(mm) B(mm) D(mm) E(mm) F(mm) H(mm) J(mm) DRH15.5×20.7RB10.5F14.5 Uncoated 15.50±0.30 10.50±0.20 20.70±0.40 3.10±0.20 14.50±0.30 4.50±0.15 2.60±0.15 〃 Coated NA NA NA NA NA NA NA

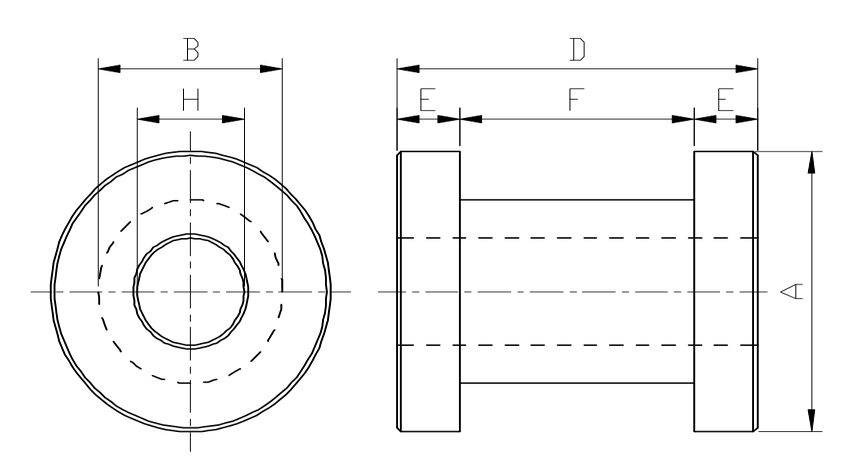

Fig.3 Fig.3 Shape group 03 / 03 1 part numbers P/N Dimensions · mm (nominal / tolerance) A(mm) B(mm) D(mm) E(mm) F(mm) H(mm) J(mm) DRH28×22C Uncoated 28.00±1.00 17.00±0.60 22.00±1.00 3.50±0.30 15.00±0.50 5.00±0.30 — 〃 Coated 29.50max 18.10max 23.50max 4.20max 14.00min 4.20min —
☆For any DRH core requirement not listed in the catalog, please feel free to contact with us for more information, for B、D、E、F dimension are adjustable.
