NiZn · 4 shape groups · 10 sets · Catalogue p. 156–157

RI+DR1SMD

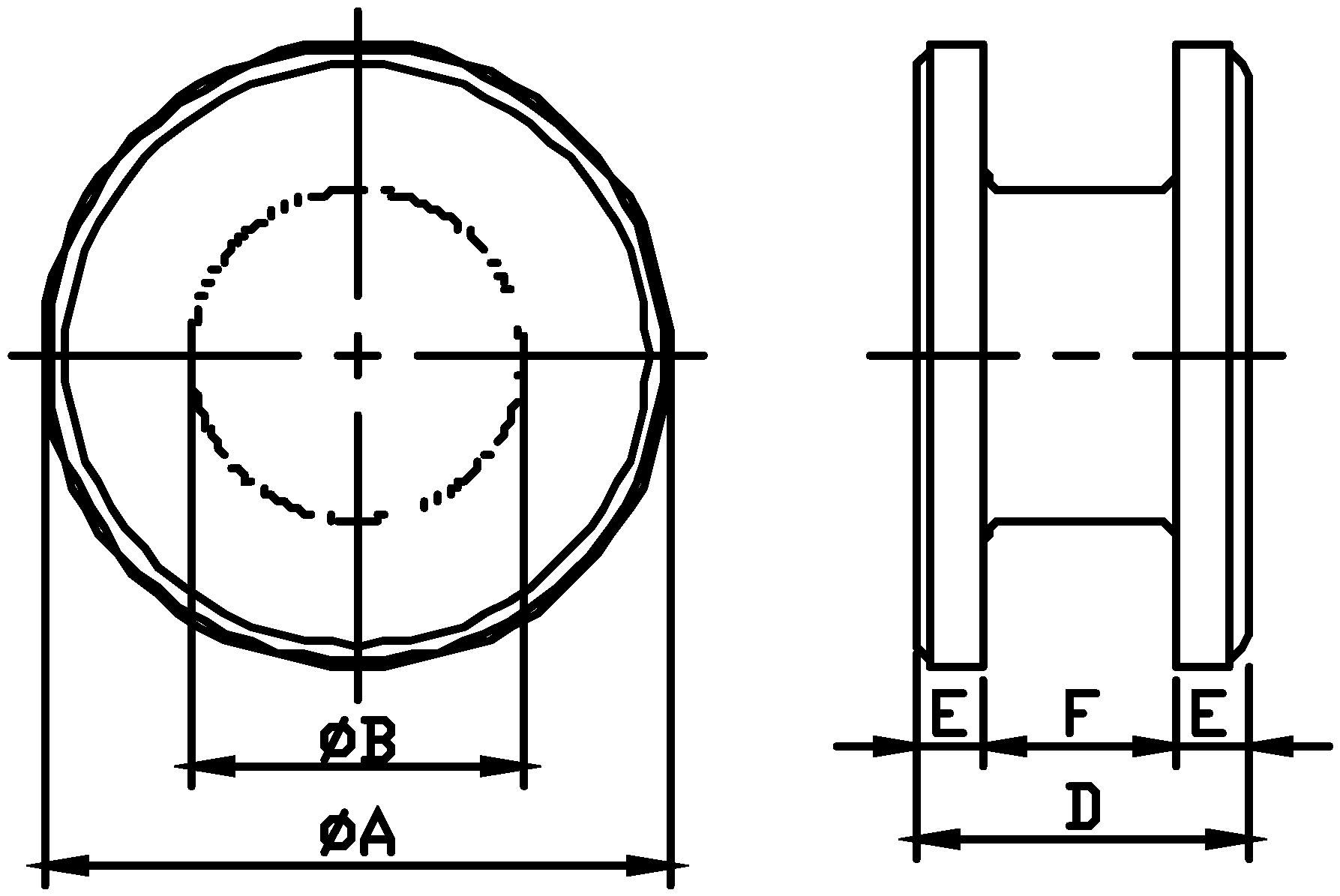

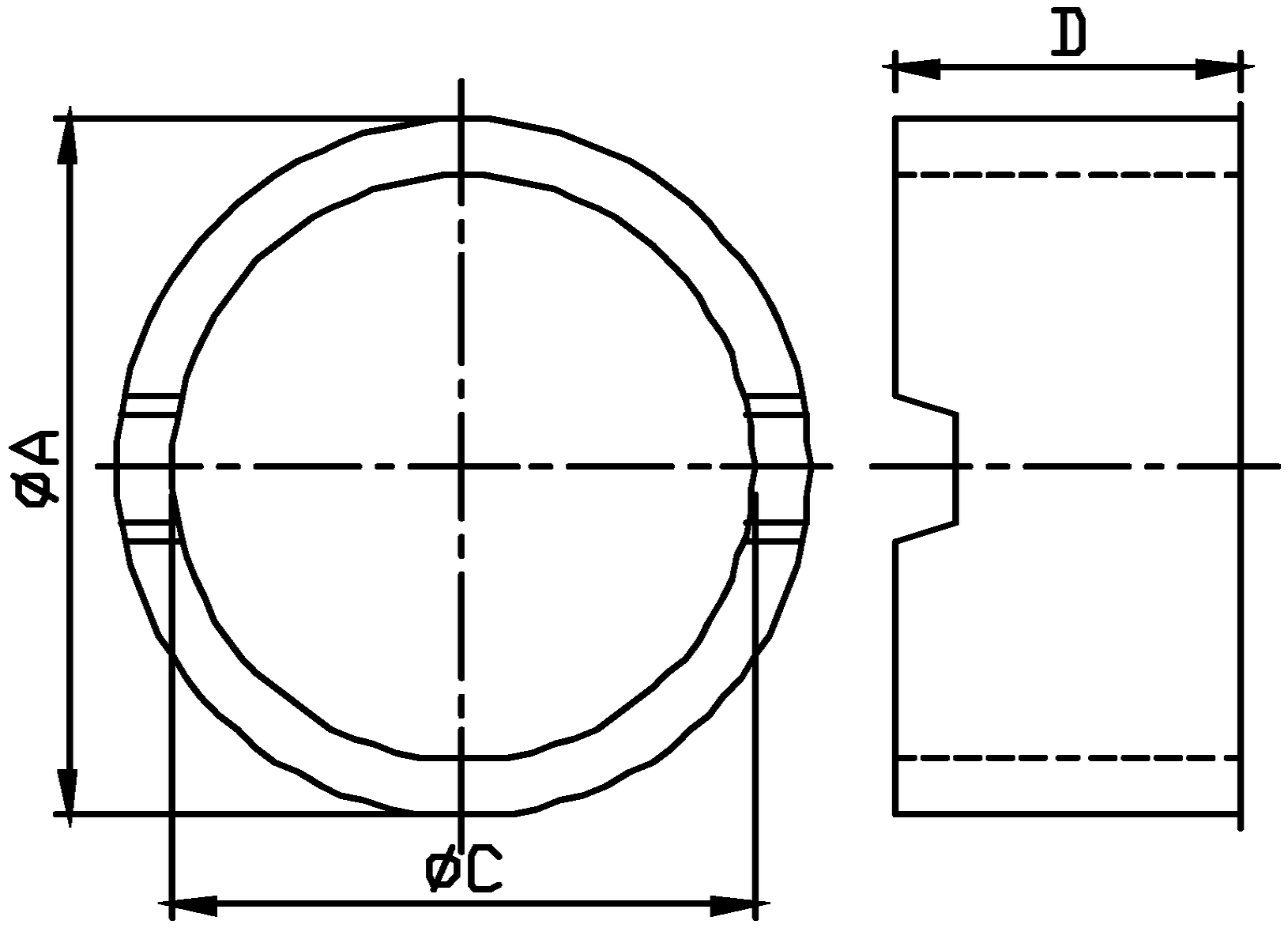

Fig.2 ＋ Fig.b

Fig.2

Fig.b

Product name	Dimensions · mm (nominal / tolerance)
Product name	Part	A(mm)	C(mm)	D(mm)	B(mm)	E(mm)	F(mm)
RI6.8×5.85×2.3T	RI	6.80±0.15	5.85±0.15	2.30±0.15	—	—	—
DR5.4×2.6	DR	5.40±0.10	—	2.60±0.10	2.30±0.10	0.60±0.15	1.40±0.10
RI6.8×5.85×3.8T	RI	6.80±0.15	5.85±0.15	3.80±0.15	—	—	—
DR4.8×4	DR	4.80±0.10	—	4.00±0.10	2.80±0.10	0.80±0.15	2.40±0.10

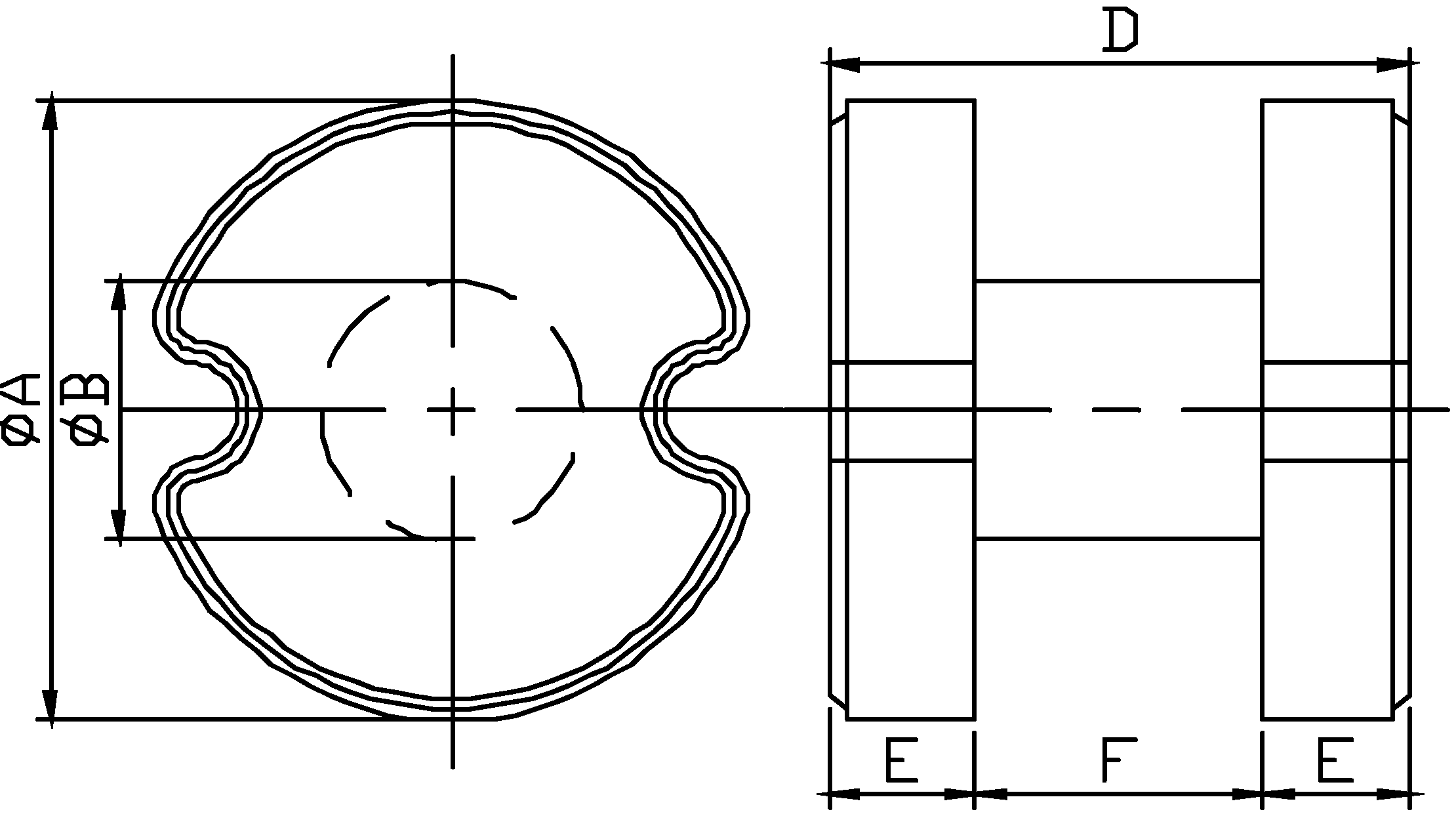

Fig.2 ＋ Fig.a

Fig.2

Fig.a

Product name	Dimensions · mm (nominal / tolerance)
Product name	Part	A(mm)	C(mm)	D(mm)	B(mm)	E(mm)	F(mm)
RI6.8×5.85×2.7T	RI	6.80±0.15	5.85±0.15	2.70±0.15	—	—	—
DR5.4×2.7R	DR	5.40±0.10	—	2.70±0.10	2.20±0.10	0.65±0.15	1.40±0.10
RI6.8×5.85×3.8T	RI	6.80±0.15	5.85±0.15	3.80±0.15	—	—	—
DR5.4×4R	DR	5.40±0.10	—	4.00±0.10	2.20±0.10	0.90±0.15	2.20±0.10
RI6.8×5.85×4.8T	RI	6.80±0.15	5.85±0.15	4.80±0.15	—	—	—
DR5.4×5R	DR	5.40±0.10	—	5.00±0.10	3.00±0.10	0.90±0.15	3.20±0.10
RI6.8×5.85×7.7T	RI	6.80±0.15	5.85±0.15	7.70±0.15	—	—	—
DR5.4×7.7R	DR	5.40±0.10	—	7.70±0.10	3.30±0.10	0.75±0.15	6.20±0.10

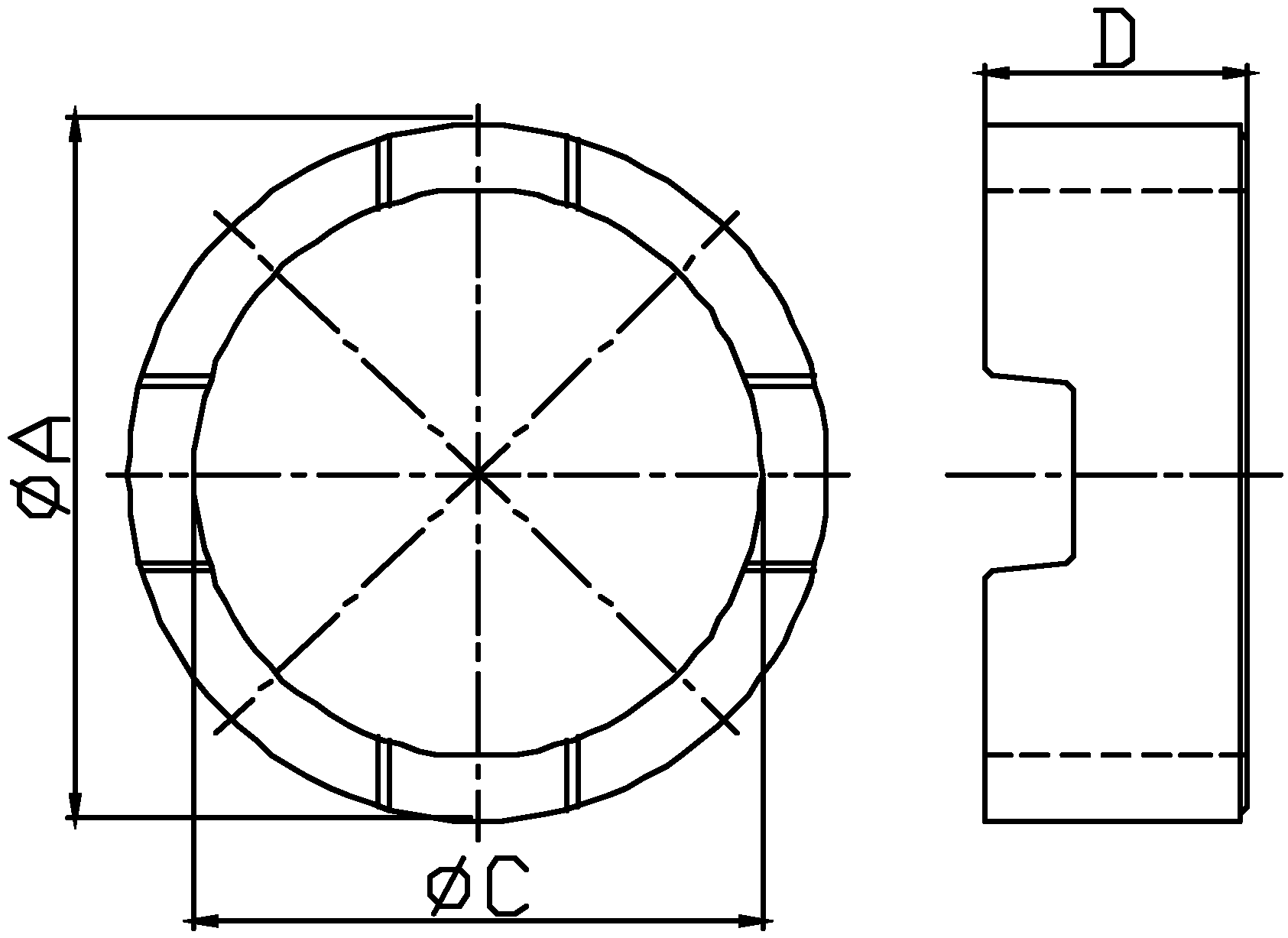

Fig.1 ＋ Fig.a

Fig.1

Fig.a

Product name	Dimensions · mm (nominal / tolerance)
Product name	Part	A(mm)	C(mm)	D(mm)	B(mm)	E(mm)	F(mm)
RI7.6×6.72×2.2T	RI	7.60±0.15	6.72±0.15	2.20±0.15	—	—	—
DR5.6×2.6R	DR	5.60±0.10	—	2.60±0.10	2.50±0.10	0.70±0.15	1.20±0.10

Fig.1 ＋ Fig.b

Fig.1

Fig.b

Product name	Dimensions · mm (nominal / tolerance)
Product name	Part	A(mm)	C(mm)	D(mm)	B(mm)	E(mm)	F(mm)
RI12.3×10.6×7.1	RI	12.30±0.20	10.60±0.20	7.10±0.15	—	—	—
DR9.85×7.1	DR	9.85±0.15	—	7.10±0.15	6.20±0.15	1.10±0.15	4.90±0.15
RI12.4×10.72×5.4	RI	12.40±0.20	10.72±0.20	5.40±0.15	—	—	—
DR10×5.2	DR	10.00±0.15	—	5.20±0.15	5.20±0.15	1.10±0.15	3.00±0.15
RI12.4×10.72×7.25	RI	12.40±0.20	10.72±0.20	7.25±0.15	—	—	—
DR10×7.1	DR	10.00±0.15	—	7.10±0.15	6.20±0.15	1.10±0.15	4.90±0.15
