TAK Technology
NiZn · 1 shape groups · 16 part numbers · Catalogue p. 173–173
CPU CHOKE｜ R CORESMD

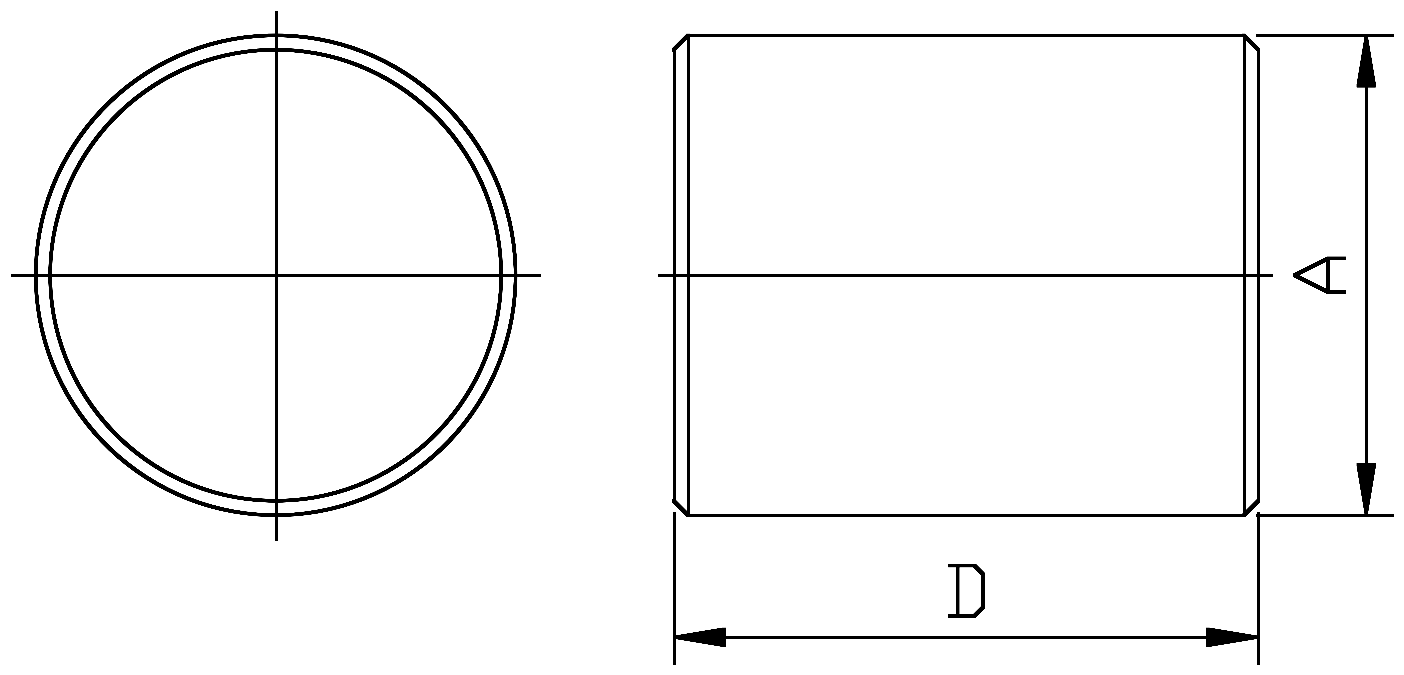

Outline drawing
| Product name | Dimensions · mm (nominal / tolerance) | |
|---|---|---|
| A(mm) | D(mm) | |
| R3×5.15G | 3.00±0.10 | 5.15±0.05 |
| R3.5×3.9G | 3.50±0.10 | 3.90±0.05 |
| R4×5.1 | 4.00±0.10 | 5.10±0.10 |
| R4.3×4.05 | 4.30±0.10 | 4.05±0.10 |
| R4.5×4.25 | 4.50+0.05/-0.10 | 4.25±0.10 |
| R4.7×5.45G | 4.70±0.10 | 5.45+0.05/-0.10 |
| R4.8×3.9 | 4.80±0.10 | 3.90±0.10 |
| R4.9×6.4 | 4.90+0.05/-0.10 | 6.40±0.10 |
| R5×4.15G | 5.00±0.10 | 4.15±0.05 |
| R5.2×7.15G | 5.20±0.10 | 7.15+0.10/-0.05 |
| R5.3×7.1 | 5.30±0.10 | 7.10±0.10 |
| R5.5×6.8 | 5.50±0.10 | 6.80±0.10 |
| R5.8×7.65 | 5.80±0.10 | 7.65±0.10 |
| R6×7.35G | 6.00±0.10 | 7.35±0.05 |
| R6.1×9.1G | 6.10±0.10 | 9.10±0.05 |
| R7×7.2 | 7.00±0.10 | 7.20±0.10 |
Note: Dimension D is adjustable; G denotes a ground surface.
