NiZn · 5 shape groups · 10 sets · Catalogue p. 148–149
SRI+DR5SMD

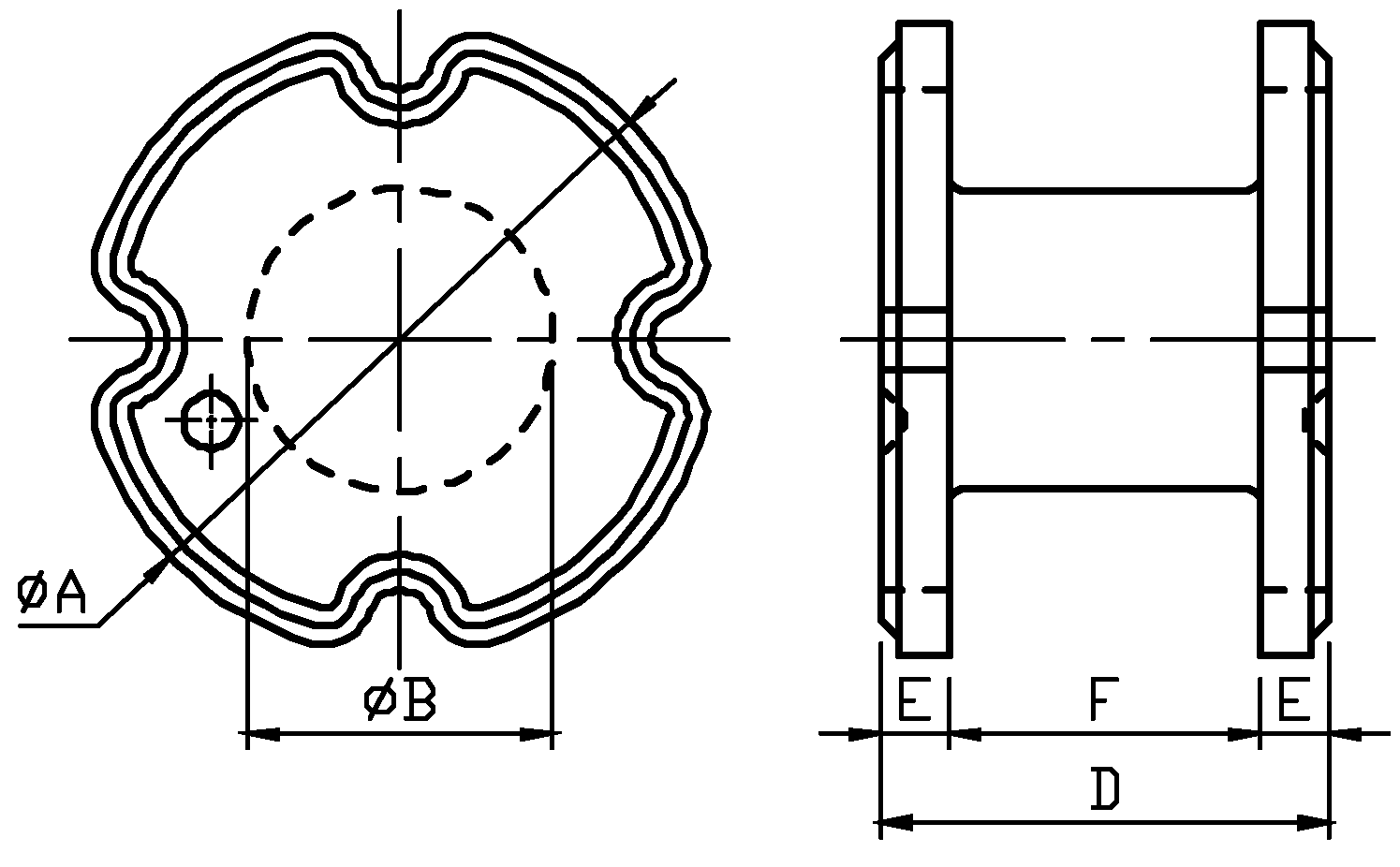

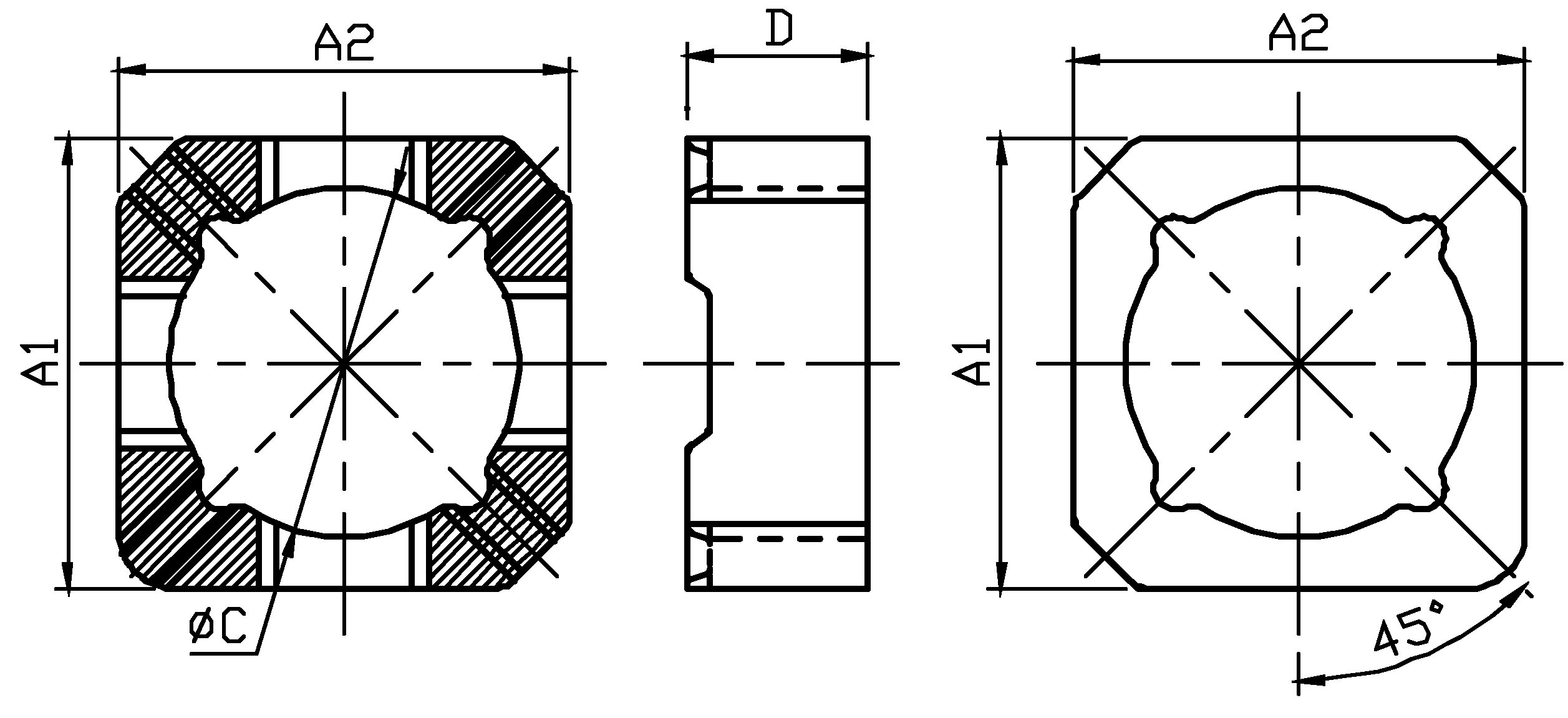

Fig.2 ＋ Fig.b
Fig.2 ＋ Fig.bShape group 01 / 051 sets
Fig.b
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| Part | A/A1(mm) | A2(mm) | C(mm) | D(mm) | A(mm) | B(mm) | E(mm) | F(mm) |
|---|
| SRI4.0×3.1×1.6C | SRI | 4.00±0.15 | 4.00±0.15 | 3.10±0.15 | 1.60±0.15 | — | — | — | — |
| DR2.8×1.4RP | DR | — | — | — | 1.40±0.10 | 2.80±0.10 | 1.30±0.10 | 0.35±0.10 | 0.70±0.10 |

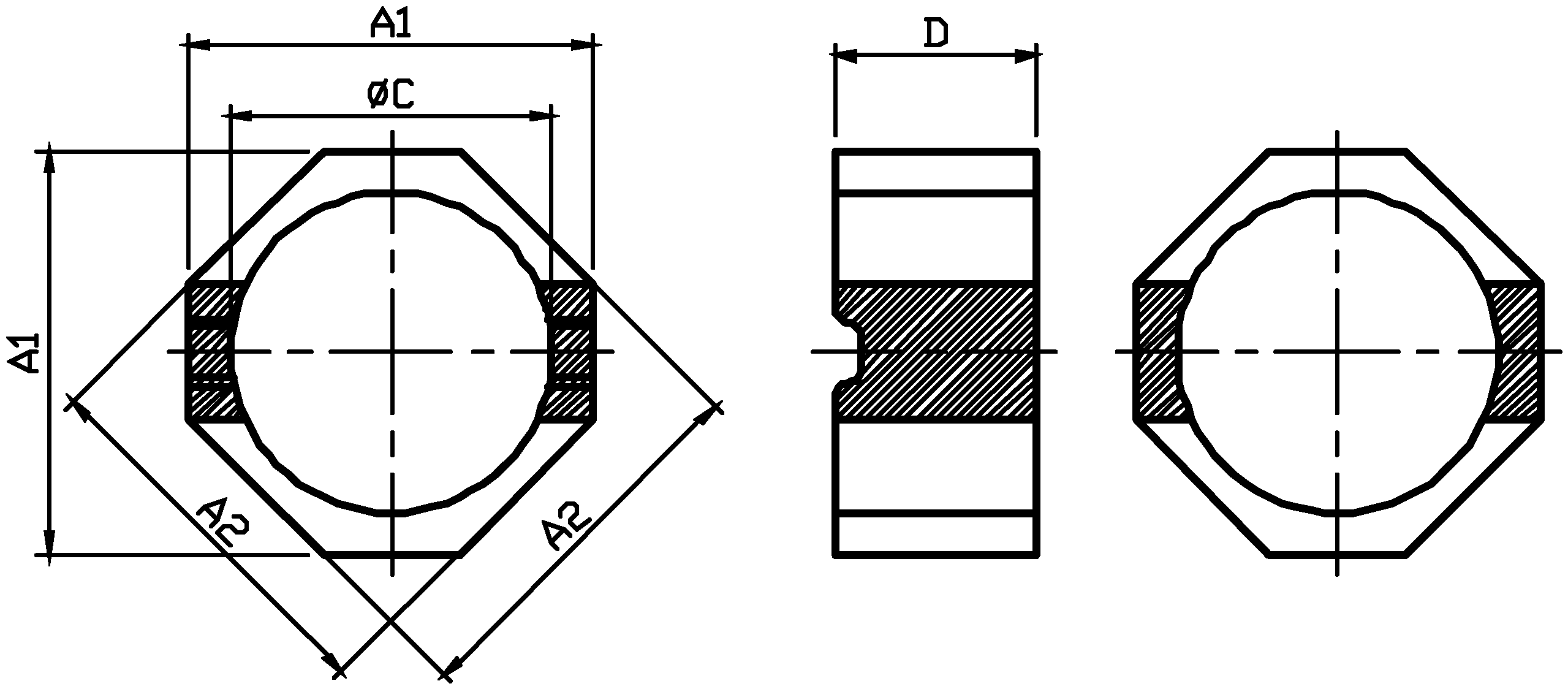

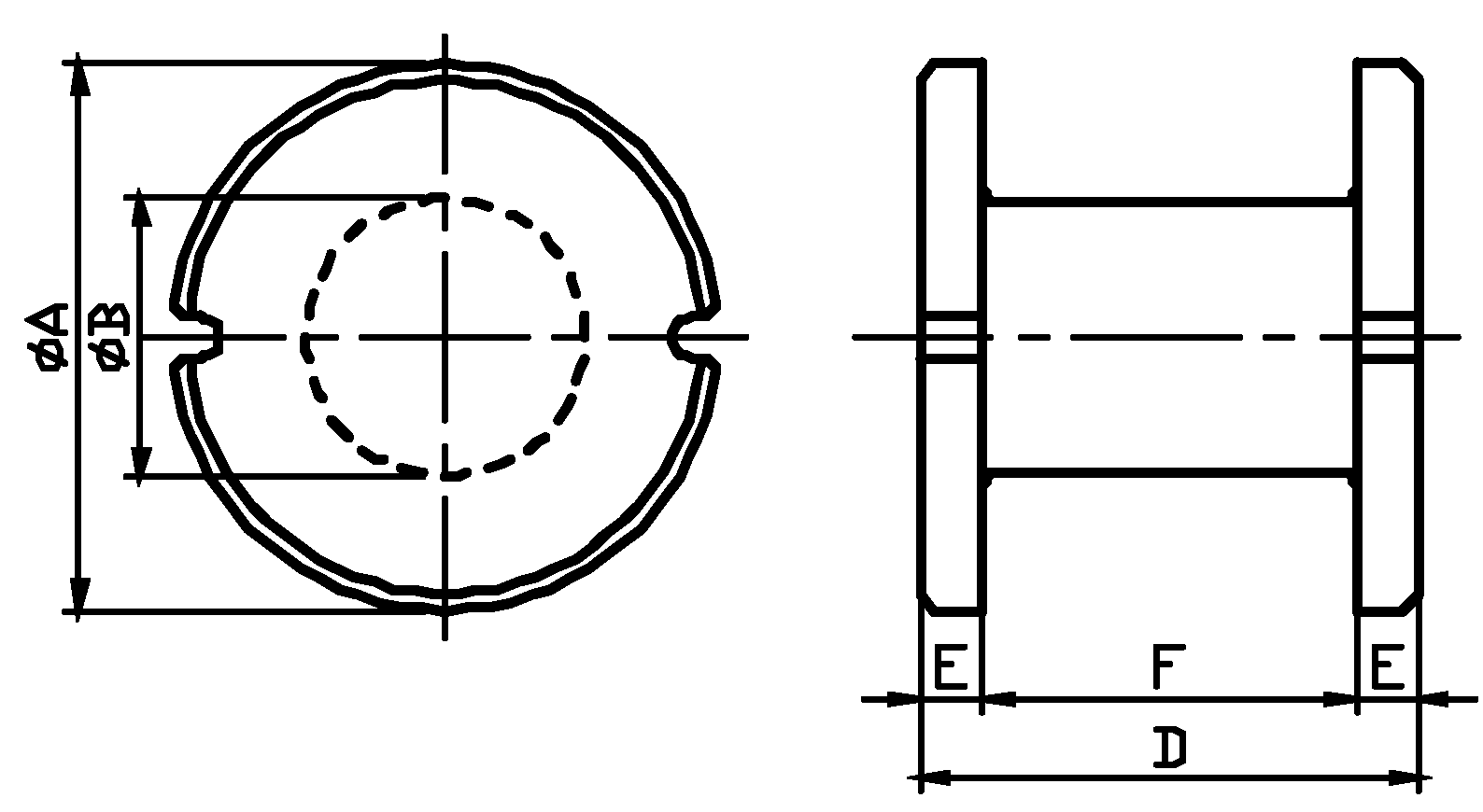

Fig.1 ＋ Fig.a
Fig.1 ＋ Fig.aShape group 02 / 051 sets
Fig.a
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| Part | A/A1(mm) | A2(mm) | C(mm) | D(mm) | A(mm) | B(mm) | E(mm) | F(mm) |
|---|
| SRI5.1×4.2×2.7TC | SRI | 5.40±0.15 | 5.10±0.15 | 4.20+0.15/-0.10 | 2.70±0.15 | — | — | — | — |
| DR3.9×2.7R | DR | — | — | — | 2.70±0.15 | 3.90+0.10/-0.15 | 2.50±0.10 | 0.50ref | 1.70±0.10 |

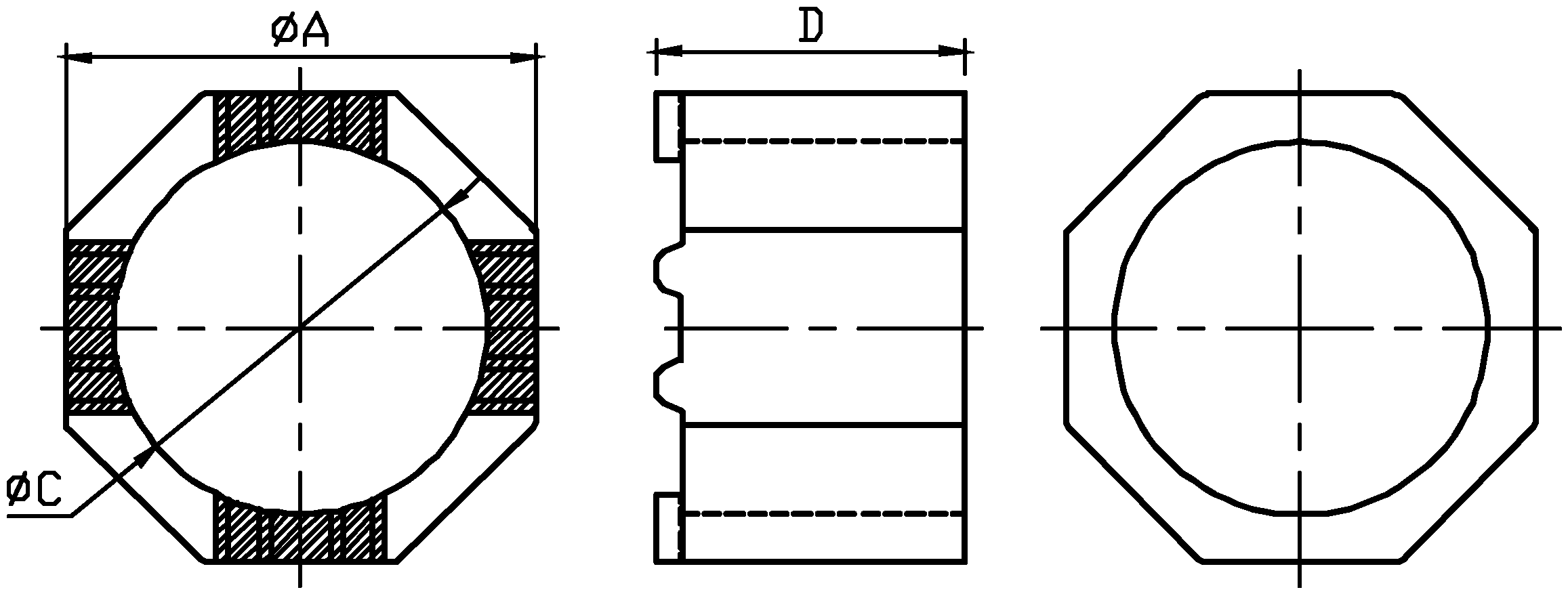

Fig.3 ＋ Fig.a
Fig.3 ＋ Fig.aShape group 03 / 051 sets
Fig.a | Product name | Dimensions · mm (nominal / tolerance) |
|---|
| Part | A/A1(mm) | A2(mm) | C(mm) | D(mm) | A(mm) | B(mm) | E(mm) | F(mm) |
|---|
| SRI10×7.9×6.6C4 | SRI | 10.00±0.15 | / | 7.90+0.15/-0.05 | 6.60±0.10 | — | — | — | — |
| DR7.5×6.35R | DR | — | — | — | 6.35±0.10 | 7.50±0.10 | 5.00±0.10 | 0.75±0.08 | 4.85±0.10 |

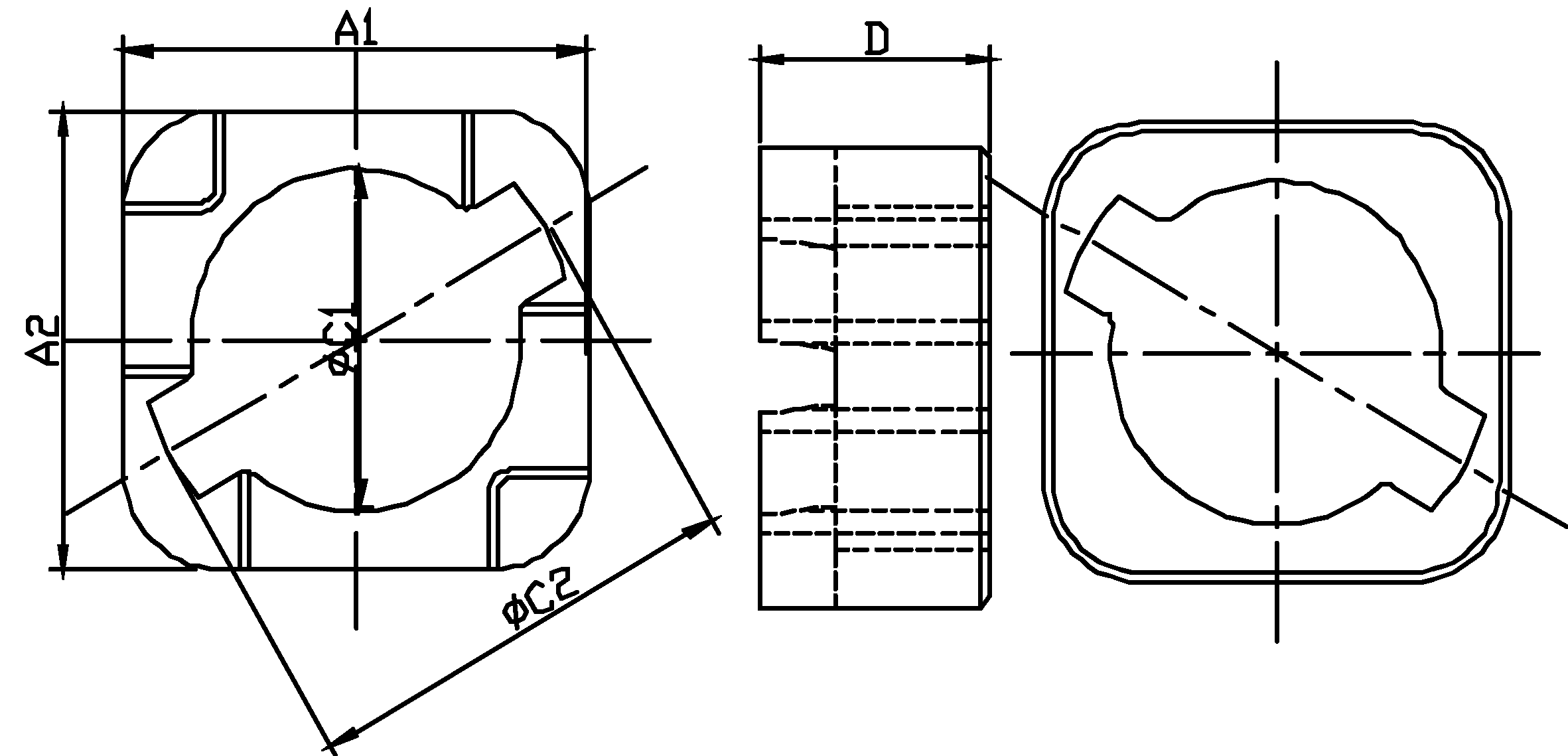

Fig.4 ＋ Fig.c
Fig.4 ＋ Fig.cShape group 04 / 055 sets
Fig.c
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| Part | A1(mm) | A2(mm) | C1(mm) | C2(mm) | D(mm) | A(mm) | B(mm) | E(mm) | F(mm) |
|---|
| SRI6.2×4.4×1.9D | SRI | 6.20±0.15 | 5.90±0.20 | 4.40±0.20 | 5.40±0.20 | 1.90±0.15 | — | — | — | — |
| DR4×1.8 | DR | — | — | — | — | 1.80±0.15 | 4.00±0.10 | 1.60±0.10 | 0.40±0.15 | 1.00±0.15 |
| SRI6.2×4.4×1.9D | SRI | 6.20±0.15 | 5.90±0.20 | 4.40±0.20 | 5.40±0.20 | 1.90±0.15 | — | — | — | — |
| DR4×2 | DR | — | — | — | — | 2.00±0.15 | 4.00±0.10 | 1.60±0.10 | 0.50±0.15 | 1.00±0.15 |
| SRI6.2×4.4×2.3D | SRI | 6.20±0.15 | 5.90±0.20 | 4.40±0.20 | 5.40±0.20 | 2.30±0.15 | — | — | — | — |
| DR4×2.4 | DR | — | — | — | — | 2.40±0.15 | 4.00±0.10 | 2.00±0.10 | 0.55±0.15 | 1.30±0.15 |
| SRI6.2×4.4×4.1S | SRI | 6.20±0.15 | 5.90±0.20 | 4.40±0.20 | 5.40±0.20 | 4.10±0.15 | — | — | — | — |
| DR4×4.2 | DR | — | — | — | — | 4.20±0.15 | 4.00±0.10 | 2.10±0.10 | 0.60±0.15 | 3.00±0.15 |
| SRI6.2×4.4×4.3D | SRI | 6.20±0.15 | 5.90±0.20 | 4.40±0.20 | 5.40±0.20 | 4.30±0.15 | — | — | — | — |
| DR4×4.4 | DR | — | — | — | — | 4.40±0.15 | 4.00±0.10 | 2.40±0.10 | 0.60±0.15 | 3.20±0.15 |

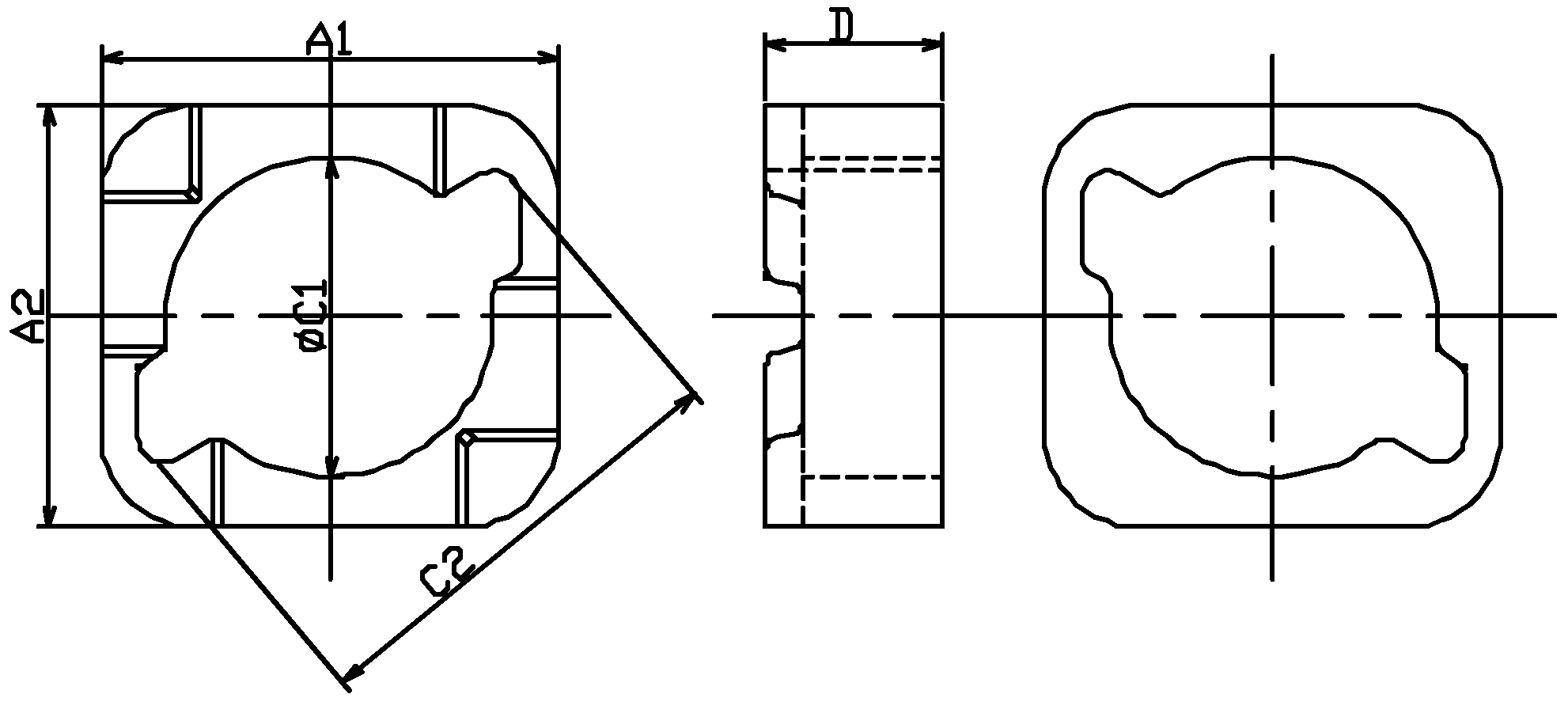

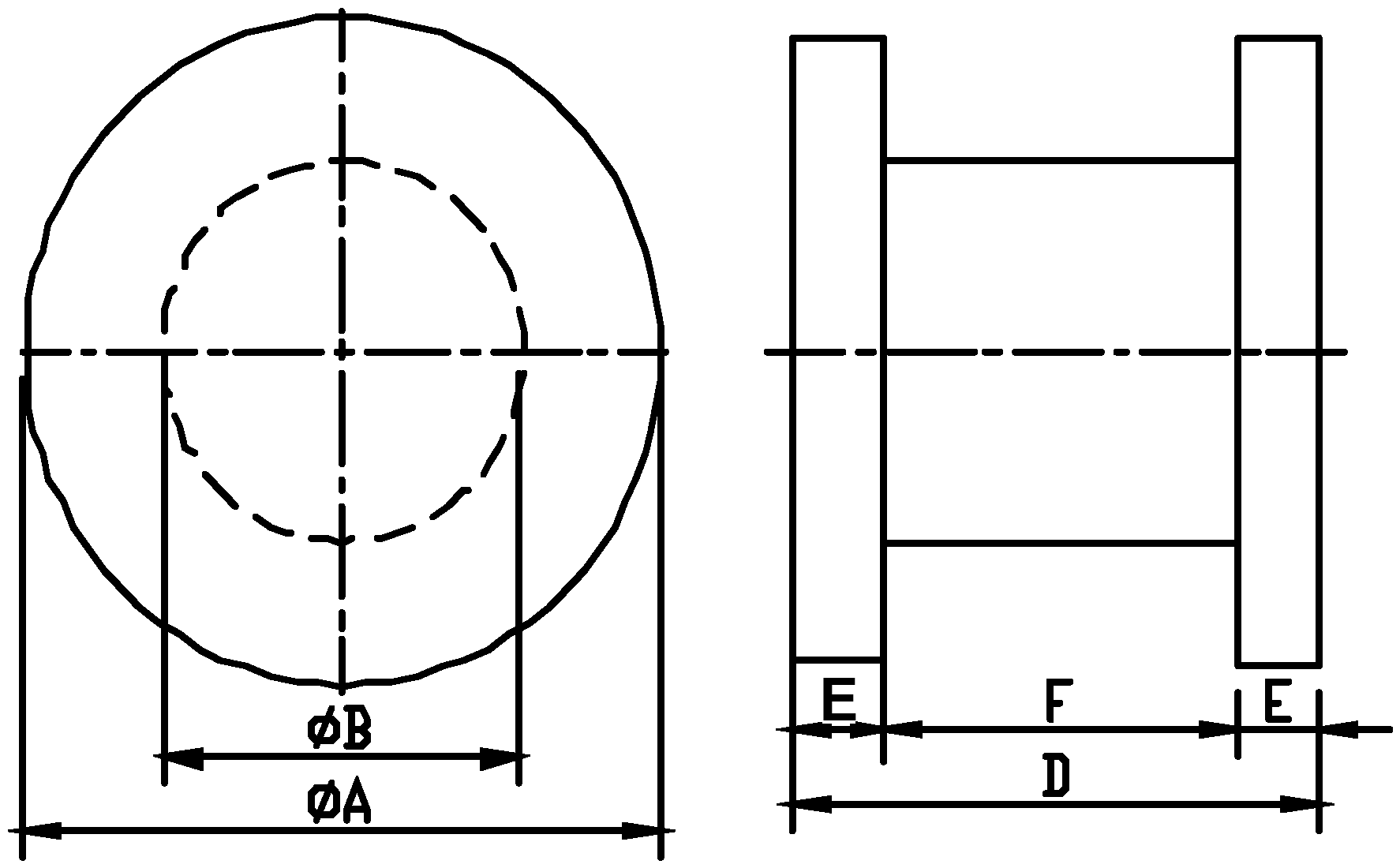

Fig.5 ＋ Fig.c
Fig.5 ＋ Fig.cShape group 05 / 052 sets
Fig.c | Product name | Dimensions · mm (nominal / tolerance) |
|---|
| Part | A1(mm) | A2(mm) | C1(mm) | C2(mm) | D(mm) | A(mm) | B(mm) | E(mm) | F(mm) |
|---|
| SRI6.2×4.4×2.4X | SRI | 6.20±0.15 | 5.90±0.20 | 4.40±0.20 | 6.22±0.20 | 2.40±0.15 | — | — | — | — |
| DR4×2.5 | DR | — | — | — | — | 2.50±0.15 | 4.00±0.10 | 2.00±0.10 | 0.60±0.15 | 1.30±0.15 |
| SRI6.2×4.4×4.2X | SRI | 6.20±0.15 | 5.90±0.20 | 4.40±0.20 | 6.22±0.20 | 4.20±0.15 | — | — | — | — |
| DR4×4.3 | DR | — | — | — | — | 4.30±0.15 | 4.00±0.10 | 2.30±0.10 | 0.60±0.15 | 3.10±0.15 |
Note: For Fig.a/b parts, B, D, E and F are adjustable; for Fig.1/2/3 parts, D is adjustable.
