NiZn · 4 shape groups · 5 part numbers · Catalogue p. 122–122
SMBEMI

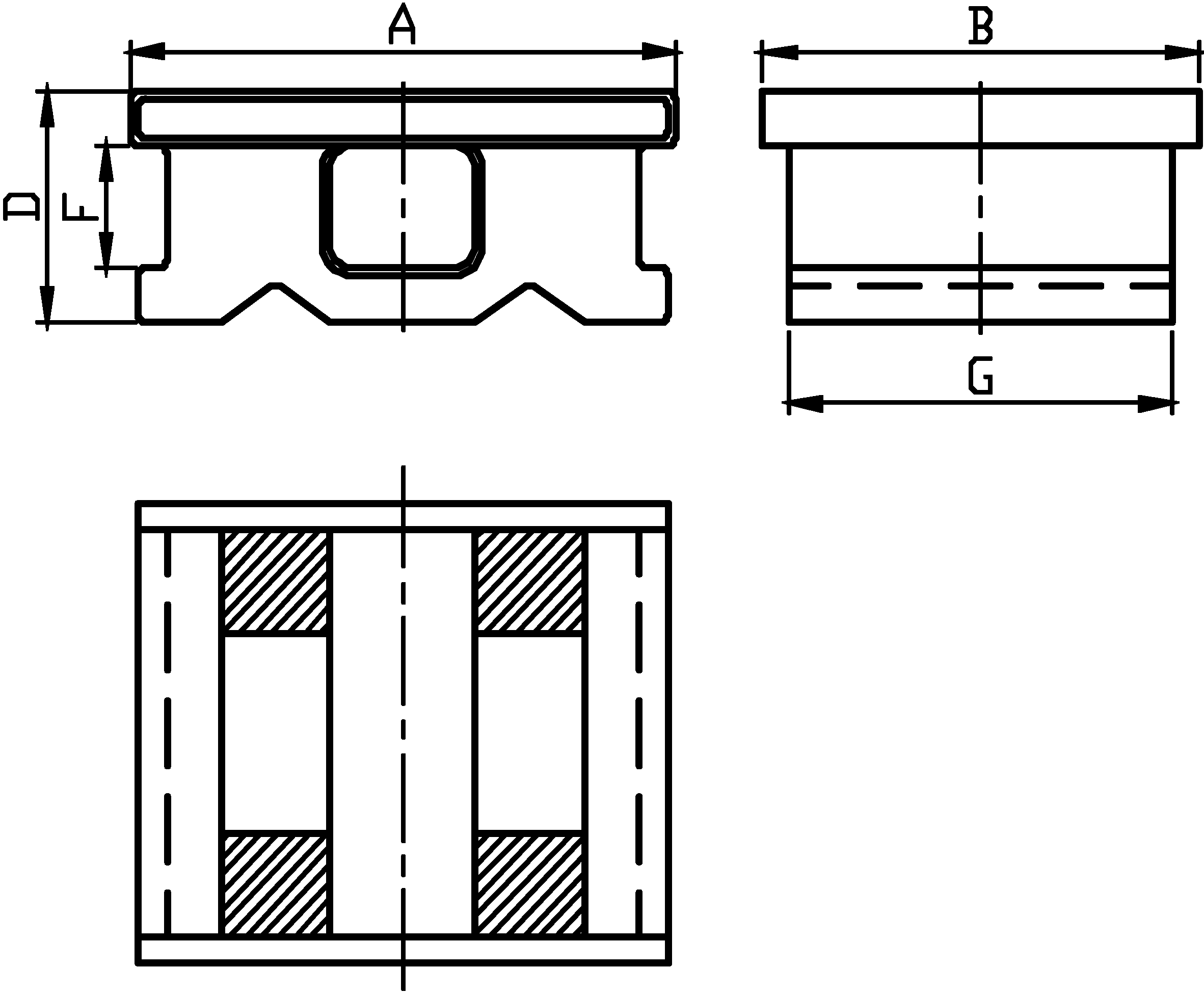

Outline drawing
Outline drawingShape group 01 / 041 part numbers
Fig.1
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| A(mm) | B(mm) | D(mm) | F(mm) | G(mm) |
|---|
| SMB7.5×6×3C | 7.50±0.30 | 6.00±0.30 | 3.00±0.20 | 1.60±0.15 | 5.30±0.20 |

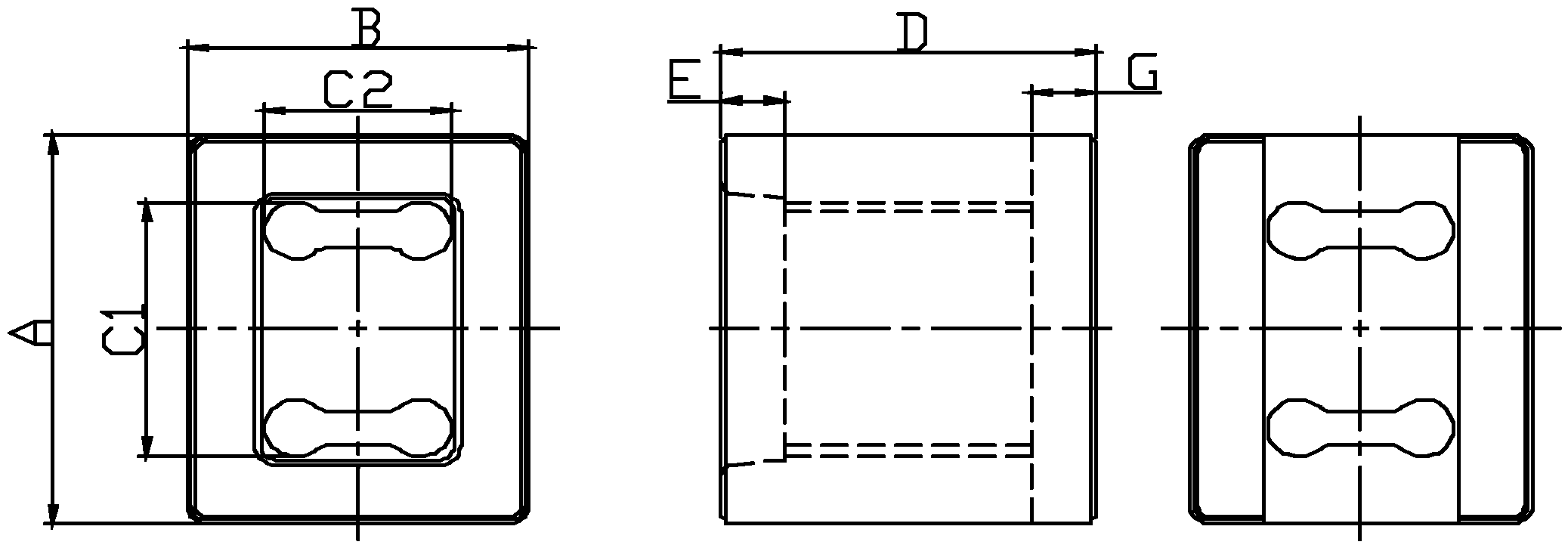

Fig.2
Fig.2Shape group 02 / 041 part numbers
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| A(mm) | B(mm) | C1(mm) | C2(mm) | D(mm) | E(mm) | G(mm) | GAP(mm) |
|---|
| SMB11×8.8×9.6T | 11.00±0.20 | 8.80±0.20 | 7.20±0.15 | 4.80±0.15 | 9.60±0.15 | 1.00±0.15 | 1.50±0.15 | / |
Fig.1
Fig.1Shape group 03 / 042 part numbers | Product name | Dimensions · mm (nominal / tolerance) |
|---|
| A(mm) | B(mm) | C1(mm) | C2(mm) | D(mm) | E(mm) | G(mm) | GAP(mm) |
|---|
| SMB13.72×10.41×15.24 GAP0.55 | 13.72±0.20 | 10.41±0.20 | 9.80±0.15 | 6.48±0.15 | 15.24±0.25 | 0.30±0.10 | 1.15±0.10 | 0.55ref |
| SMB13.72×10.41×15.8 GAP0.55 | 13.72±0.20 | 10.41±0.20 | 9.80±0.15 | 6.48±0.15 | 15.80±0.25 | 0.30±0.10 | 1.15±0.10 | 0.55ref |

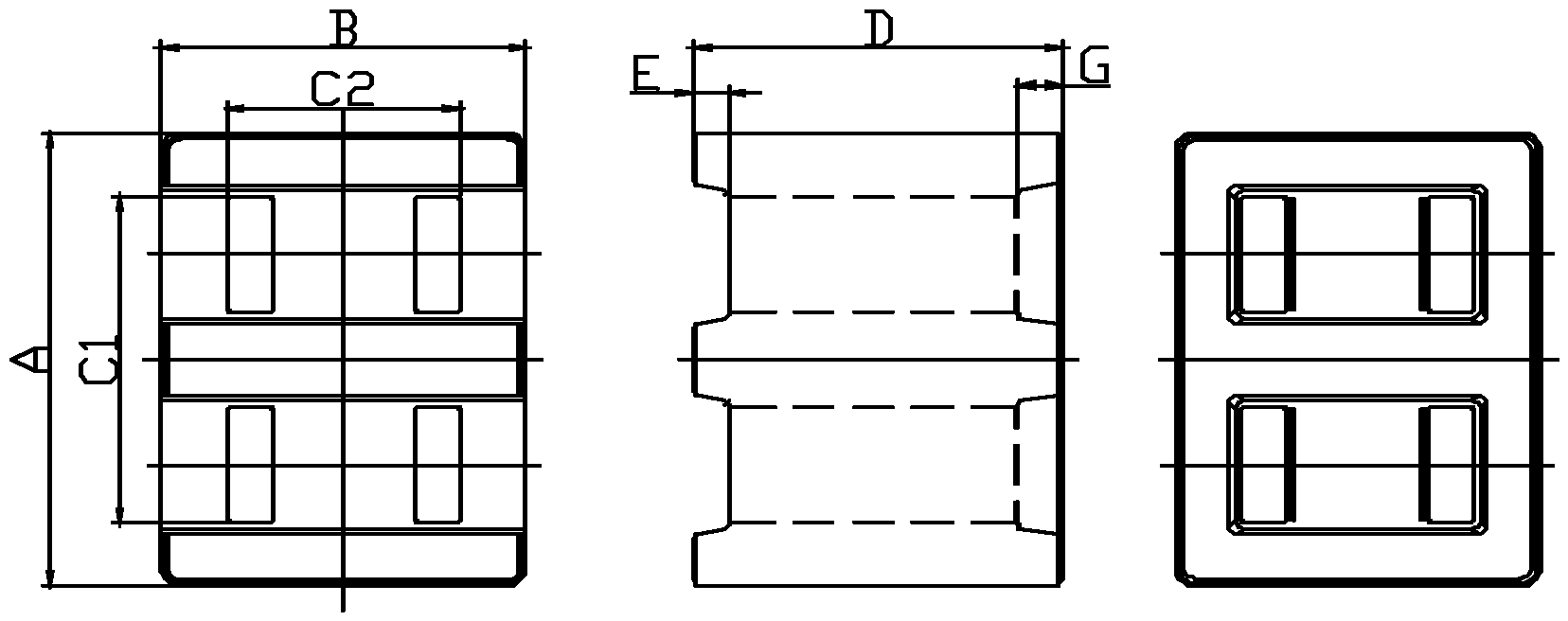

Fig.3
Fig.3Shape group 04 / 041 part numbers
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| A(mm) | B(mm) | C1(mm) | C2(mm) | D(mm) | E(mm) | G(mm) | GAP(mm) |
|---|
| SMB13.72×10.41×10.52 | 13.72±0.20 | 10.41±0.20 | 9.80±0.15 | 6.60±0.15 | 10.52±0.15 | 1.00±0.15 | 1.30±0.15 | / |
