NiZn · 3 shape groups · 4 part numbers · Catalogue p. 126–126
OTEMI

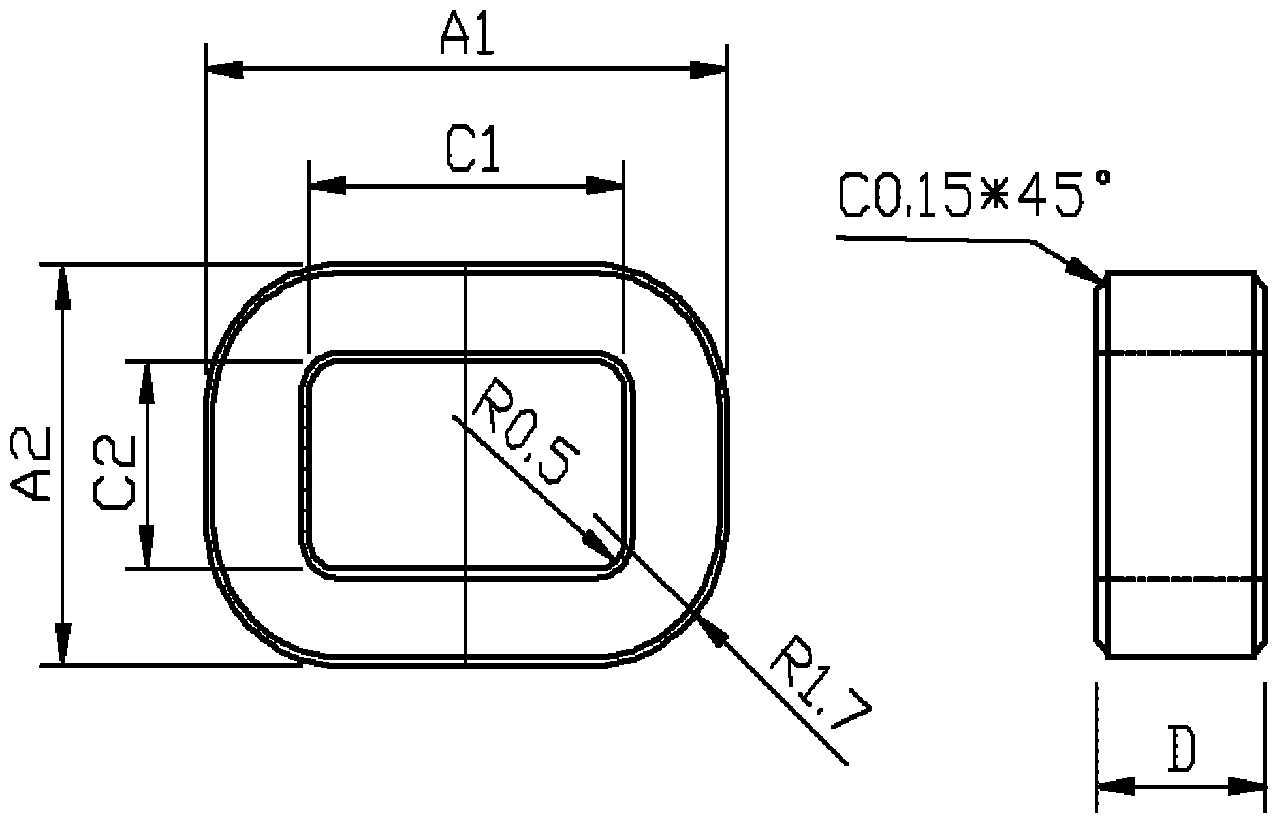

Fig.1
Fig.1Shape group 01 / 032 part numbers
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| A1(mm) | A2(mm) | C1(mm) | C2(mm) | D(mm) |
|---|
| OT6.9×4.75×2.3 | 6.90±0.10 | 4.60±0.10 | 4.50±0.10 | 2.70±0.10 | 2.30±0.10 |
| OT40.62×28.78×20 | 40.62±0.50 | 40.62±0.50 | 28.78±0.40 | 28.78±0.40 | 20.00±0.40 |

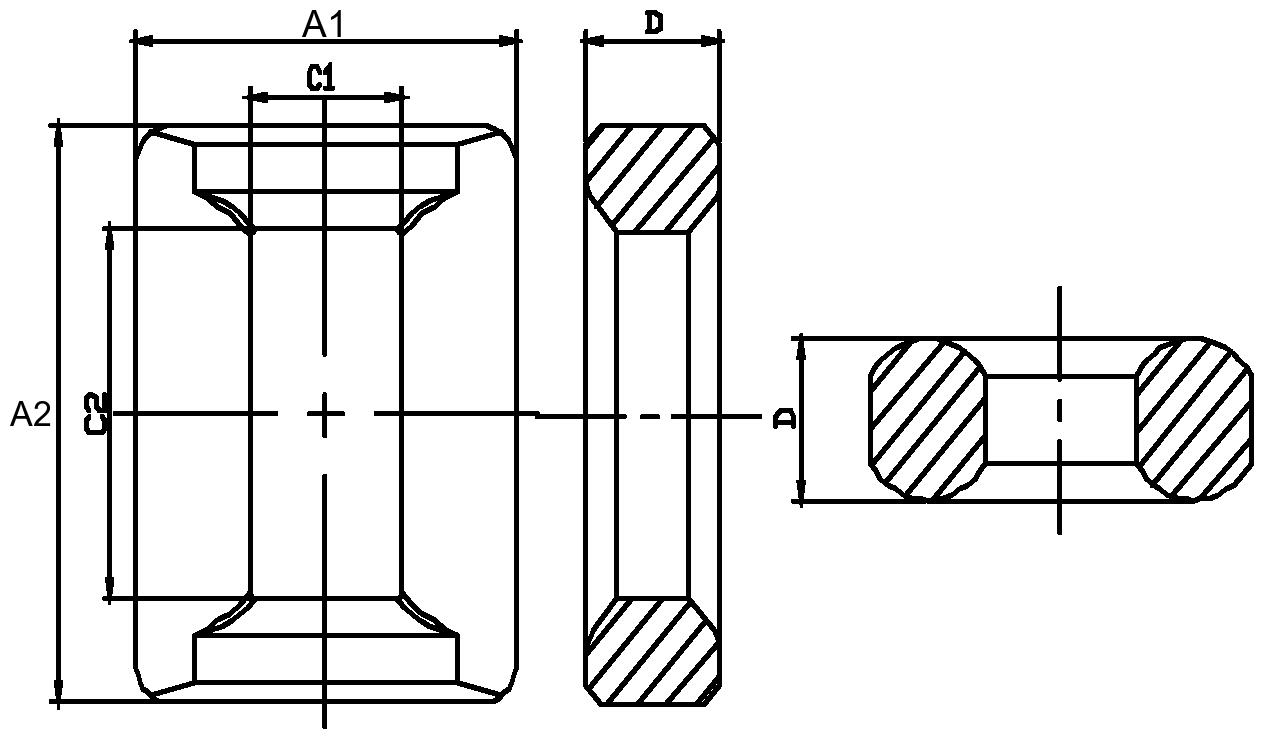

Fig.2
Fig.2Shape group 02 / 031 part numbers
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| A1(mm) | A2(mm) | C1(mm) | C2(mm) | D(mm) |
|---|
| OT8.6×10.7×3.0 | 8.60±0.20 | 10.70±0.20 | 3.45±0.20 | 6.80±0.20 | 3.00±0.20 |

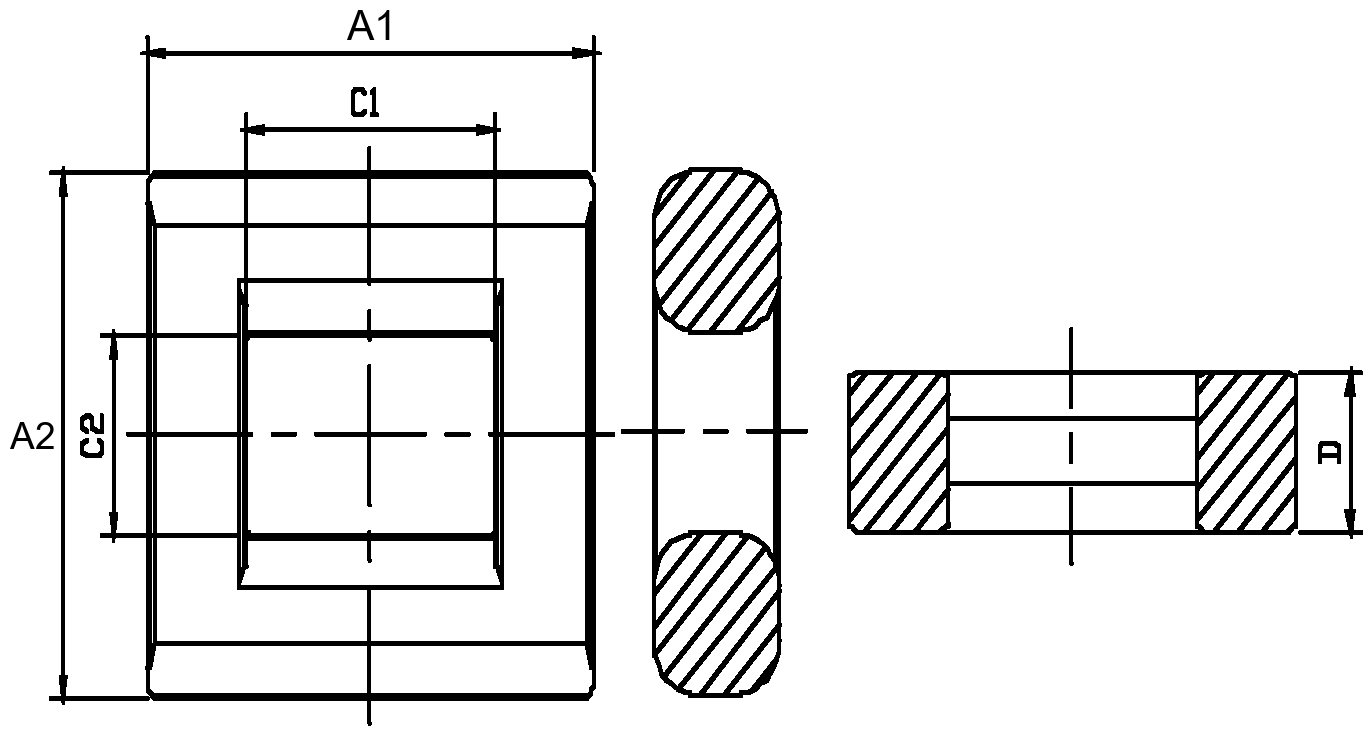

Fig.3
Fig.3Shape group 03 / 031 part numbers
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| A1(mm) | A2(mm) | C1(mm) | C2(mm) | D(mm) |
|---|
| OTC22.65×21×6.45 | 22.95±0.35 | 21.30±0.35 | 12.40±0.25 | 7.70±0.25 | 6.75±0.25 |
