NiZn · 4 shape groups · 6 sets · Catalogue p. 152–152
SRI+DR7SMD

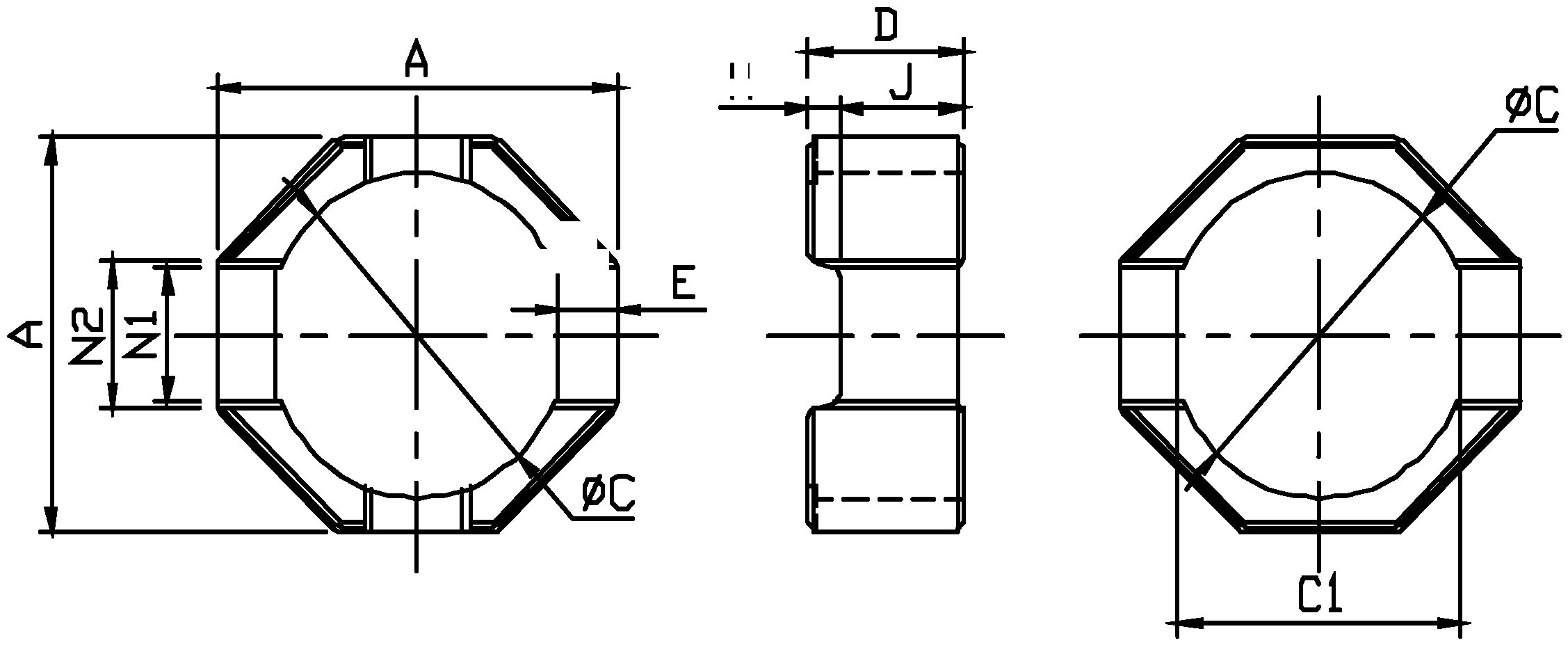

Fig.1 ＋ Fig.c
Fig.1 ＋ Fig.cShape group 01 / 041 sets

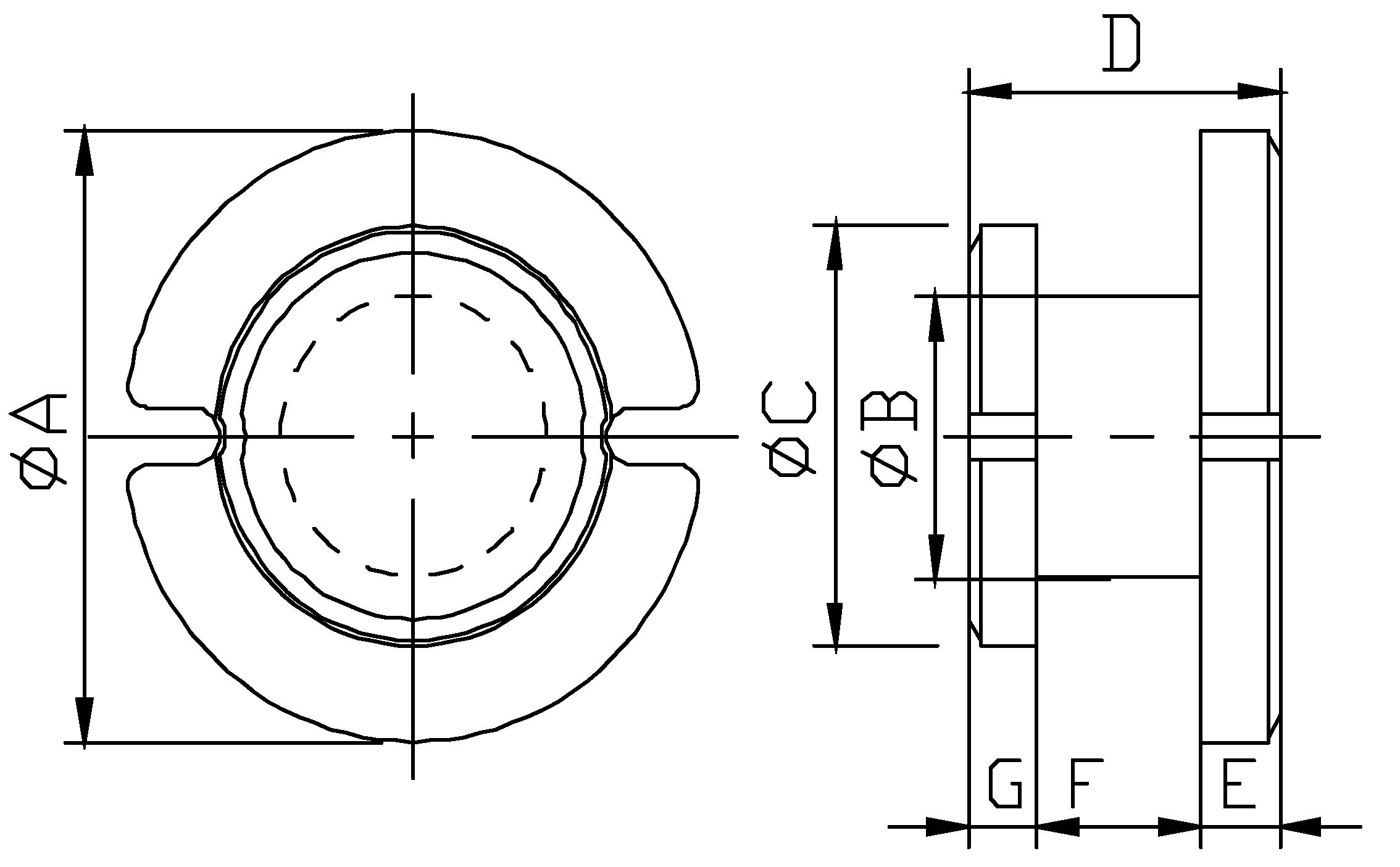

Fig.c
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| Part | A(mm) | C(mm) | C1(mm) | D(mm) | E(mm) | N1/K(mm) | N2/I(mm) | H(mm) | J(mm) | B(mm) | F(mm) | G(mm) |
|---|
| SRI6.9×5.5×2.0T | SRI | 6.90±0.15 | 5.50±0.15 | 5.20±0.15 | 2.00±0.15 | / | 2.50ref | 2.00ref | 0.30ref | / | — | — | — |
| DR6.9×2.6RD-3 | DR | 6.90±0.15 | 4.80±0.10 | — | 2.60±0.15 | 0.60±0.15 | — | — | — | — | 2.80±0.15 | 1.40±0.15 | 0.60±0.15 |

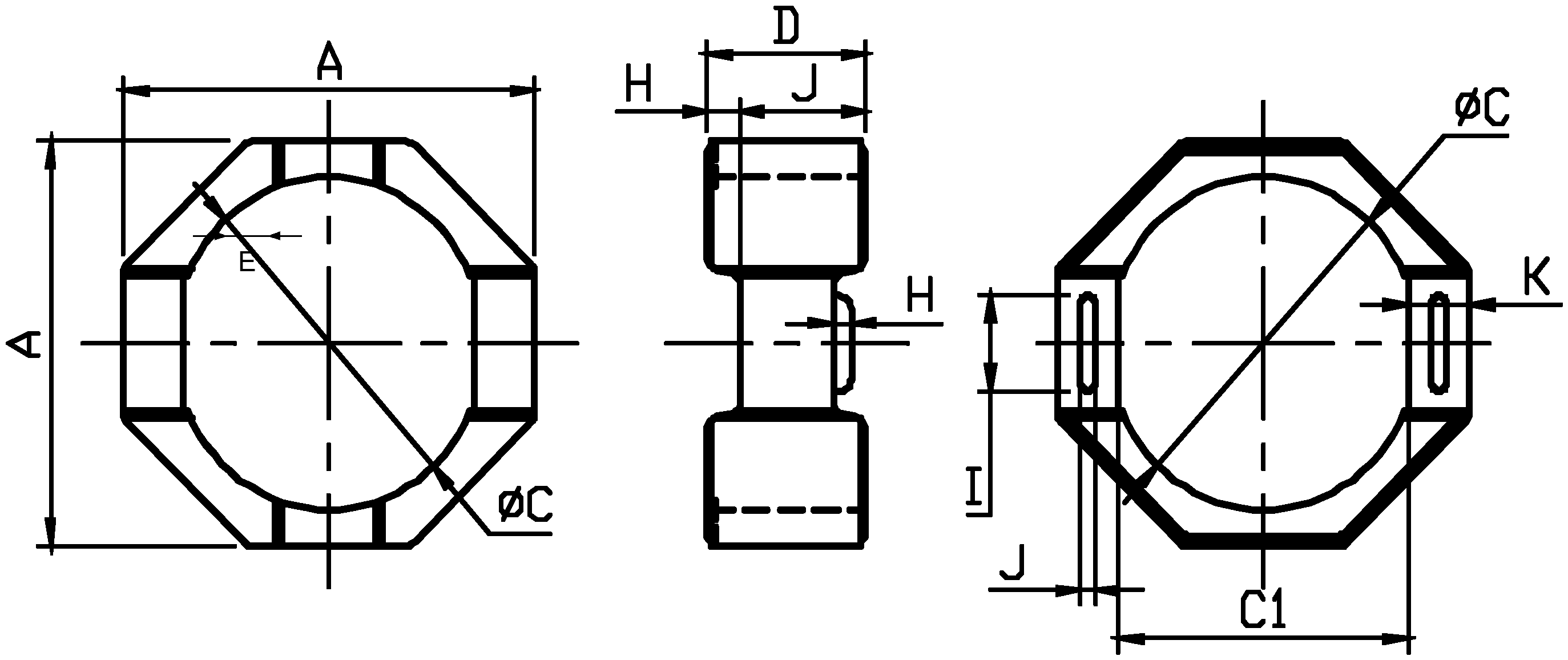

Fig.2 ＋ Fig.a
Fig.2 ＋ Fig.aShape group 02 / 043 sets

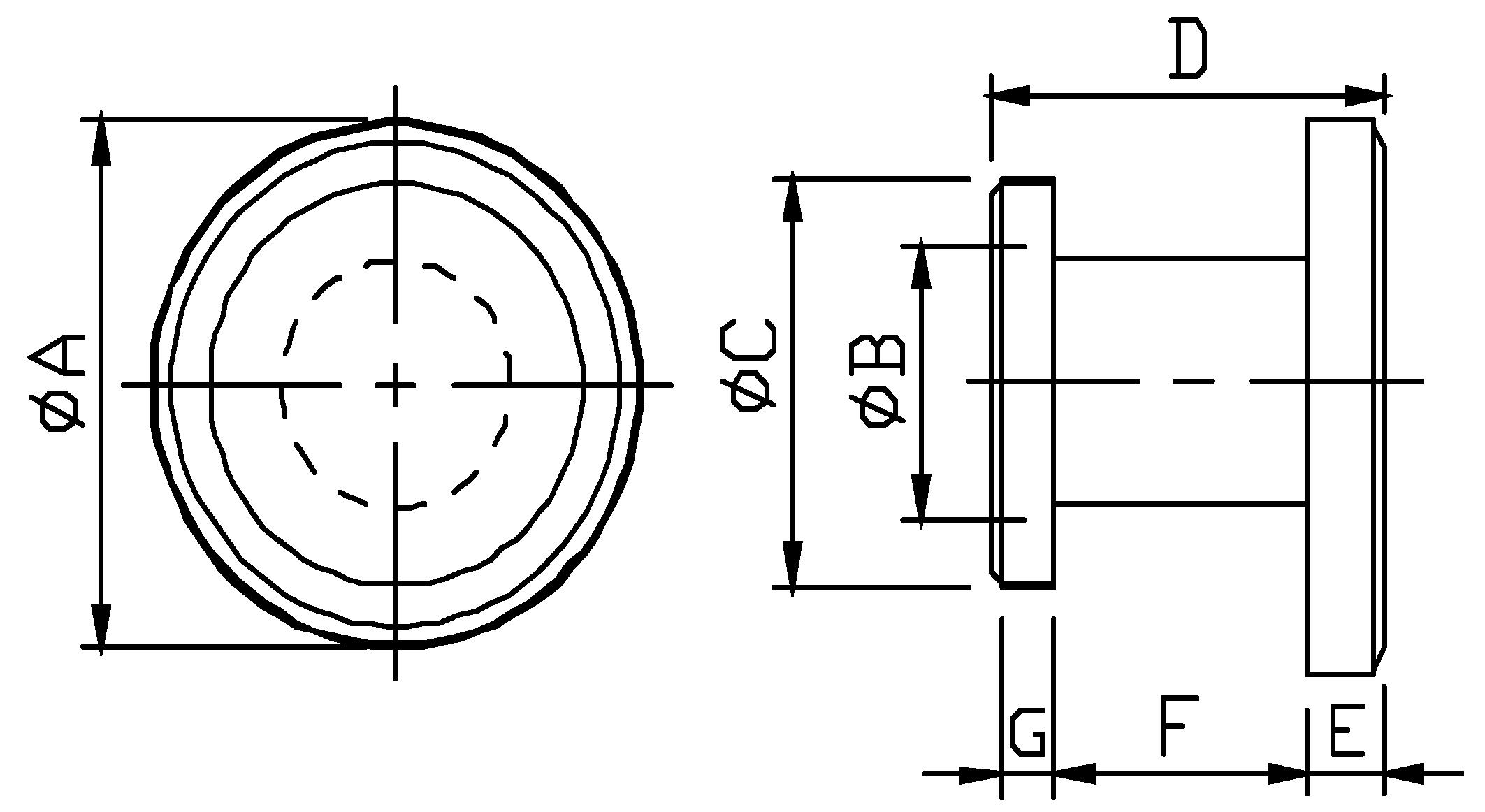

Fig.a
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| Part | A(mm) | C(mm) | C1(mm) | D(mm) | E(mm) | N1/K(mm) | N2/I(mm) | H(mm) | J(mm) | B(mm) | F(mm) | G(mm) |
|---|
| SRI8×6.6×2.1 | SRI | 8.00±0.15 | 6.50±0.15 | 6.30+0.20/-0.15 | 2.10±0.10 | / | 0.95+0.00/-0.20 | 2.10ref | 0.25±0.10 | 0.50ref | — | — | — |
| DR8×2.7D-3 | DR | 8.00±0.15 | 5.80±0.10 | — | 2.70±0.15 | 0.60±0.10 | — | — | — | — | 3.50±0.15 | 1.50±0.10 | 0.60±0.10 |
| SRI8.0×6.5×3.0 | SRI | 8.00±0.15 | 6.60+0.15/-0.05 | 6.30+0.15/-0.05 | 3.00±0.10 | 0.85+0.05/-0.07 | 2.60±0.10 | 2.90±0.10 | 0.80±0.10 | 2.55±0.05 | — | — | — |
| DR8.0×3.8D-3 | DR | 8.00±0.15 | 5.80±0.15 | — | 3.80±0.15 | 0.80±0.15 | — | — | — | — | 3.50±0.15 | 2.20±0.15 | 0.80±0.15 |
| SRI8.15×6.5×2.1B | SRI | 8.15±0.15 | 6.50±0.15 | 6.62±0.15 | 2.10±0.10 | / | 0.80+0.00/-0.10 | 2.10±0.10 | 0.25±0.07 | 0.50ref | — | — | — |
| DR8.0×2.7D-3 C6.0 | DR | 8.00±0.15 | 5.90±0.10 | — | 2.70+0.00/-0.20 | 0.60±0.10 | — | — | — | — | 3.10±0.10 | 1.50±0.10 | 0.50±0.10 |

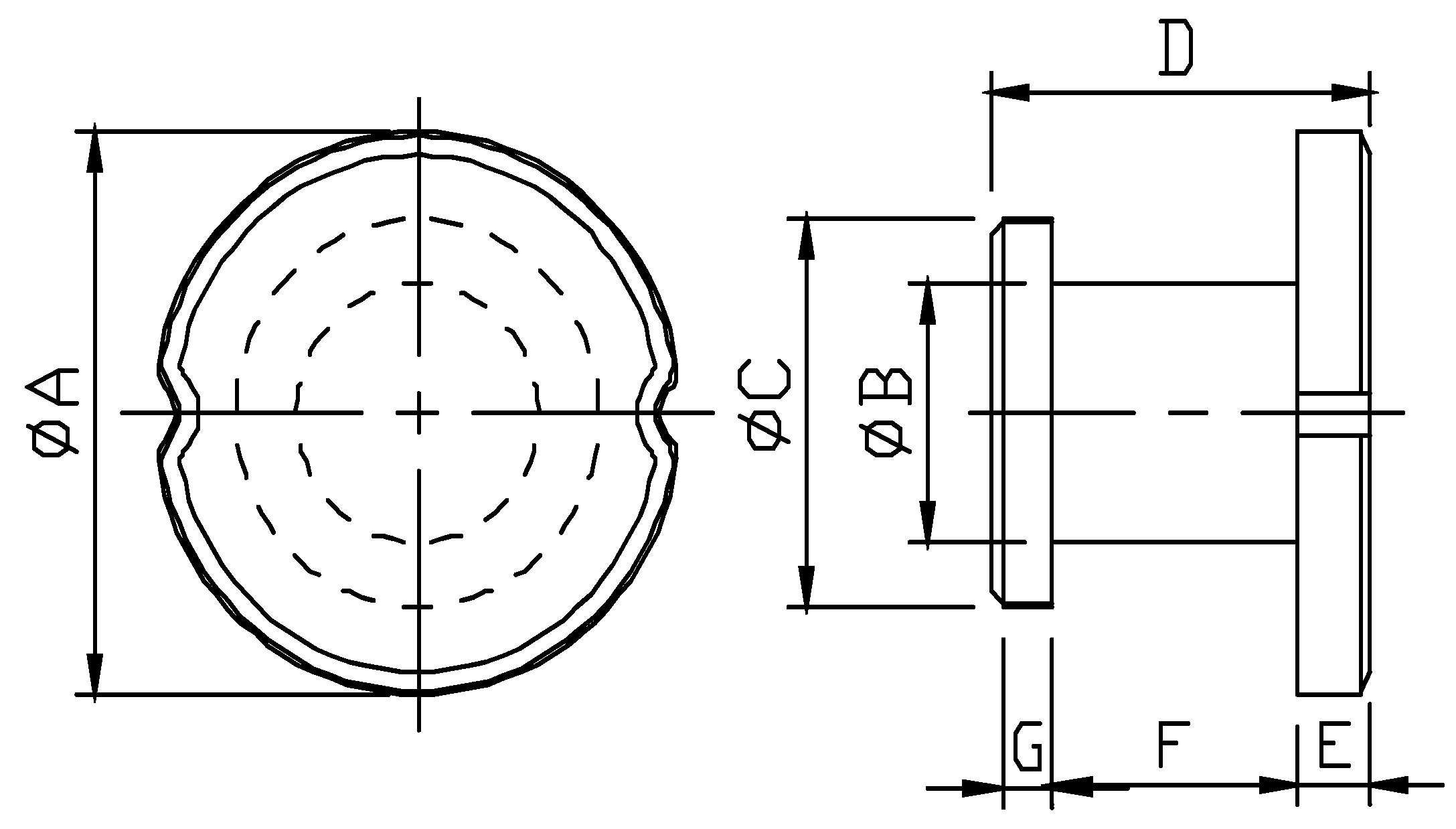

Fig.2 ＋ Fig.b
Fig.2 ＋ Fig.bShape group 03 / 041 setsFig.b
| Product name | Dimensions · mm (nominal / tolerance) |
|---|
| Part | A(mm) | C(mm) | C1(mm) | D(mm) | E(mm) | N1/K(mm) | N2/I(mm) | H(mm) | J(mm) | B(mm) | F(mm) | G(mm) |
|---|
| SRI8×6.6×3.4-6R8 | SRI | 8.00±0.15 | 6.60+0.15/-0.05 | 6.30+0.15/-0.05 | 3.40+0.10/-0.05 | 0.85+0.05/-0.07 | 2.60±0.10 | 2.90±0.10 | 0.80±0.10 | 2.55±0.05 | — | — | — |
| DR8×4.2RD-3K-6R8 | DR | 8.00±0.15 | 5.70±0.08 | — | 4.20+0.05/-0.10 | 0.80±0.10 | — | — | — | — | 4.00±0.15 | 2.60±0.10 | 0.75+0.10/-0.15 |
Fig.1 ＋ Fig.a
Fig.1 ＋ Fig.aShape group 04 / 041 setsFig.a | Product name | Dimensions · mm (nominal / tolerance) |
|---|
| Part | A(mm) | C(mm) | C1(mm) | D(mm) | E(mm) | N1/K(mm) | N2/I(mm) | H(mm) | J(mm) | B(mm) | F(mm) | G(mm) |
|---|
| SRI8×6.6×3.4A | SRI | 8.00±0.15 | 6.60±0.15 | 6.30±0.15 | 3.40+0.15/-0.05 | / | 1.93±0.10 | 2.13±0.10 | 0.85±0.10 | / | — | — | — |
| DR8×4.2D-3C5.9 | DR | 8.00±0.15 | 5.90±0.10 | — | 4.20+0.05/-0.15 | 0.78±0.10 | — | — | — | — | 4.00±0.10 | 2.60±0.10 | 0.78±0.10 |
