NiZn Ferrite · NiZn material specification

M61

HIGH FREQUENCY STABLE MATERIALS

Mid-Frequency InductorEMI Common-Mode ChokeRF Power FilterEMI Suppression Bead

M61 is a NiZn ferrite with an initial permeability (μi) of approx. 100, a saturation flux density (Bs) of approx. 340 mT at 25 °C (280 mT at 100 °C) and a Curie temperature above 300 °C. Its signature is temperature stability: a temperature coefficient of about −2×10⁻⁶/K — essentially zero — together with the >300 °C Curie point keeps inductance and impedance nearly drift-free over a wide temperature span, while losses stay low below 20 MHz. As an EMI-suppression material its normalized impedance is measured on an RH5×1.5×10 bead (curve on the next page). Typical uses are mid-frequency inductors, EMI common-mode chokes and filter elements in RF power modules, as well as bead-type EMI suppression. M61H shares the same μi ≈ 100 despite the similar name: M61 leads in near-zero drift, M61H (Bs approx. 420 mT) in power capability — pick M61 for temperature stability, M61H for high current.

Magnetic Characteristics

CharacteristicConditionValueUnit
μiInitial Permeability100 kHz & <0.2 mT100±25%—
BsSaturation Flux Density3000 A/m · 25 ℃100 Hz340mT
BsSaturation Flux Density3000 A/m · 100 ℃100 Hz280mT
BrRemanence3000 A/m · 25 ℃100 Hz220mT
BrRemanence3000 A/m · 100 ℃100 Hz180mT
HcCoercivity3000 A/m · 25 ℃100 Hz400A/m
HcCoercivity3000 A/m · 100 ℃100 Hz200A/m
αμrTemperature coefficient of permeability20~60 ℃-2×10⁻⁶/K
tanδ/μiRelative Loss Factor1.0 MHz & <0.2 mT80×10⁻⁶
tanδ/μiRelative Loss Factor5.0 MHz & <0.2 mT100×10⁻⁶
TcCurie Temp.100 kHz & <0.2 mT>300℃
DDensityArchimedes method4.9g/cm³
ρVolume ResistivityDC Current10⁷Ω·m

Characteristic curves

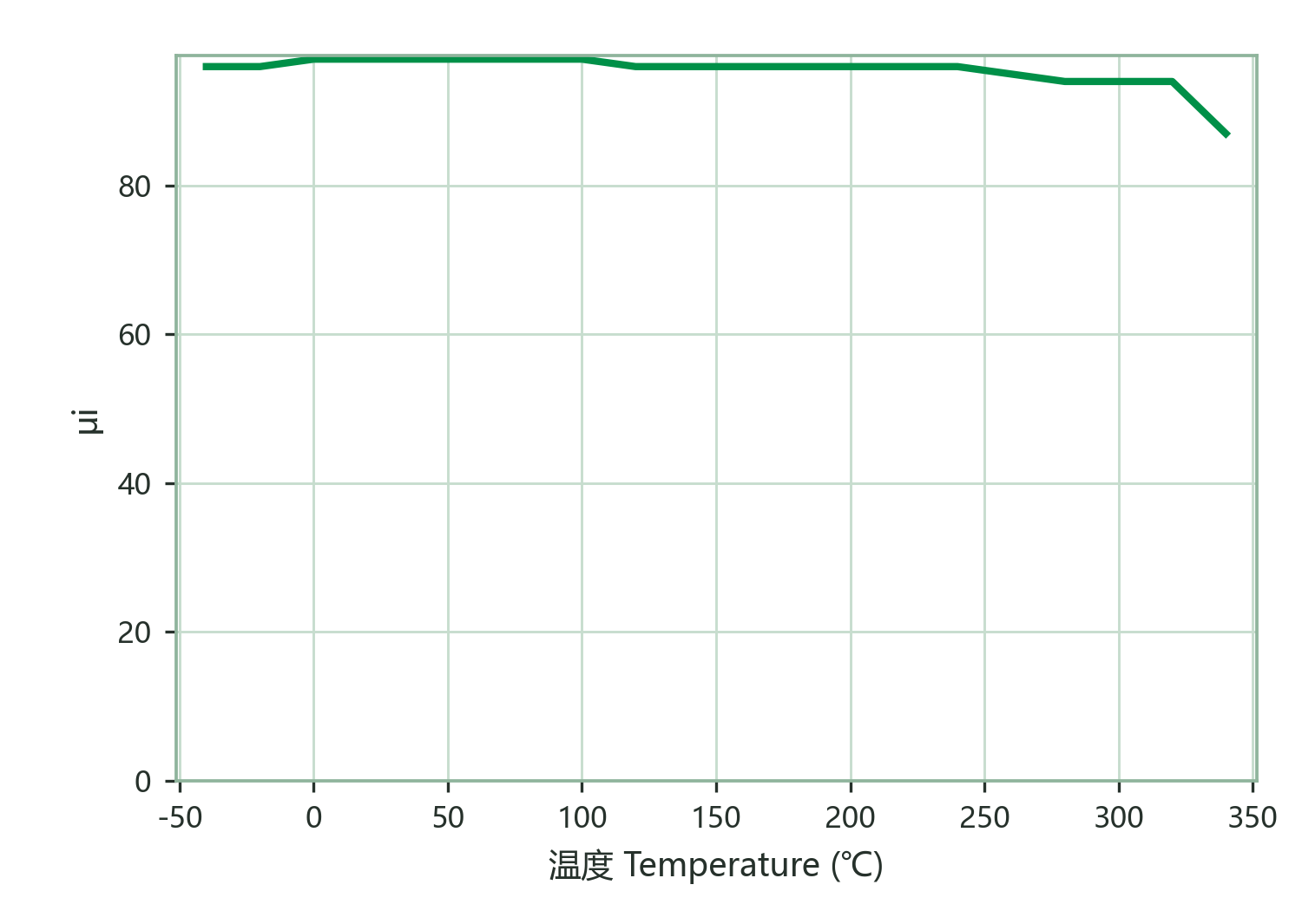

CURVE 01 · Initial Permeability vs. TemperatureInitial Permeability vs. Temperature

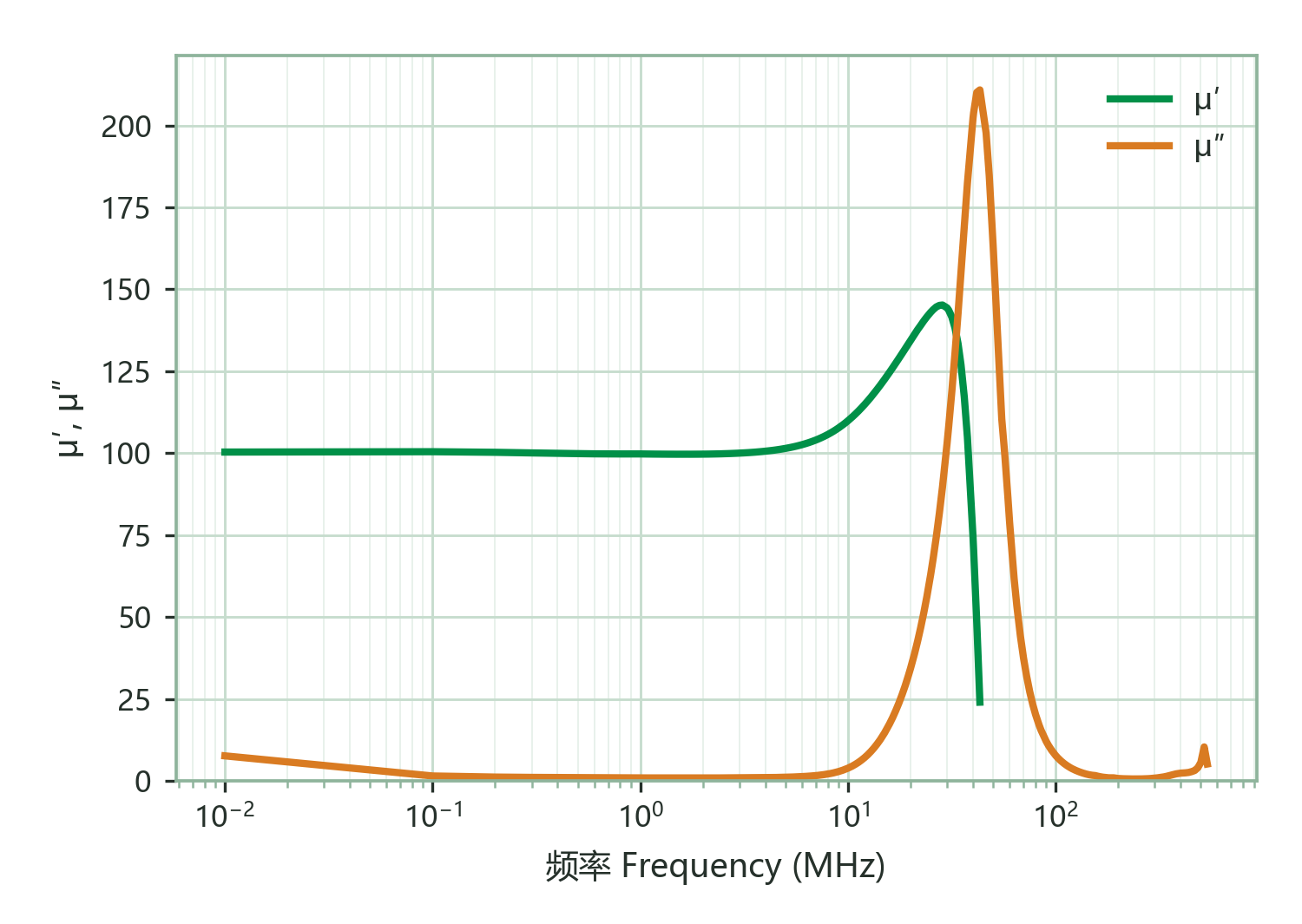

CURVE 02 · Complex Permeability (μ′, μ″) vs. FrequencyComplex Permeability (μ′, μ″) vs. Frequency

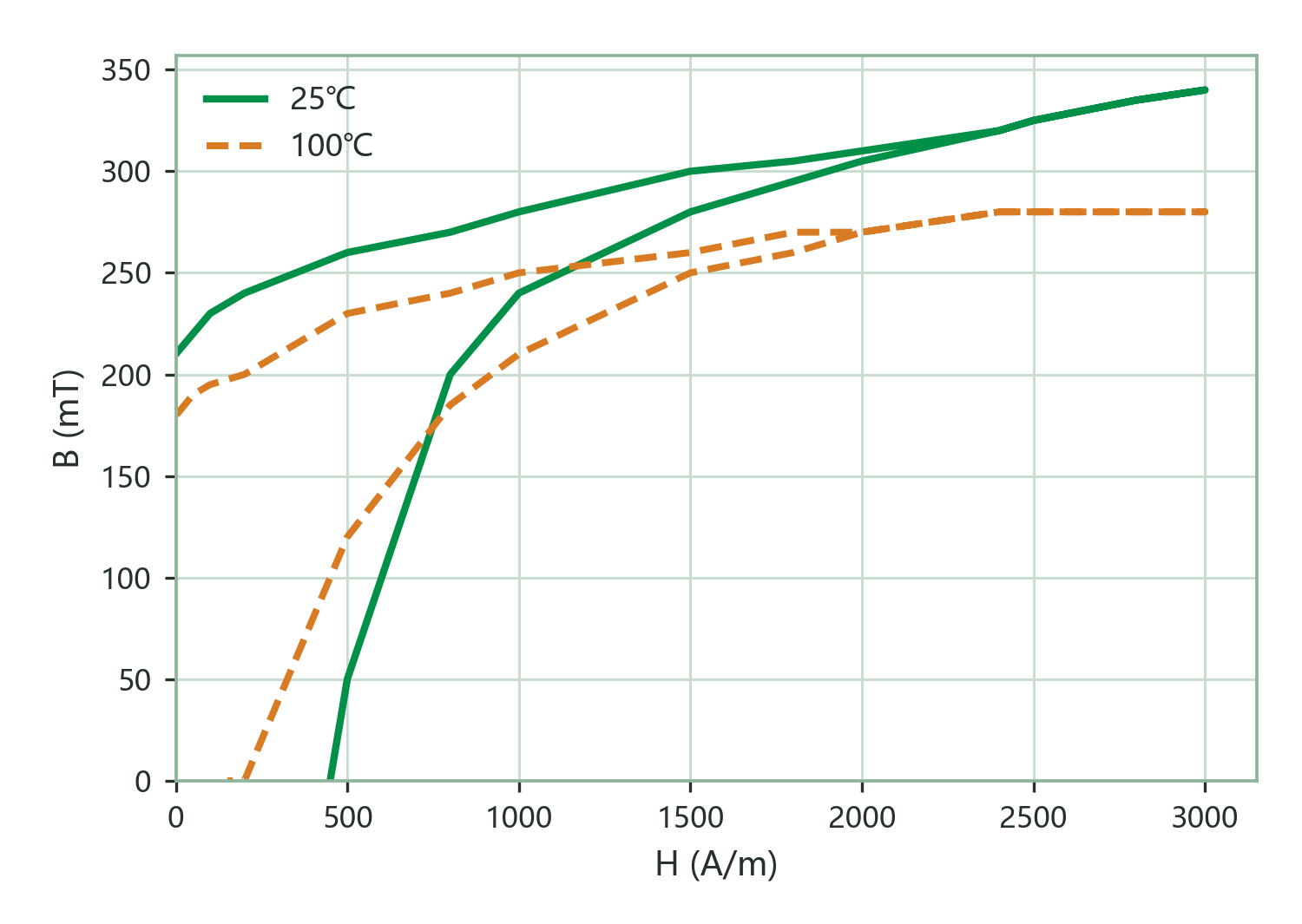

CURVE 03 · Static Magnetization Curves (B–H)Static Magnetization Curves (B–H)

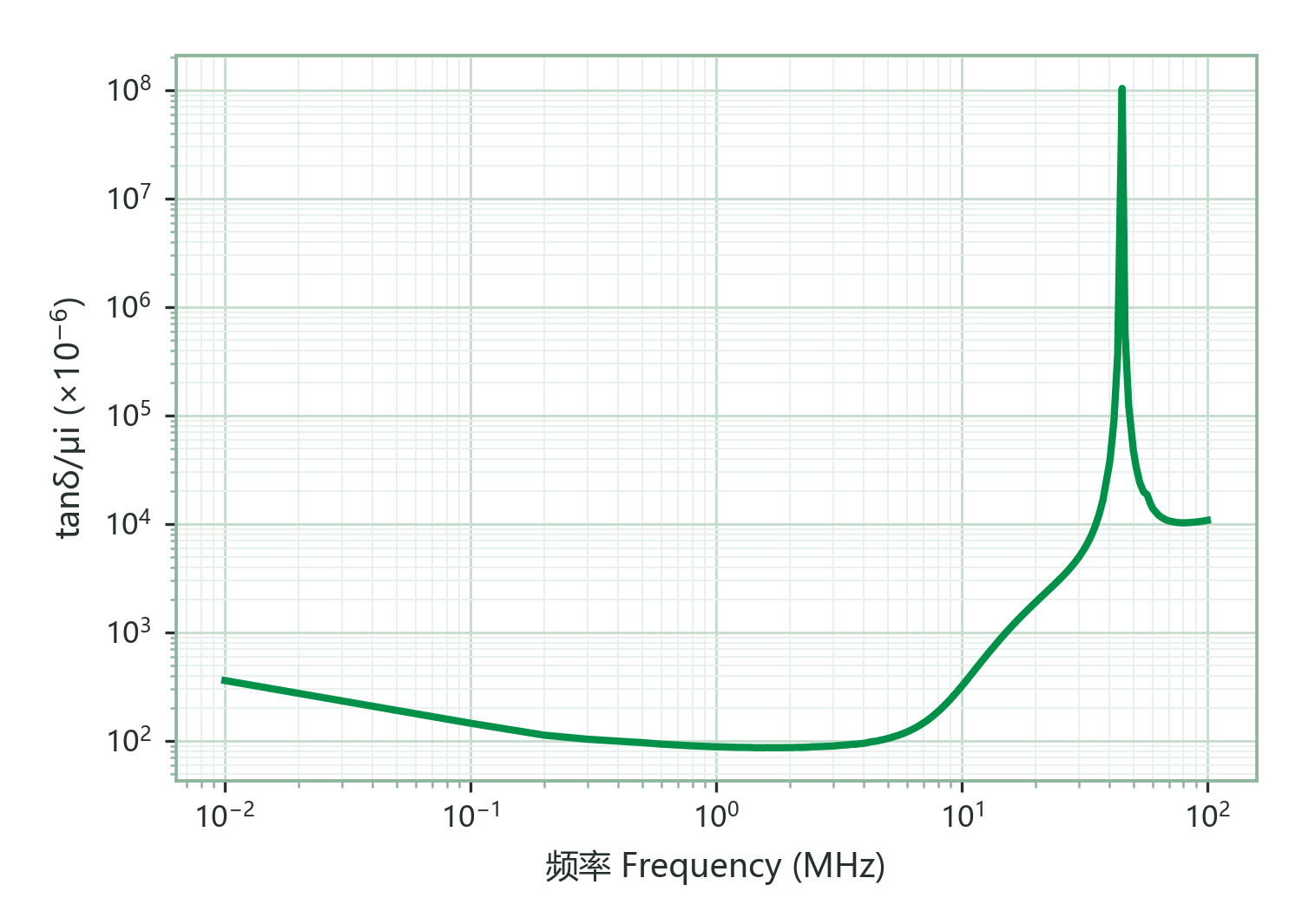

CURVE 04 · Relative Loss Factor (tanδ/μi) vs. FrequencyRelative Loss Factor (tanδ/μi) vs. Frequency

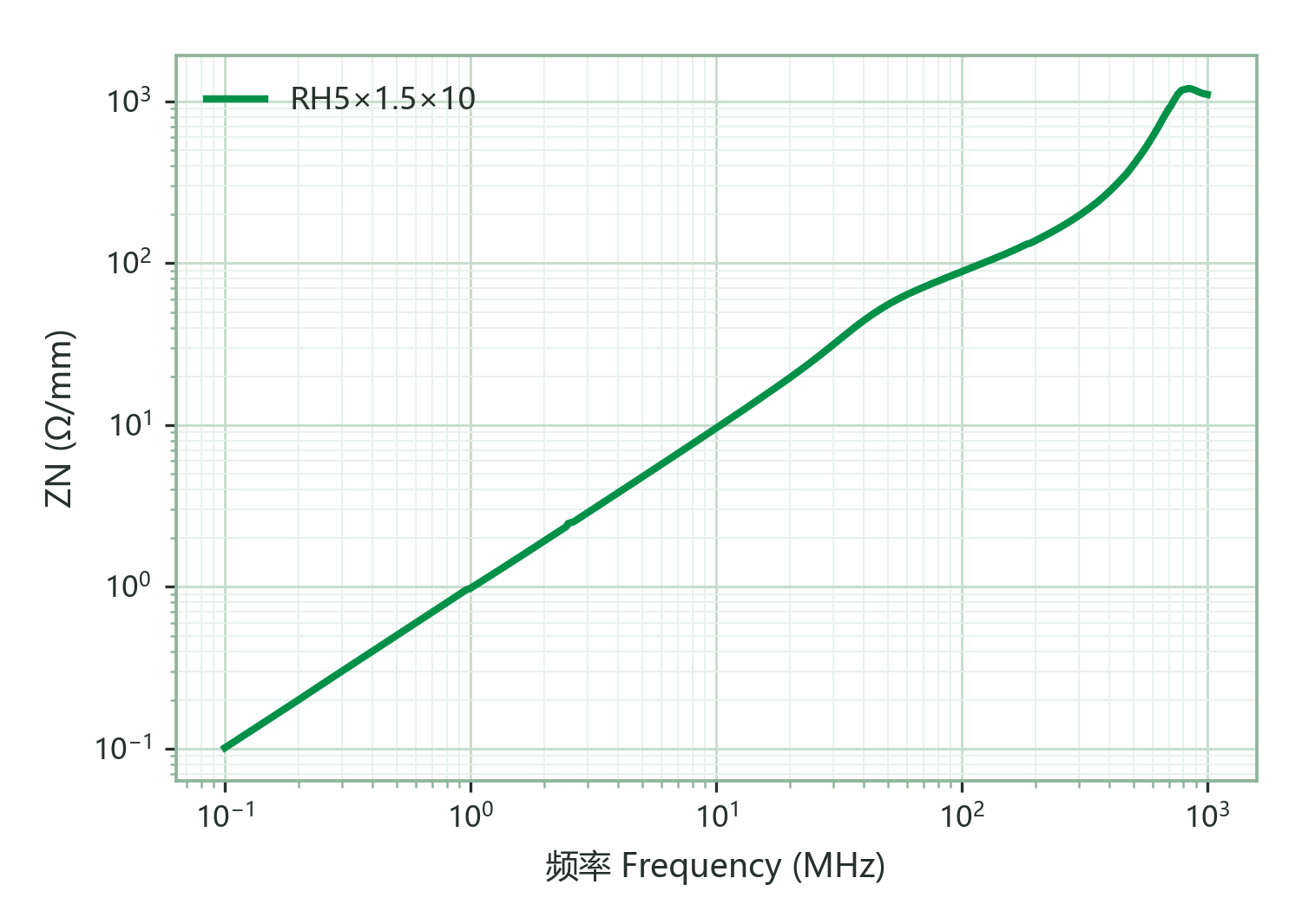

CURVE 05 · Normalized Impedance ZN vs. Frequency (single turn of Φ0.5 mm wire, 100 mm long)Normalized Impedance ZN vs. Frequency (single turn of Φ0.5 mm wire, 100 mm long)

Applications

ApplicationRoleBandTemperature
Temperature-stable filter / tuning inductor (low αμr)Alternative≤6 MHz—
Wideband signal transformer / balunFirst choice≤7.7 MHz—
Antenna rod / RFID / high-Q inductorFirst choice0.2–6.2 MHz—
Low-μ tuning / HF resonanceFirst choice0.2–6.2 MHz—
EMI bead / ring / cable sleeveAlternative100–300 MHz—
