NiZn Ferrite · NiZn material specification

M63

HIGH FREQUENCY STABLE MATERIALS

HF Power InductorRF FilterEMI Suppression BeadEnergy-Transfer Module

M63 is a NiZn ferrite with an initial permeability (μi) of approx. 180, a saturation flux density (Bs) of approx. 365 mT at 25 °C (290 mT at 100 °C) and a Curie temperature above 300 °C. It keeps losses low at a mid-high permeability (loss factor 50×10⁻⁶ at 0.5 MHz / 80×10⁻⁶ at 5.0 MHz) while holding Bs at 365 mT and Tc above 300 °C — a balance of permeability, loss, flux and temperature that makes it the general-purpose workhorse for low/mid-to-HF power inductors. As an EMI-suppression material its normalized impedance is measured on an RH5×1.5×10 bead (curve on the next page). Typical uses are low/mid-to-high-frequency power inductors, RF filters and energy-transfer modules in industrial electronics. In the ladder it sits between M61 (μi approx. 100) and Q1C1 (approx. 250): go to M61 for a higher frequency ceiling, to Q1C1 for higher inductance density (at a lower Curie temperature, >140 °C).

Magnetic Characteristics

CharacteristicConditionValueUnit
μiInitial Permeability100 kHz & <0.2 mT180±25%—
BsSaturation Flux Density3000 A/m · 25 ℃100 Hz365mT
BsSaturation Flux Density3000 A/m · 100 ℃100 Hz290mT
BrRemanence3000 A/m · 25 ℃100 Hz240mT
BrRemanence3000 A/m · 100 ℃100 Hz190mT
HcCoercivity3000 A/m · 25 ℃100 Hz200A/m
HcCoercivity3000 A/m · 100 ℃100 Hz150A/m
αμrTemperature coefficient of permeability20~60 ℃10×10⁻⁶/K
tanδ/μiRelative Loss Factor0.5 MHz & <0.2 mT50×10⁻⁶
tanδ/μiRelative Loss Factor5.0 MHz & <0.2 mT80×10⁻⁶
TcCurie Temp.100 kHz & <0.2 mT>300℃
DDensityArchimedes method4.9g/cm³
ρVolume ResistivityDC Current10⁷Ω·m

Characteristic curves

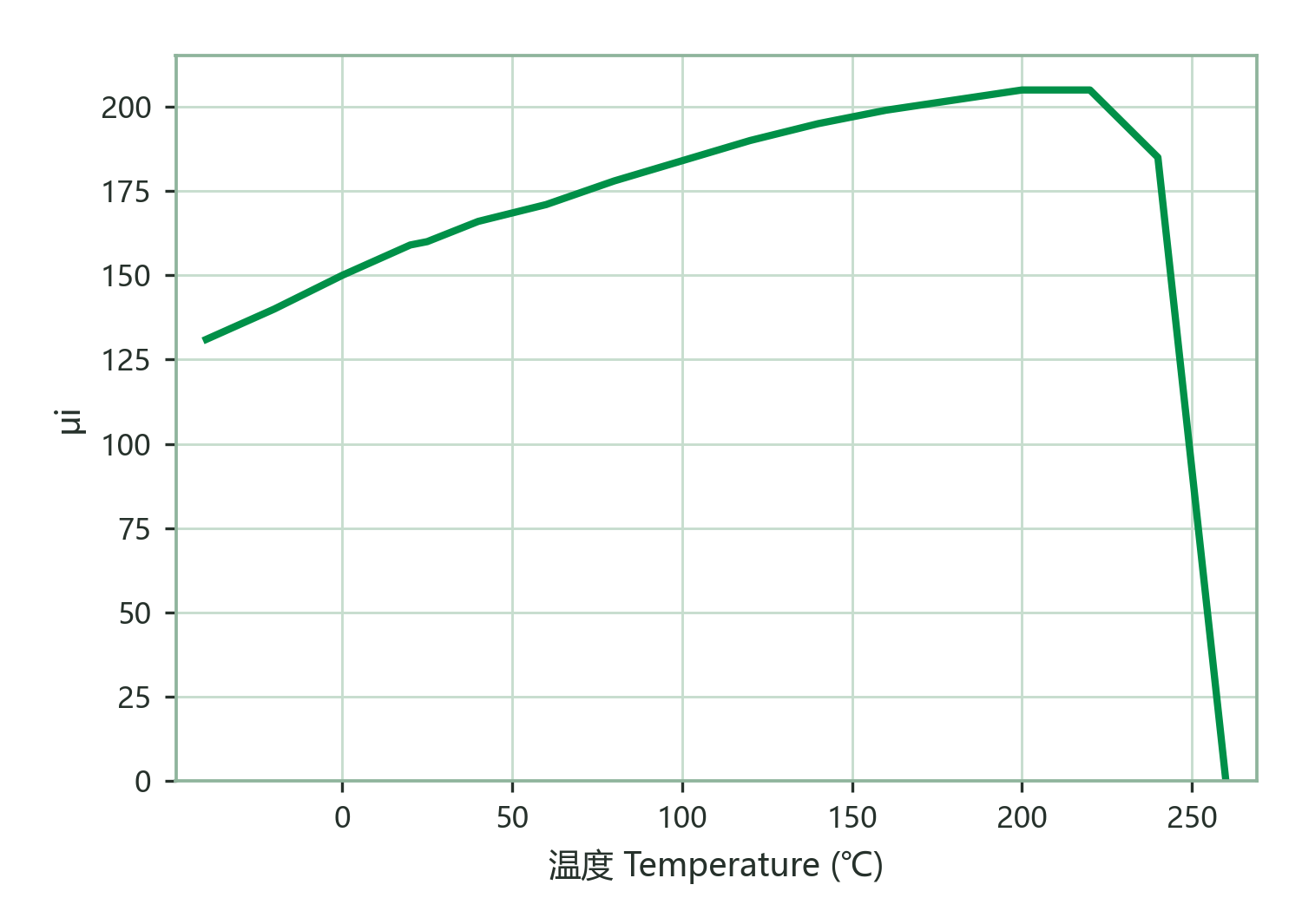

CURVE 01 · Initial Permeability vs. TemperatureInitial Permeability vs. Temperature

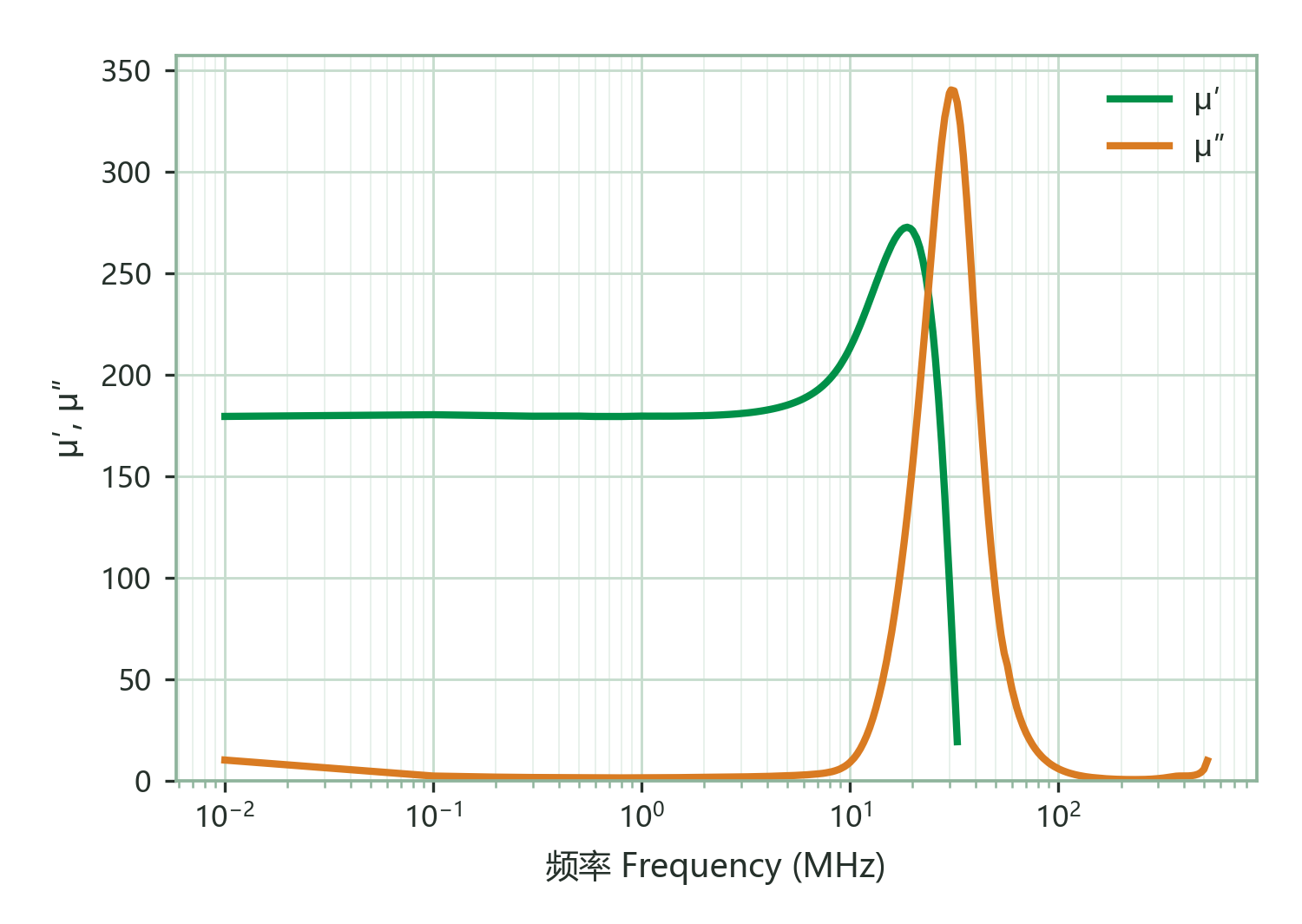

CURVE 02 · Complex Permeability (μ′, μ″) vs. FrequencyComplex Permeability (μ′, μ″) vs. Frequency

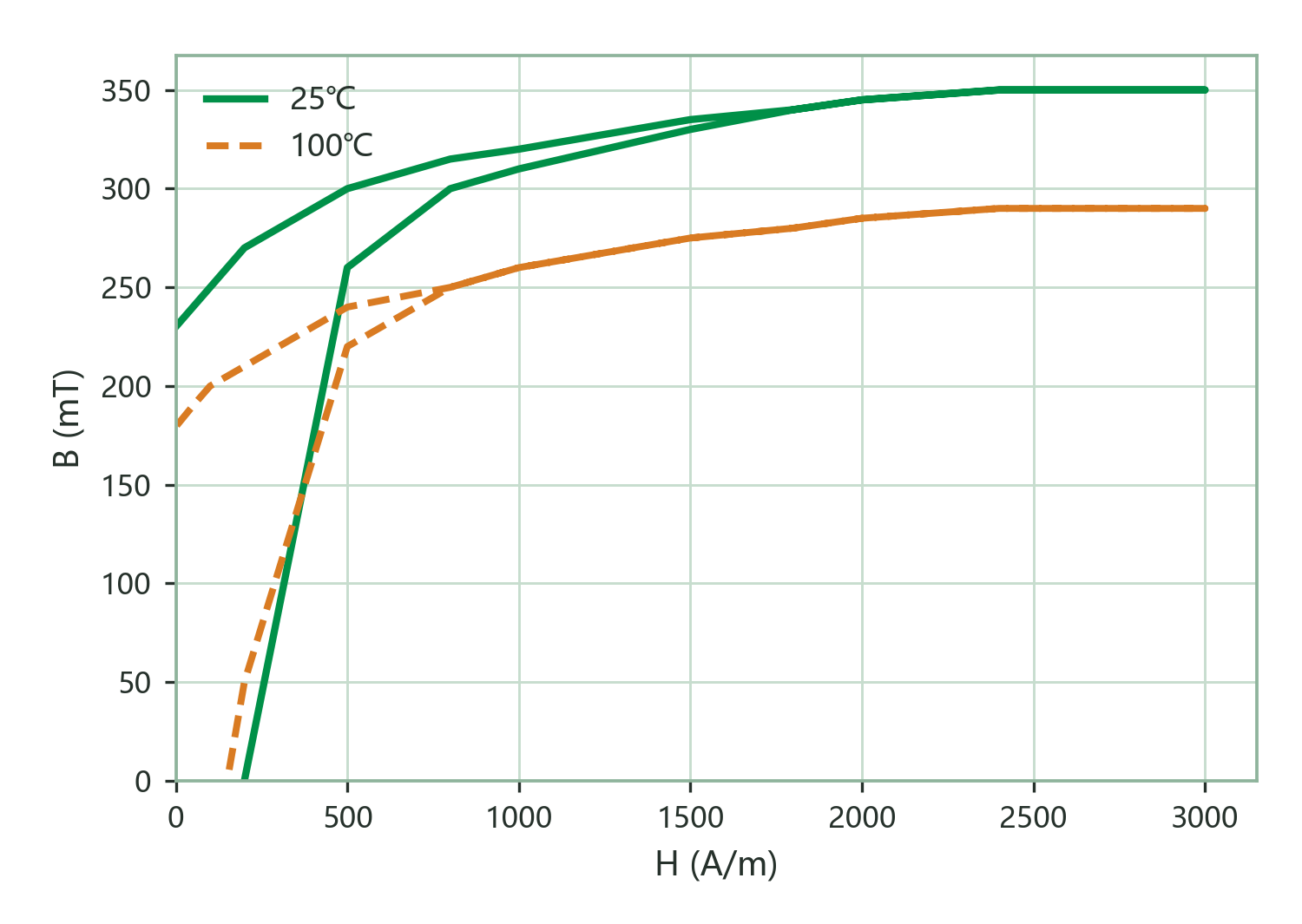

CURVE 03 · Static Magnetization Curves (B–H)Static Magnetization Curves (B–H)

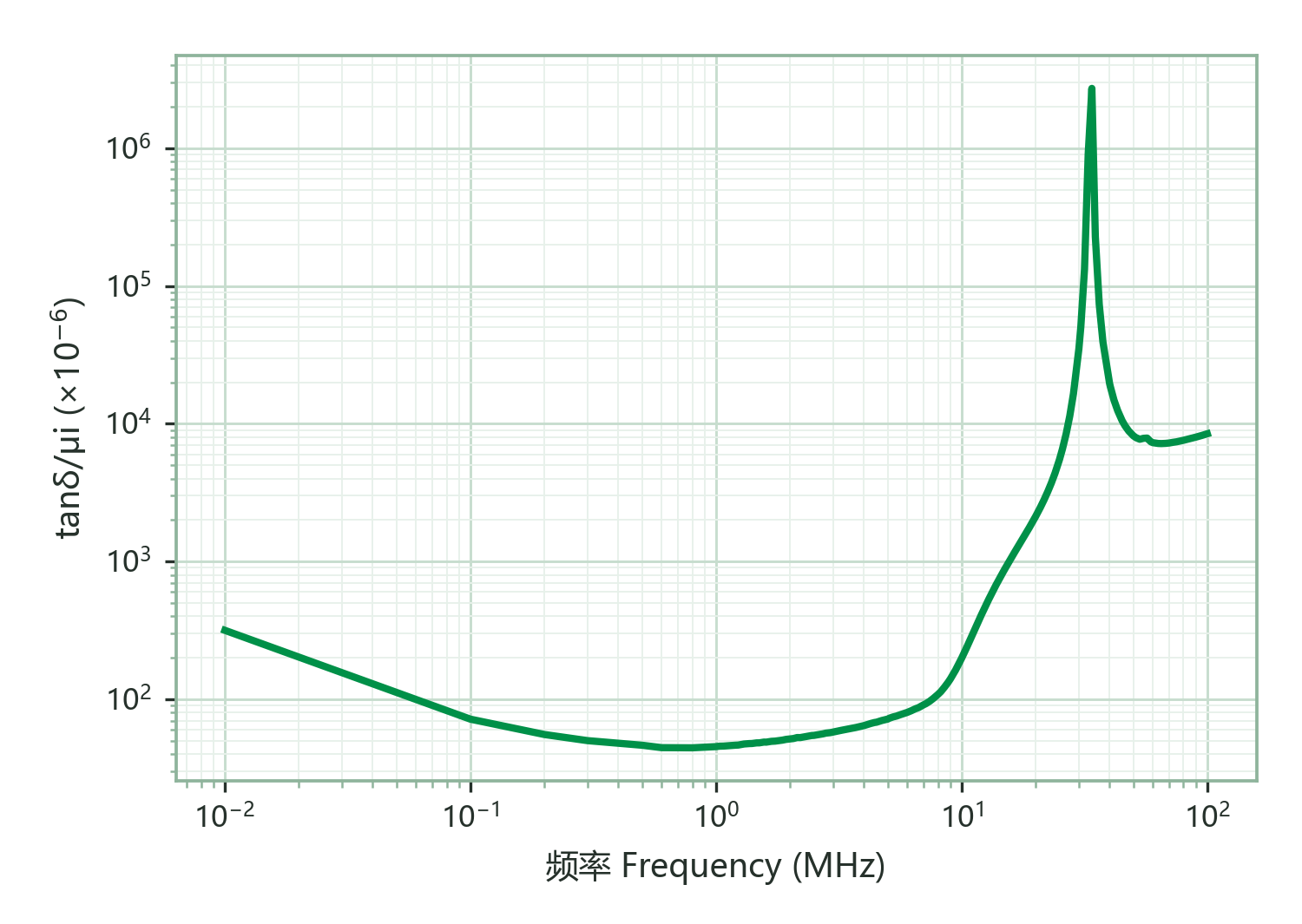

CURVE 04 · Relative Loss Factor (tanδ/μi) vs. FrequencyRelative Loss Factor (tanδ/μi) vs. Frequency

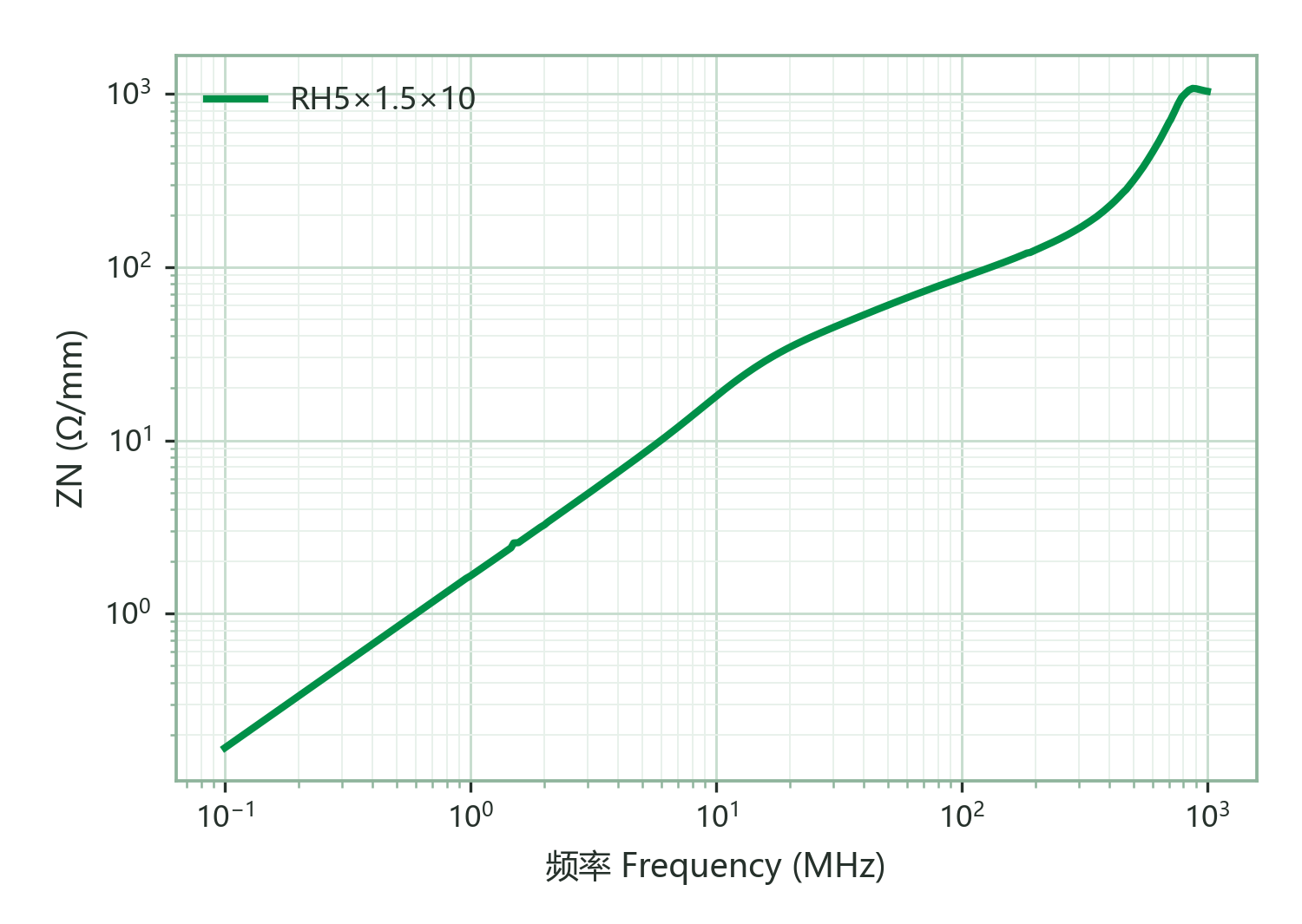

CURVE 05 · Normalized Impedance ZN vs. Frequency (single turn of Φ0.5 mm wire, 100 mm long)Normalized Impedance ZN vs. Frequency (single turn of Φ0.5 mm wire, 100 mm long)

Applications

ApplicationRoleBandTemperature
Wideband signal transformer / balunFirst choice≤6.7 MHz—
Antenna rod / RFID / high-Q inductorFirst choice0.2–4.1 MHz—
Low-μ tuning / HF resonanceFirst choice0.2–4.1 MHz—
EMI bead / ring / cable sleeveAlternative100–300 MHz—
