MnZn Power Ferrite · Mid-high-frequency power · Material specification

TM59★ 2027 NEW

MID-HIGH-FREQUENCY LOW-LOSS POWER FERRITE

500–800 kHz High-Power TransformerLLC / CLLC Main TransformerServer / Telecom PowerResonant / Output Inductor

TM59 is a mid-high-frequency low-loss MnZn power ferrite with an initial permeability (μi) of 1900, a saturation flux density (Bs) of 530 mT at 25 °C (430 mT at 100 °C) and a Curie temperature above 260 °C. Its principal characteristic is high-frequency loss at large flux swing: 600 → 550 kW/m³ at 500 kHz / 100 mT, the lowest value in the power series at this high-flux operating point; 330 → 250 kW/m³ at 800 kHz / 60 mT and 80 → 50 kW/m³ at 500 kHz / 50 mT, with the 100 °C loss below the 25 °C loss at every operating point, i.e. a negative temperature coefficient of loss. The lowest remanence in the series (Br 35 mT at 100 °C) and a coercivity of 10 A/m keep hysteresis loss low, and 430 mT of hot-state Bs preserves the saturation margin of high-power transformers at 100 mT-class flux swings. Typical applications are 500–800 kHz high-power transformers, including LLC/CLLC main transformers in server and telecom supplies and high-power HF DC-DC converters; its 100 °C DC-bias capability is the highest of the eight grades measured (220 nH band, I@90 % = 48.4 A), so resonant and output inductors may use the same grade as the main transformer. Of the two mid-high-frequency grades TM59 is the recommended grade for new designs, TM50A the earlier generation (μi 2500, retained for existing designs); for inductor applications such as TLVR above 0.7 MHz the high-frequency grade TM65 is recommended.

Magnetic Characteristics

CharacteristicCondition25 ℃100 ℃Unit
Initial Permeability μiInitial Permeability μi100 kHz & <0.2 mT1900±25%——
Amplitude Permeability μaAmplitude Permeability μa25 kHz/400 mT> 3000> 3000—
Saturation Flux Density BsSaturation Flux Density Bs1200 A/m 100 Hz530430mT
Remanence BrRemanence Br1200 A/m 100 Hz5535mT
Coercivity HcCoercivity Hc1200 A/m 100 Hz1510A/m
Loss FactorLoss Factor100 kHz & <0.2 mT<5—10⁻⁶
Curie Temperature TcCurie Temperature Tc100 kHz & <0.2 mT>260—℃
Density DDensity DArchimedes method>4.85—g/cm³
Electrical Resistivity ρElectrical Resistivity ρDC Current>10—Ω·m

Power Loss · kW/m³

Condition25 ℃100 ℃Condition25 ℃100 ℃
300 kHz/100 mT250230800 kHz/60 mT330250
500 kHz/50 mT80501 MHz/30 mT10070
500 kHz/100 mT6005501 MHz/50 mT350250

Pcv = K·f^α·B^β

RangeKαβ
100 ≤3005.129E-091.4553.5423
100 ≤10008.028E-112.09253.6525

Characteristic curves

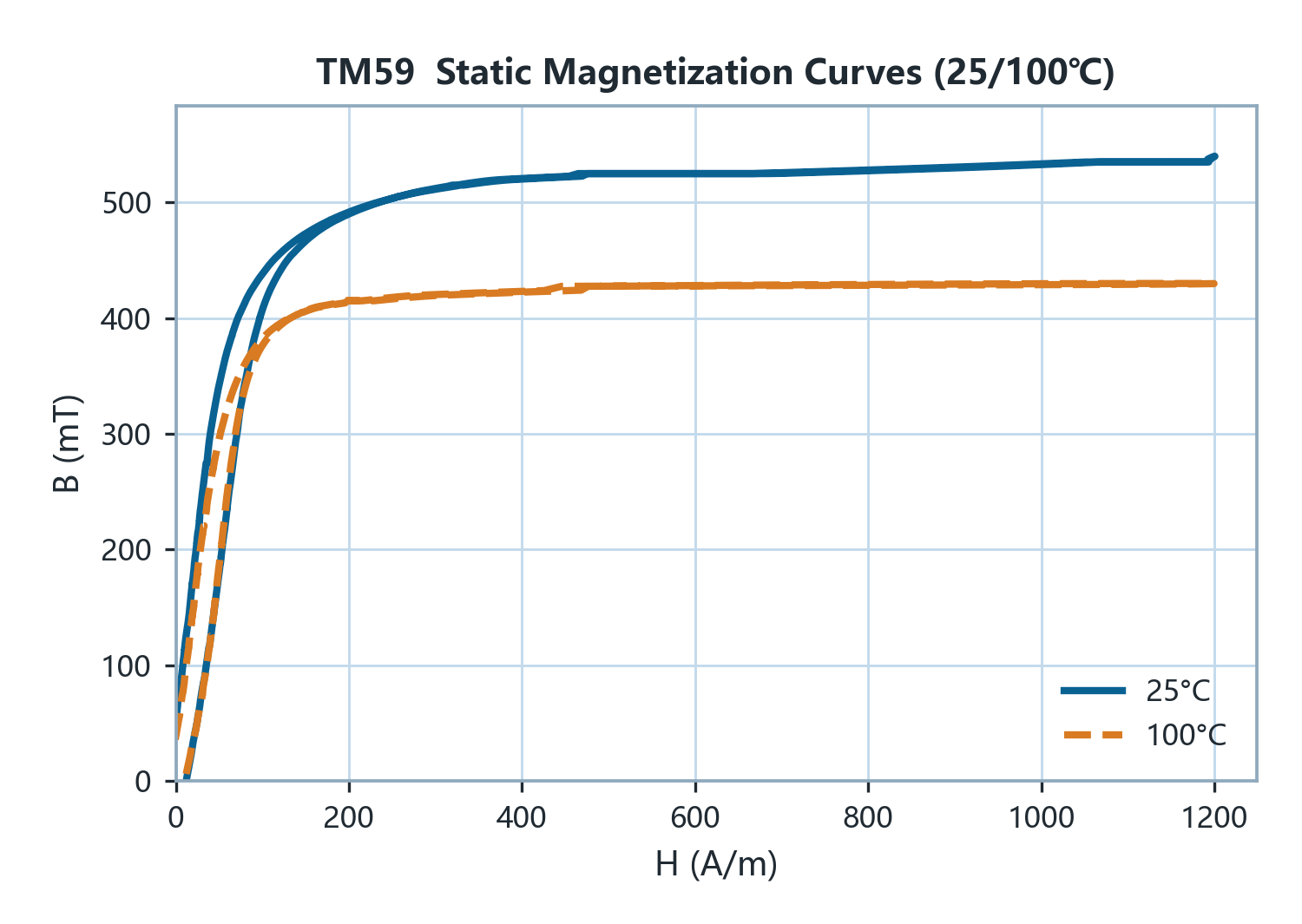

CURVE 01curve

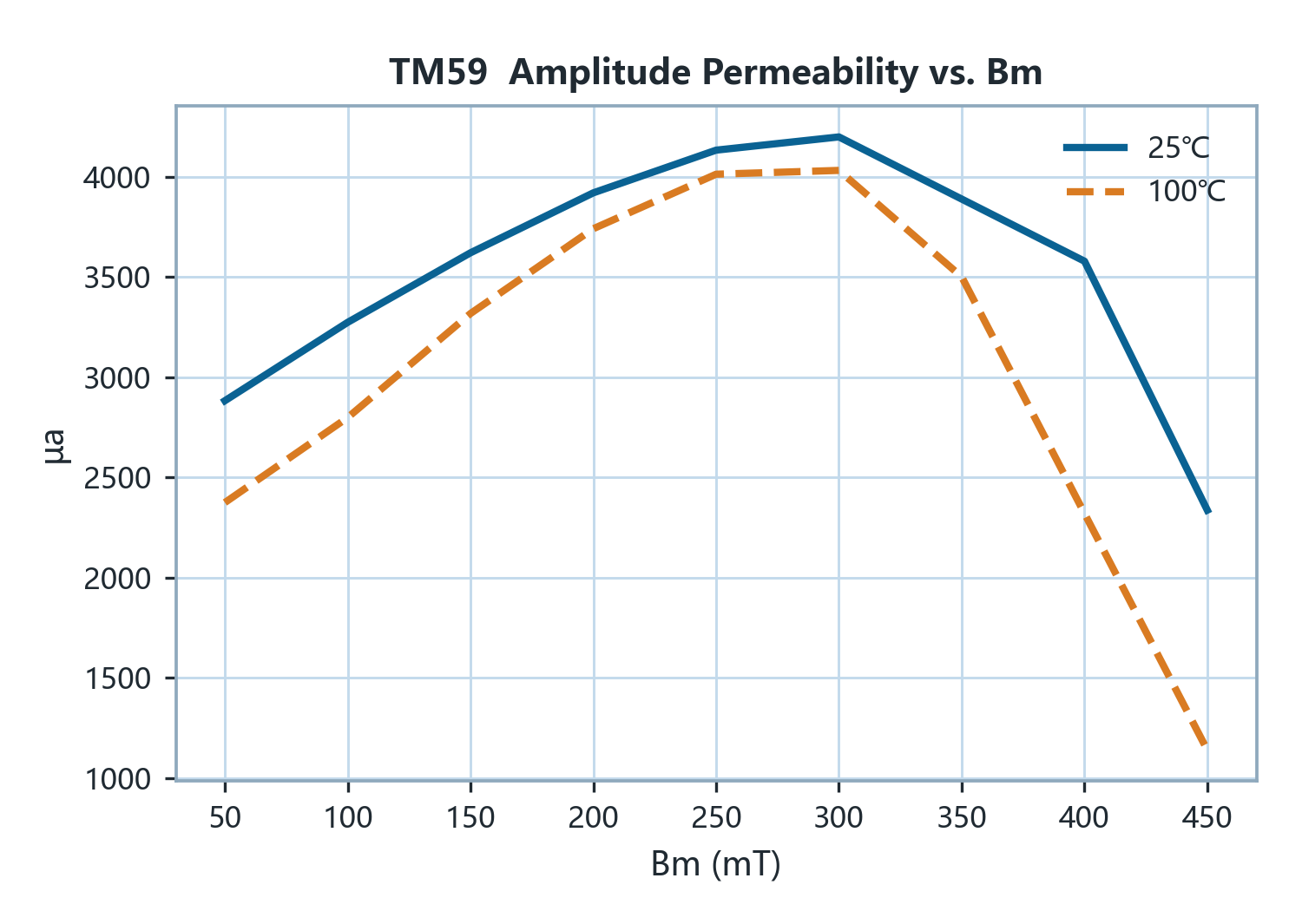

CURVE 02curve

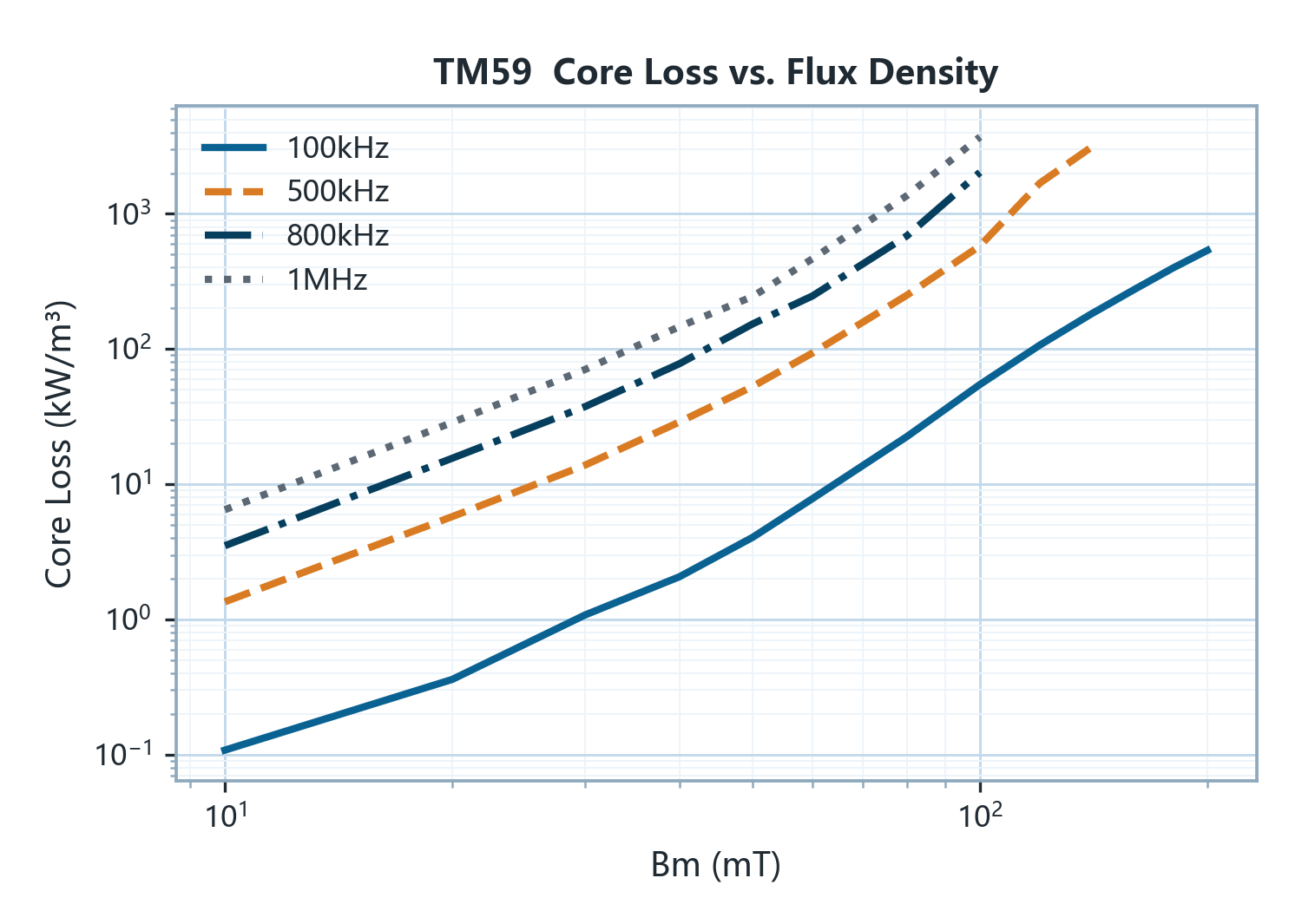

CURVE 03curve

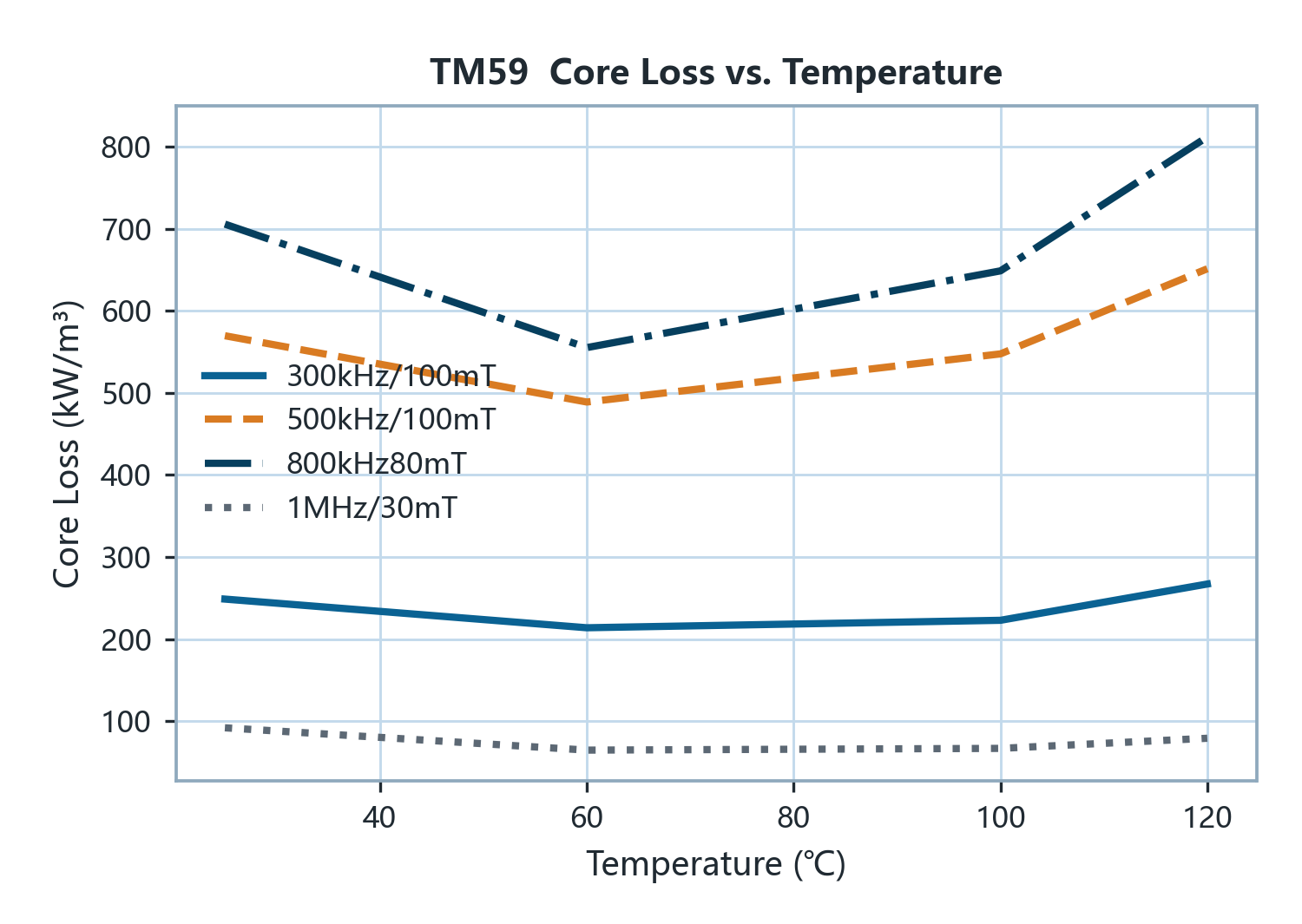

CURVE 04curve

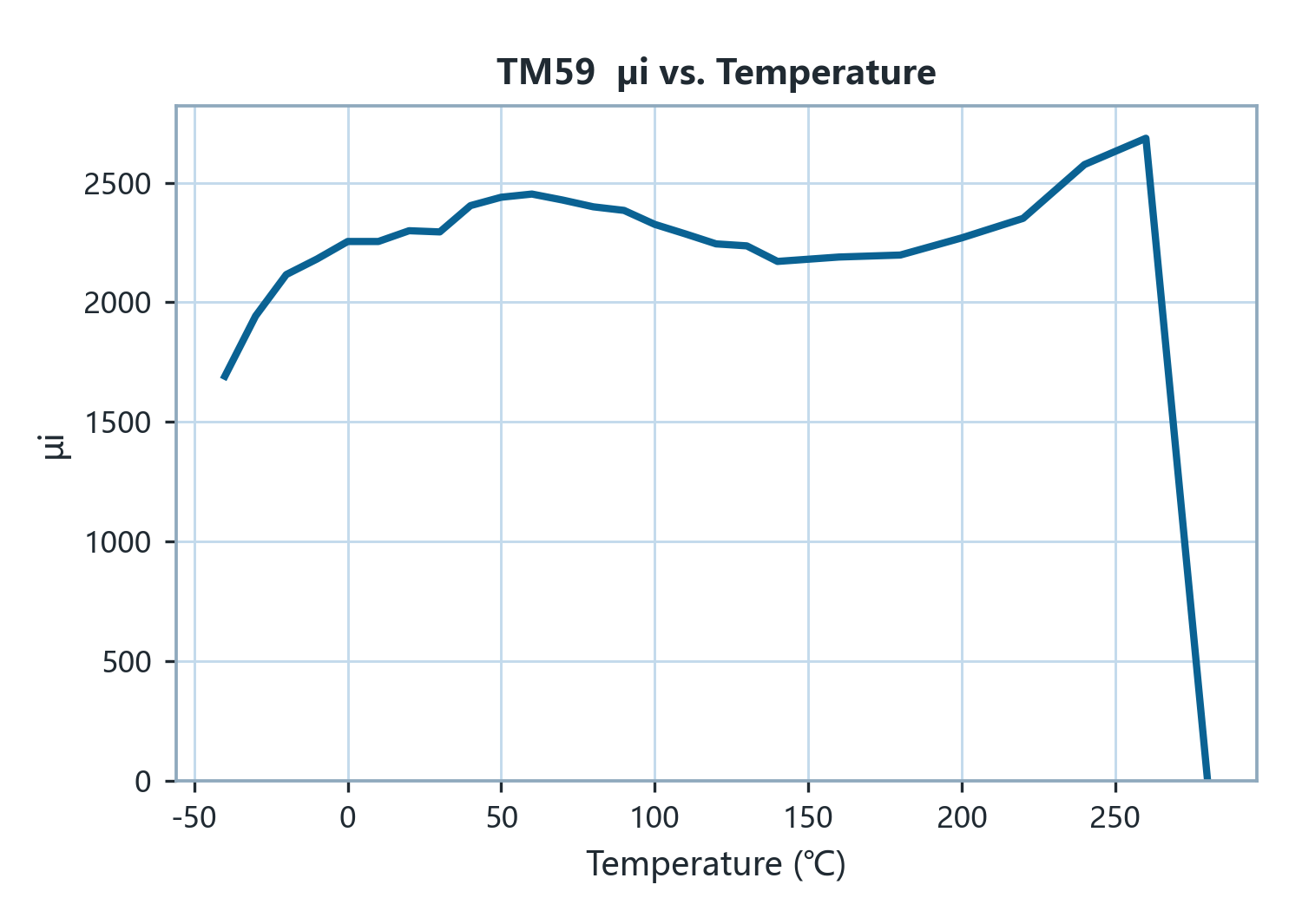

CURVE 05curve

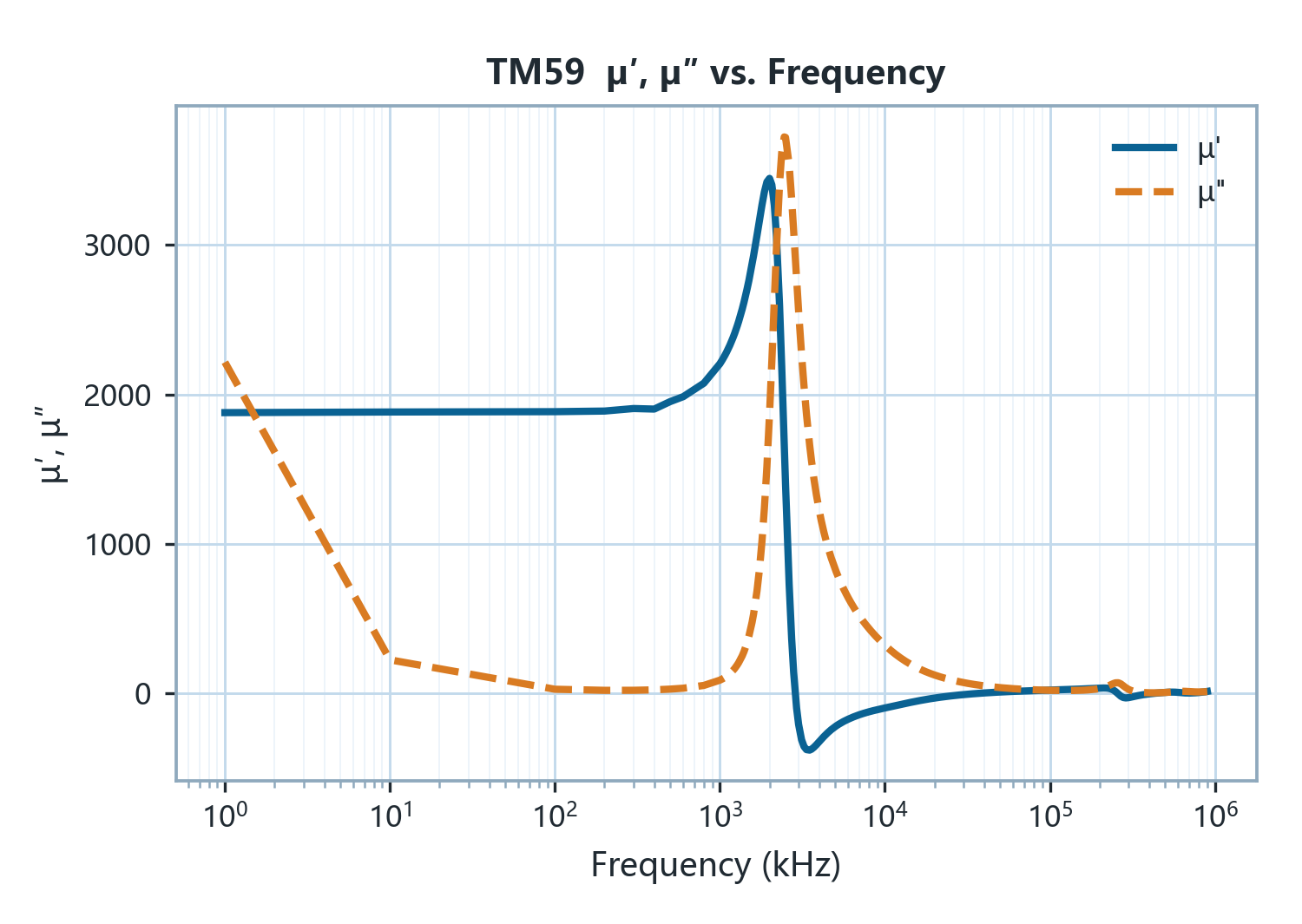

CURVE 06curve

Applications

ApplicationRoleBandTemperature
Flyback transformer (>150 W)First choice0.3–1 MHz25–100 ℃
Flyback transformer (≤150 W, by IDC)First choice0.5–0.8 MHz—
Forward transformerFirst choice0.3–0.5 MHz25–100 ℃
Push-pull transformerFirst choice0.3–0.5 MHz25–100 ℃
LLC / resonant & bridge transformer (incl. Lr)First choice0.3–1 MHz25–100 ℃
Buck output inductorFirst choice0.5–0.8 MHz—
Boost input inductorFirst choice0.5–0.8 MHz—
PFC chokes & high-current storage inductorsFirst choice0.5–0.8 MHz—
Forward / push-pull output inductorFirst choice0.5–0.8 MHz—
VRM / TLVR / PoL inductorFirst choice0.5–0.8 MHz—
