NiZn Ferrite · NiZn material specification

V4F1

HIGH FREQUENCY STABLE MATERIALS

UHF Suppression BeadVHF / UHF RF FilterHigh-Speed Line Choke

V4F1 is a NiZn ferrite with an initial permeability (μi) of approx. 10, a saturation flux density (Bs) of approx. 150 mT at 25 °C (140 mT at 100 °C) and a Curie temperature above 320 °C. It trades an extremely low permeability for an extremely high frequency ceiling — by Snoek's law, the lower the μi the higher the resonance frequency — so V4F1 keeps inductive behaviour and low insertion loss into the VHF/UHF range, the frequency end-point of this volume's high-frequency family; with Tc above 320 °C and Bs almost unchanged with temperature, its characteristics are highly temperature-insensitive. Typical uses are suppression beads above the UHF band, ultra-high-frequency RF filters and common-mode noise suppression on high-speed lines, plus HF circuits in wireless charging and medical electronics. Despite the similar name, V2F1 (μi approx. 30) is positioned differently — V4F1's μi is in fact lower and its frequency ceiling higher; for filtering and resonance below the 100 MHz class choose V2F1 or M5E1, reserving V4F1 for the topmost band.

Magnetic Characteristics

CharacteristicConditionValueUnit
μiInitial Permeability100 kHz & <0.2 mT10±25%—
BsSaturation Flux Density3000 A/m · 25 ℃100 Hz150mT
BsSaturation Flux Density3000 A/m · 100 ℃100 Hz140mT
BrRemanence3000 A/m · 25 ℃100 Hz95mT
BrRemanence3000 A/m · 100 ℃100 Hz90mT
HcCoercivity3000 A/m · 25 ℃100 Hz1450A/m
HcCoercivity3000 A/m · 100 ℃100 Hz1400A/m
αμrTemperature coefficient of permeability20~60 ℃40×10⁻⁶/K
tanδ/μiRelative Loss Factor25 MHz & <0.2 mT600×10⁻⁶
tanδ/μiRelative Loss Factor100 MHz & <0.2 mT700×10⁻⁶
TcCurie Temp.100 kHz & <0.2 mT>320℃
DDensityArchimedes method4.9g/cm³
ρVolume ResistivityDC Current10⁷Ω·m

Characteristic curves

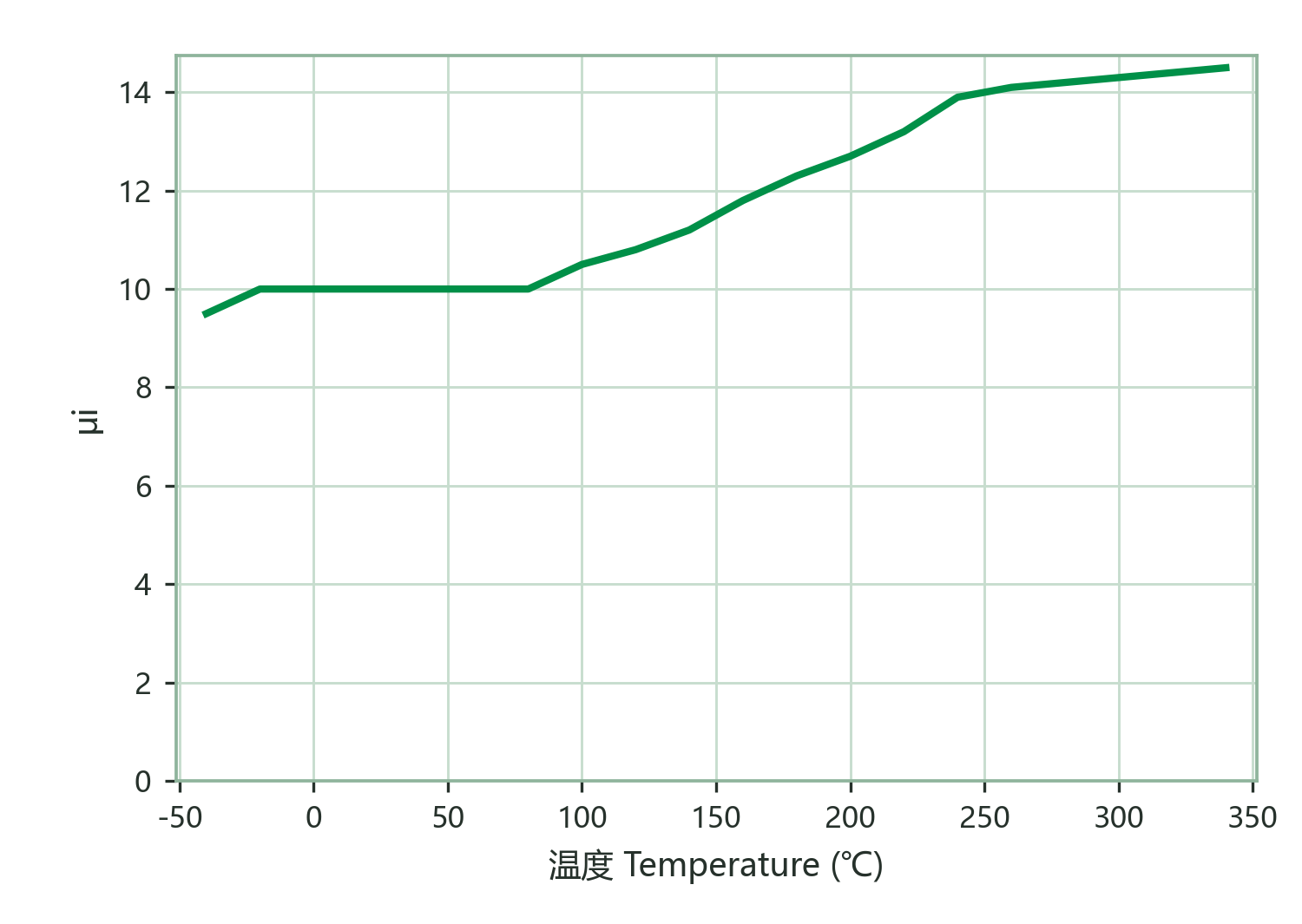

CURVE 01 · Initial Permeability vs. TemperatureInitial Permeability vs. Temperature

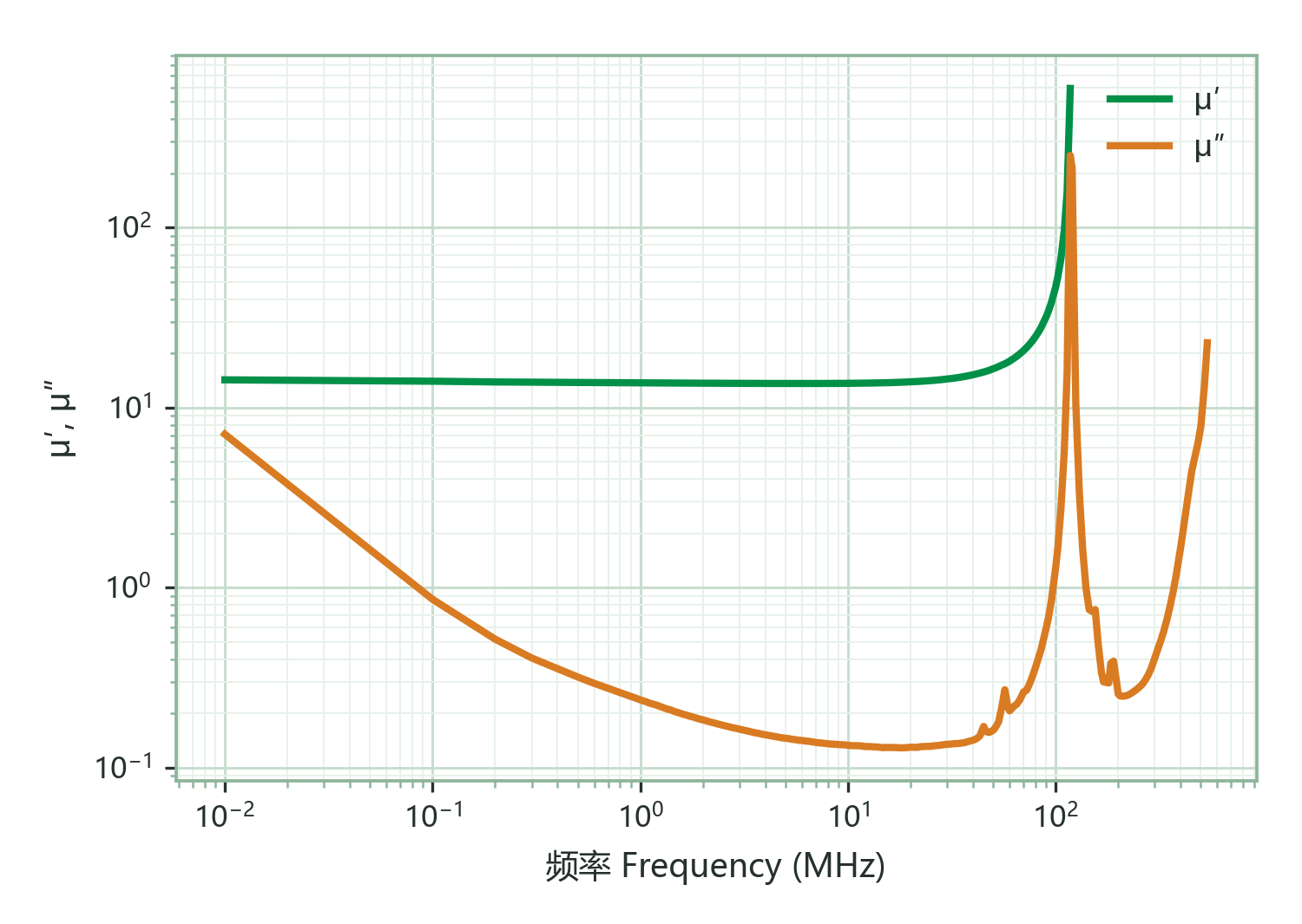

CURVE 02 · Complex Permeability (μ′, μ″) vs. FrequencyComplex Permeability (μ′, μ″) vs. Frequency

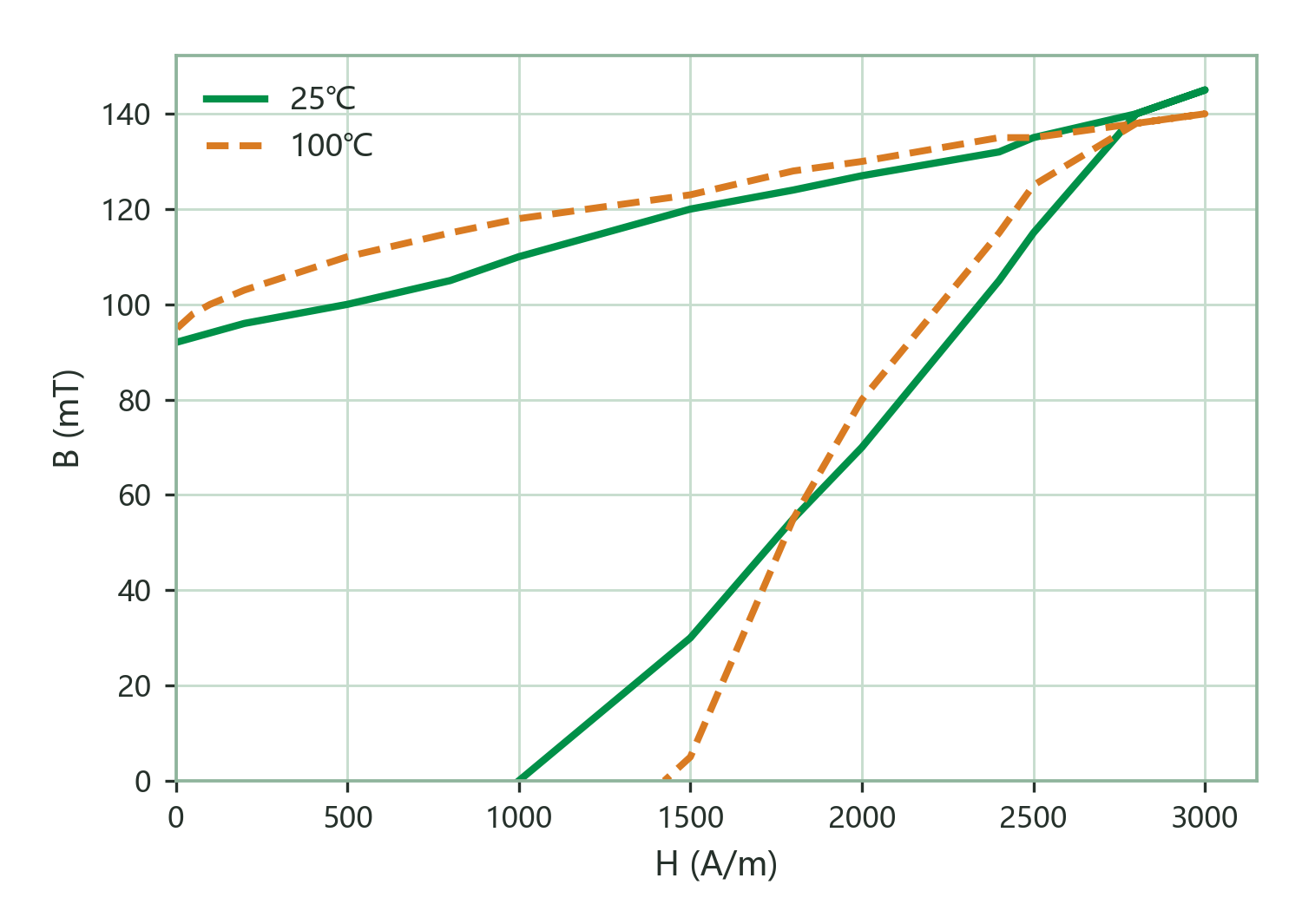

CURVE 03 · Static Magnetization Curves (B–H)Static Magnetization Curves (B–H)

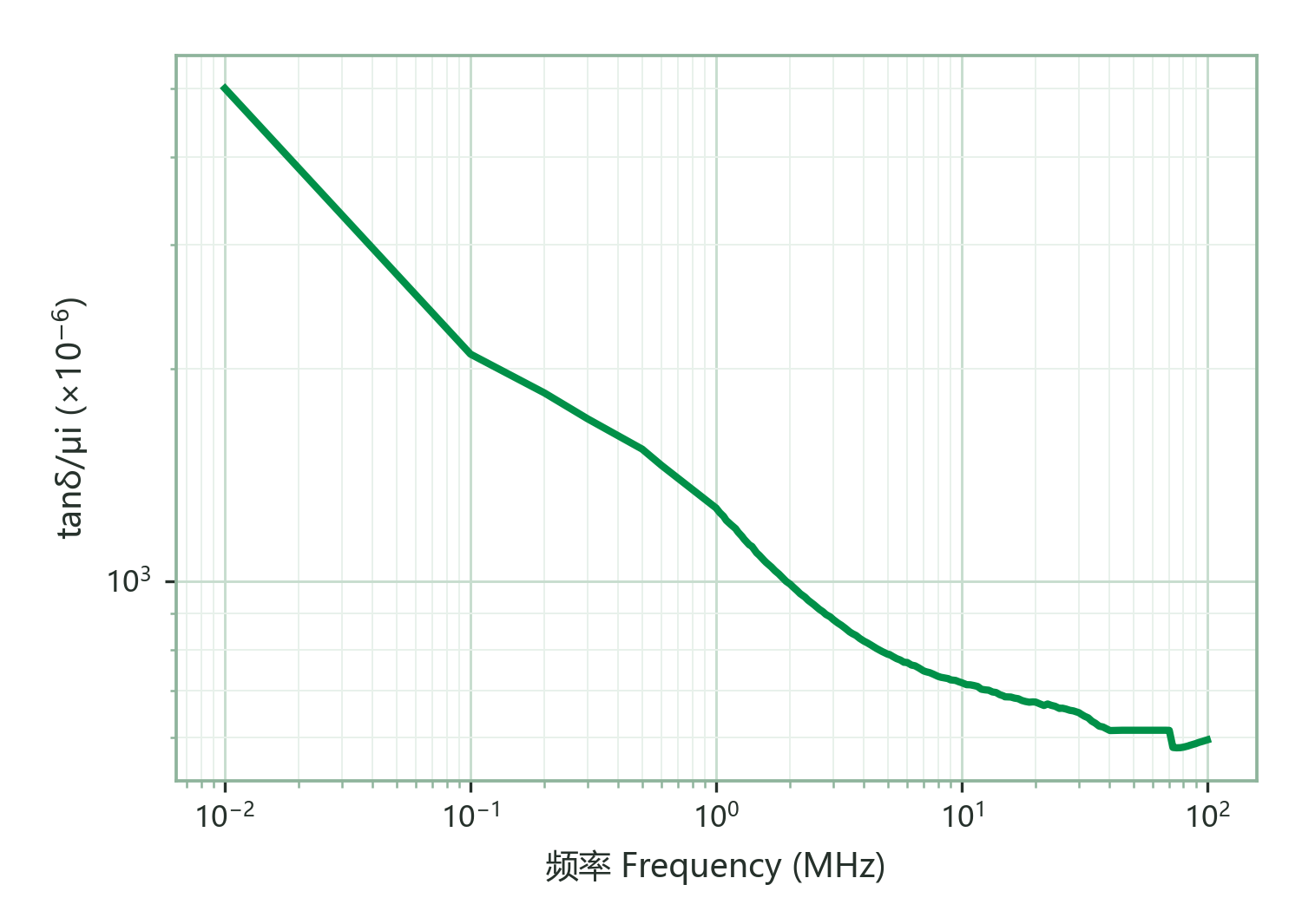

CURVE 04 · Relative Loss Factor (tanδ/μi) vs. FrequencyRelative Loss Factor (tanδ/μi) vs. Frequency

Applications

ApplicationRoleBandTemperature
Wideband signal transformer / balunAlternative≤55 MHz—
Antenna rod / RFID / high-Q inductorAlternative3–55 MHz—
Low-μ tuning / HF resonanceAlternative3–55 MHz—
