NiZn Ferrite · NiZn material specification

V2F1

HIGH FREQUENCY STABLE MATERIALS

HF FilterRF Resonant InductorRF Power Choke

V2F1 is a NiZn ferrite with an initial permeability (μi) of approx. 30, a saturation flux density (Bs) of approx. 310 mT at 25 °C (270 mT at 100 °C) and a Curie temperature above 300 °C. Compared with the lower-μi members of the family, V2F1 keeps a frequency ceiling of about 90 MHz while restoring the saturation flux to the 310 mT level — a clearly better flux margin than V4F1/M5E1 when the HF circuit carries bias or power; the Curie point above 300 °C keeps Q stable under demanding temperatures. Typical uses are HF filters below 90 MHz, RF resonant devices and low-loss mid-band RF inductors. Despite the similar name, V4F1 (μi approx. 10) targets a higher band — the numeral does not order the permeability; select by band and flux need: V4F1 or M5E1 for higher frequencies, M9A for higher-Q mid-band work.

Magnetic Characteristics

CharacteristicConditionValueUnit
μiInitial Permeability100 kHz & <0.2 mT30±25%—
BsSaturation Flux Density3000 A/m · 25 ℃100 Hz310mT
BsSaturation Flux Density3000 A/m · 100 ℃100 Hz270mT
BrRemanence3000 A/m · 25 ℃100 Hz180mT
BrRemanence3000 A/m · 100 ℃100 Hz160mT
HcCoercivity3000 A/m · 25 ℃100 Hz610A/m
HcCoercivity3000 A/m · 100 ℃100 Hz600A/m
αμrTemperature coefficient of permeability20~60 ℃25×10⁻⁶/K
tanδ/μiRelative Loss Factor10 MHz & <0.2 mT160×10⁻⁶
tanδ/μiRelative Loss Factor50 MHz & <0.2 mT270×10⁻⁶
TcCurie Temp.100 kHz & <0.2 mT>300℃
DDensityArchimedes method4.9g/cm³
ρVolume ResistivityDC Current10⁷Ω·m

Characteristic curves

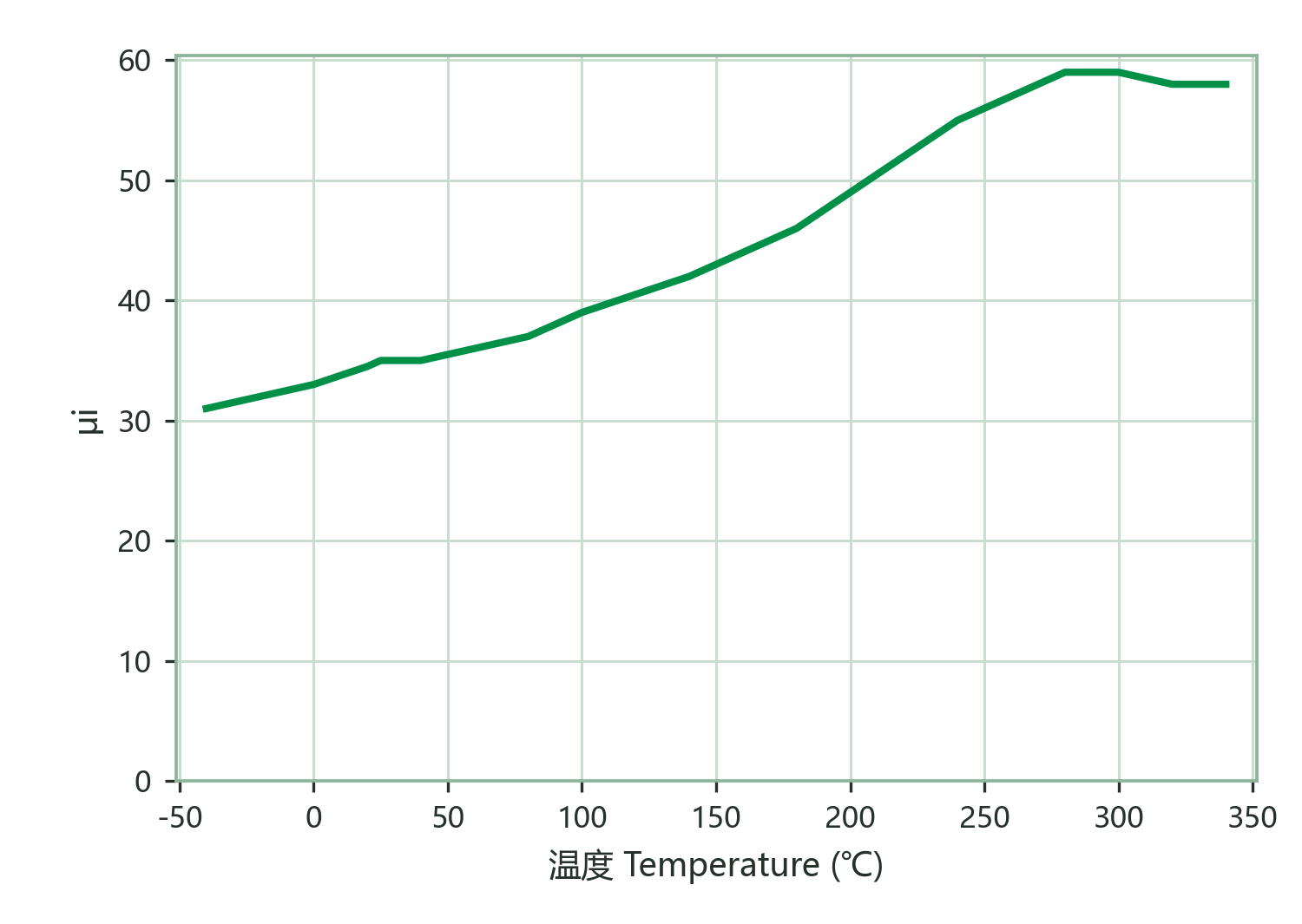

CURVE 01 · Initial Permeability vs. TemperatureInitial Permeability vs. Temperature

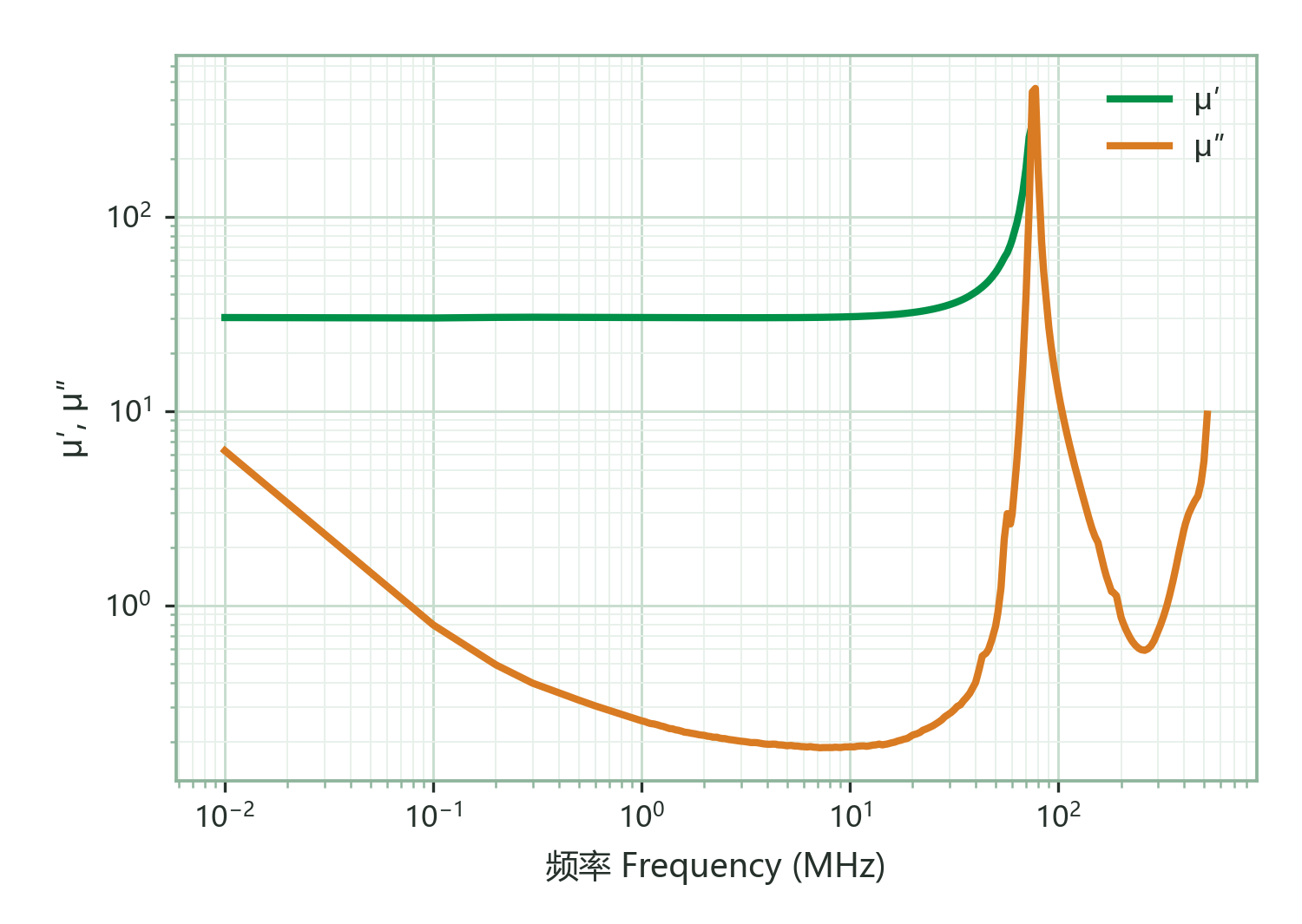

CURVE 02 · Complex Permeability (μ′, μ″) vs. FrequencyComplex Permeability (μ′, μ″) vs. Frequency

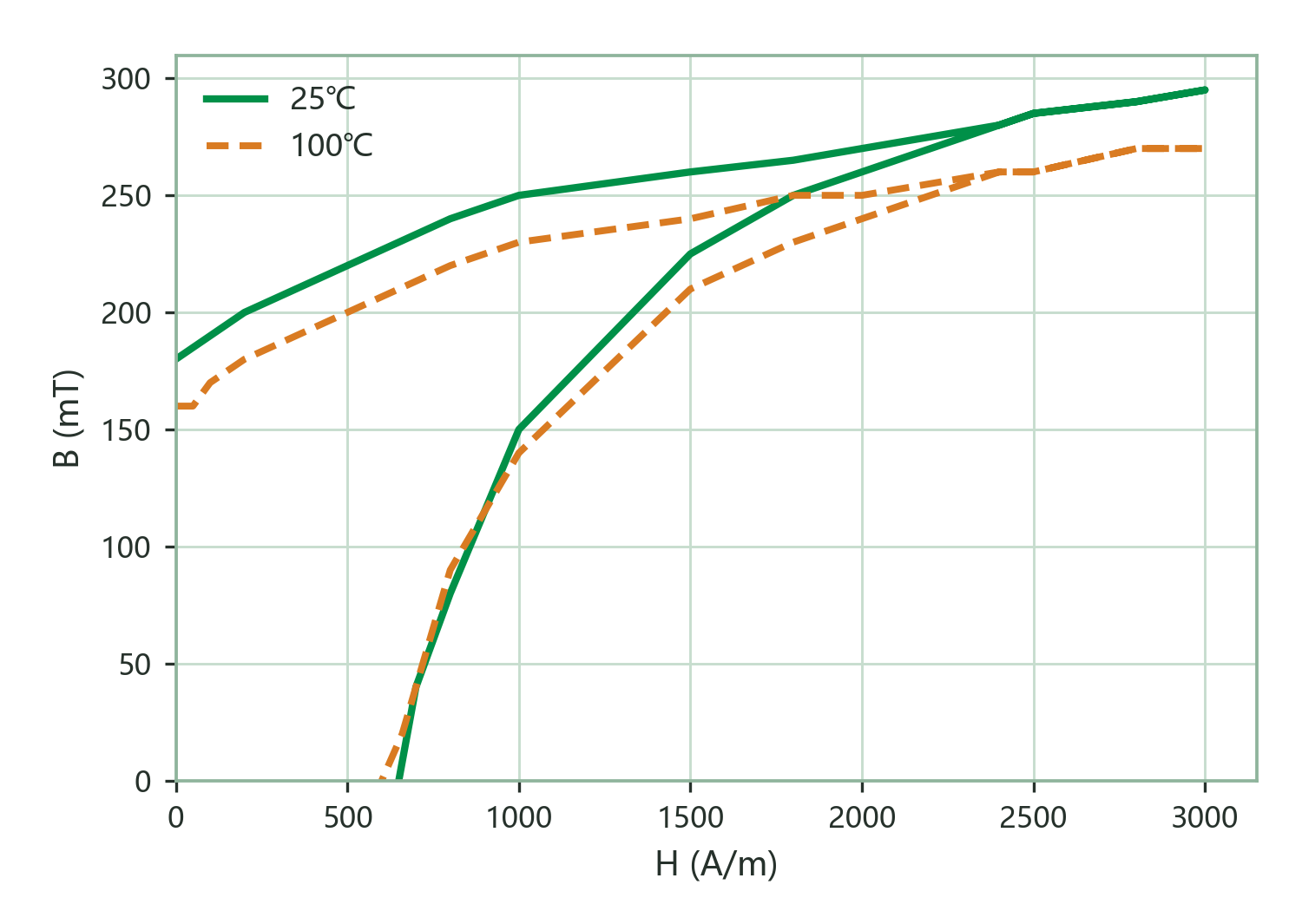

CURVE 03 · Static Magnetization Curves (B–H)Static Magnetization Curves (B–H)

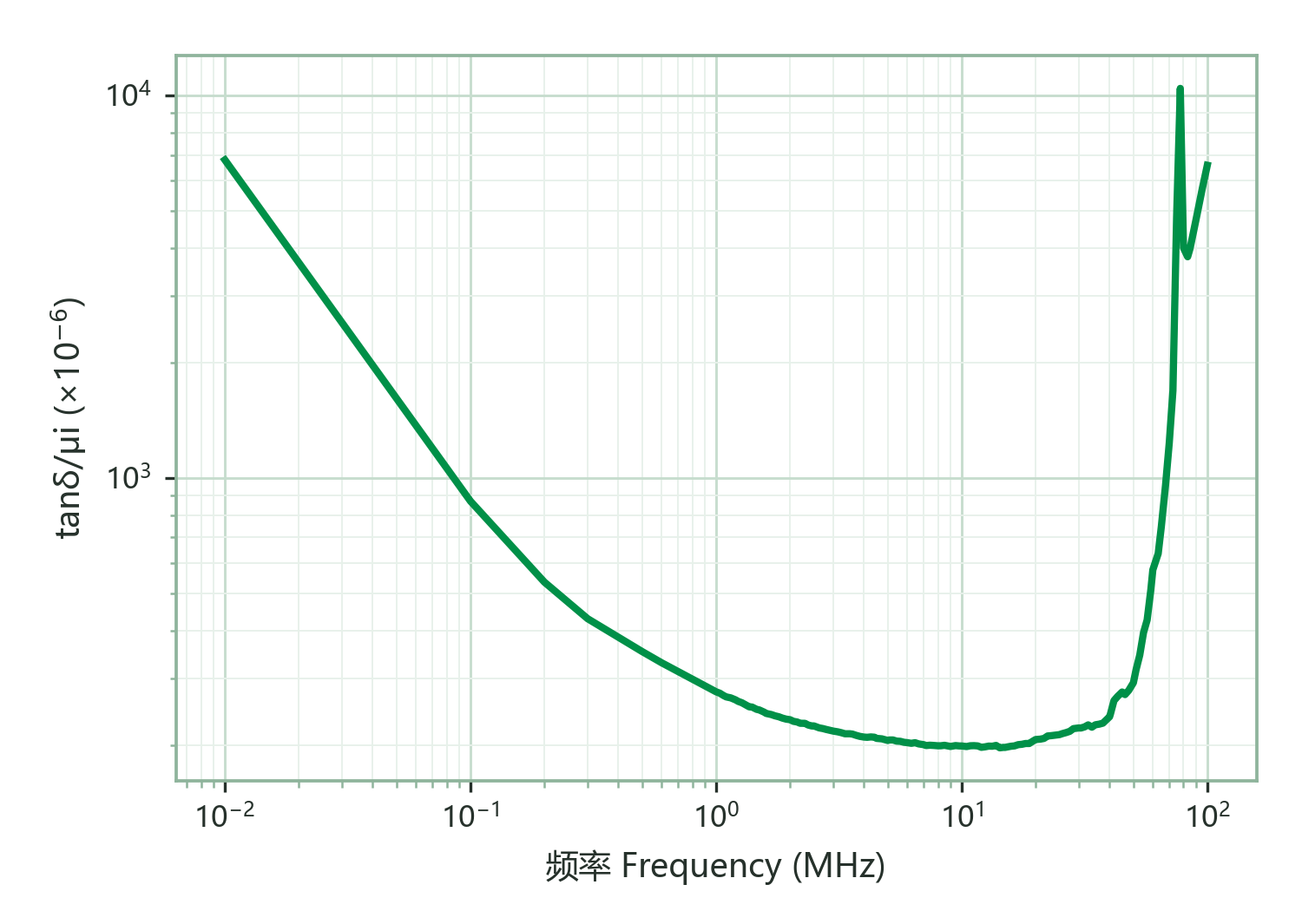

CURVE 04 · Relative Loss Factor (tanδ/μi) vs. FrequencyRelative Loss Factor (tanδ/μi) vs. Frequency

Applications

ApplicationRoleBandTemperature
Wideband signal transformer / balunFirst choice≤30 MHz—
Antenna rod / RFID / high-Q inductorFirst choice1–30 MHz—
Low-μ tuning / HF resonanceFirst choice1–30 MHz—
