MnZn Power Ferrite · High-frequency power · Material specification

TM61

MHZ-BAND LOW-LOSS POWER FERRITE

MHz Power Inductor (existing designs)MHz DC-DC ConverterGaN / SiC Resonant TransformerIsolation Transformer

TM61 is an MHz-band low-loss MnZn power ferrite with an initial permeability (μi) of 1000, a saturation flux density (Bs) of 540 mT at 25 °C (440 mT at 100 °C) and a Curie temperature above 260 °C. Pcv at 1 MHz / 50 mT is 190 → 155 kW/m³ and at 3 MHz / 10 mT 100 → 90 kW/m³, both with a negative temperature coefficient; at 100 °C the remanence (Br) is 50 mT and the coercivity (Hc) 15 A/m. A μi of 1000 raises the permeability cut-off frequency, so core loss does not limit efficiency when GaN/SiC devices switch at 1–3 MHz. Before the introduction of TM65, TM61 was the common grade for MHz-class power inductors and transformers, used in storage and filter inductors of MHz DC-DC converters and in GaN/SiC resonant and isolation transformers. Among the high-frequency grades TM61 is the earlier generation: TM65 is recommended for new MHz-class inductor designs (μi 1300, 100 °C I@90 % = 47.3 A against 42.1 A for TM61); TM61 remains in supply for existing designs and remains applicable to 1–3 MHz transformers (155 kW/m³ at 1 MHz / 50 mT, 100 °C). Small-size MHz transformers should use TM63; at 500 kHz / 100 mT it reads 550 → 700 kW/m³, so frequencies below 700 kHz are outside its intended range.

Magnetic Characteristics

CharacteristicCondition25 ℃100 ℃Unit
Initial Permeability μiInitial Permeability μi100 kHz & <0.2 mT1000±25%——
Amplitude Permeability μaAmplitude Permeability μa25 kHz/400 mT> 2200> 2000—
Saturation Flux Density BsSaturation Flux Density Bs1200 A/m 50 Hz540440mT
Remanence BrRemanence Br1200 A/m 50 Hz9050mT
Coercivity HcCoercivity Hc1200 A/m 50 Hz2015A/m
Loss FactorLoss Factor100 kHz<5<1010⁻⁶
Curie Temperature TcCurie Temperature Tc100 kHz & <0.2 mT>260—℃
Density DDensity DArchimedes method4.85—g/cm³
Electrical Resistivity ρElectrical Resistivity ρDC Current10—Ω·m

Power Loss · kW/m³

Condition25 ℃100 ℃
500 kHz/100 mT550700
1 MHz/50 mT190155
3 MHz/10 mT10090

Pcv = K·f^α·B^β

RangeKαβ
100 ≤5001.15E-081.297953.63096
100 ≤10005.21E-091.352373.7374
100 ≤30005.60E-061.655111.57087

Characteristic curves

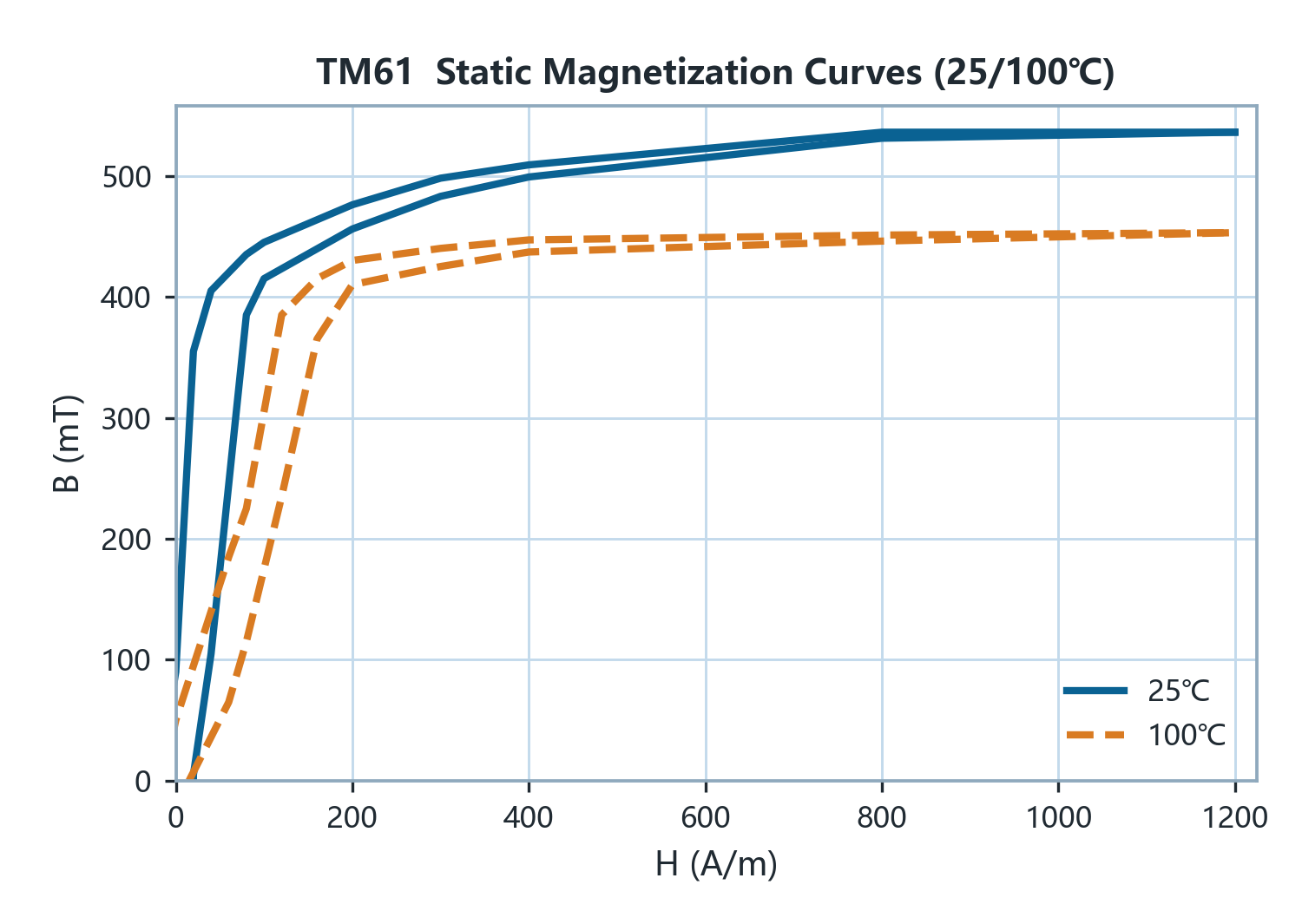

CURVE 01curve

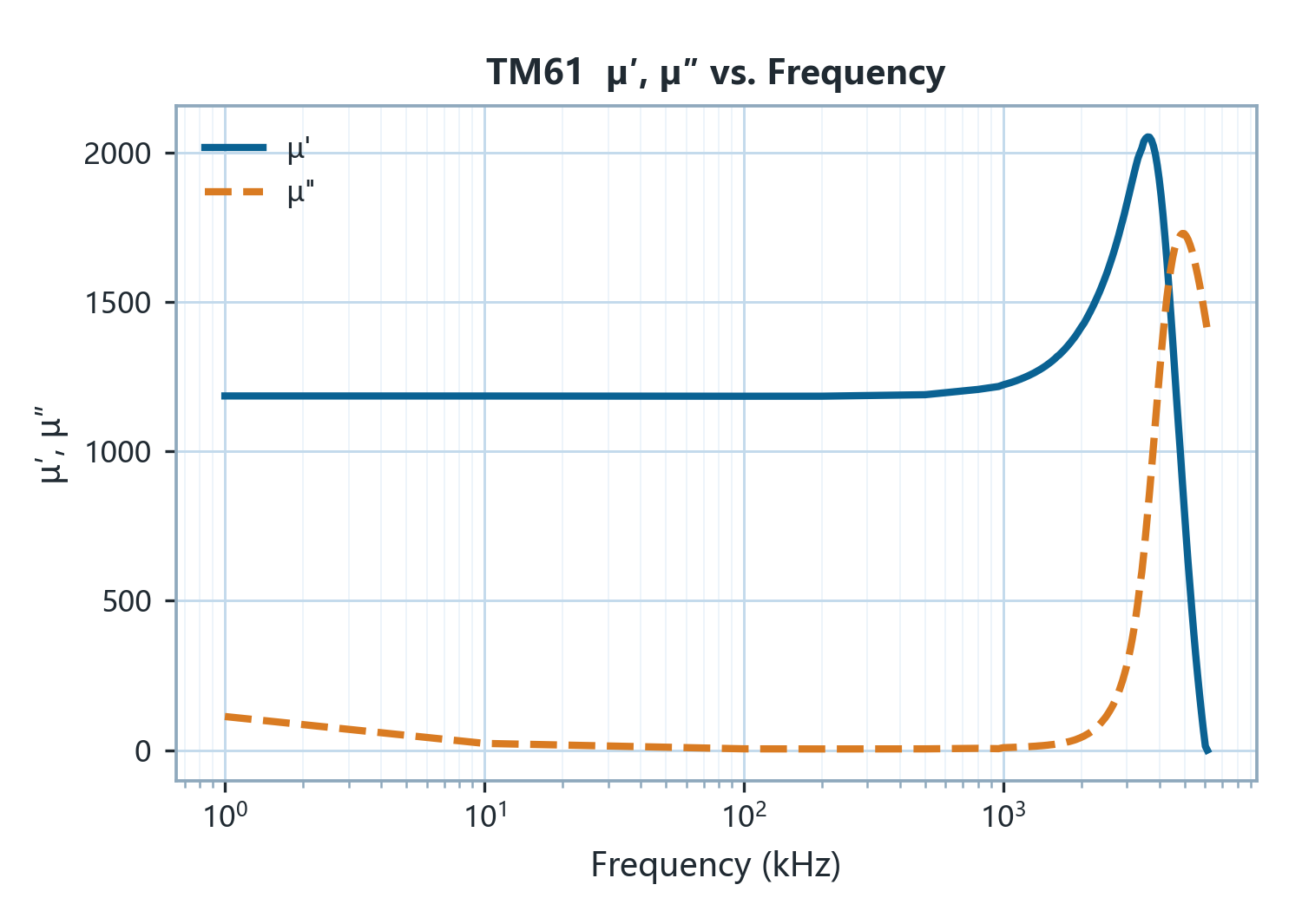

CURVE 02curve

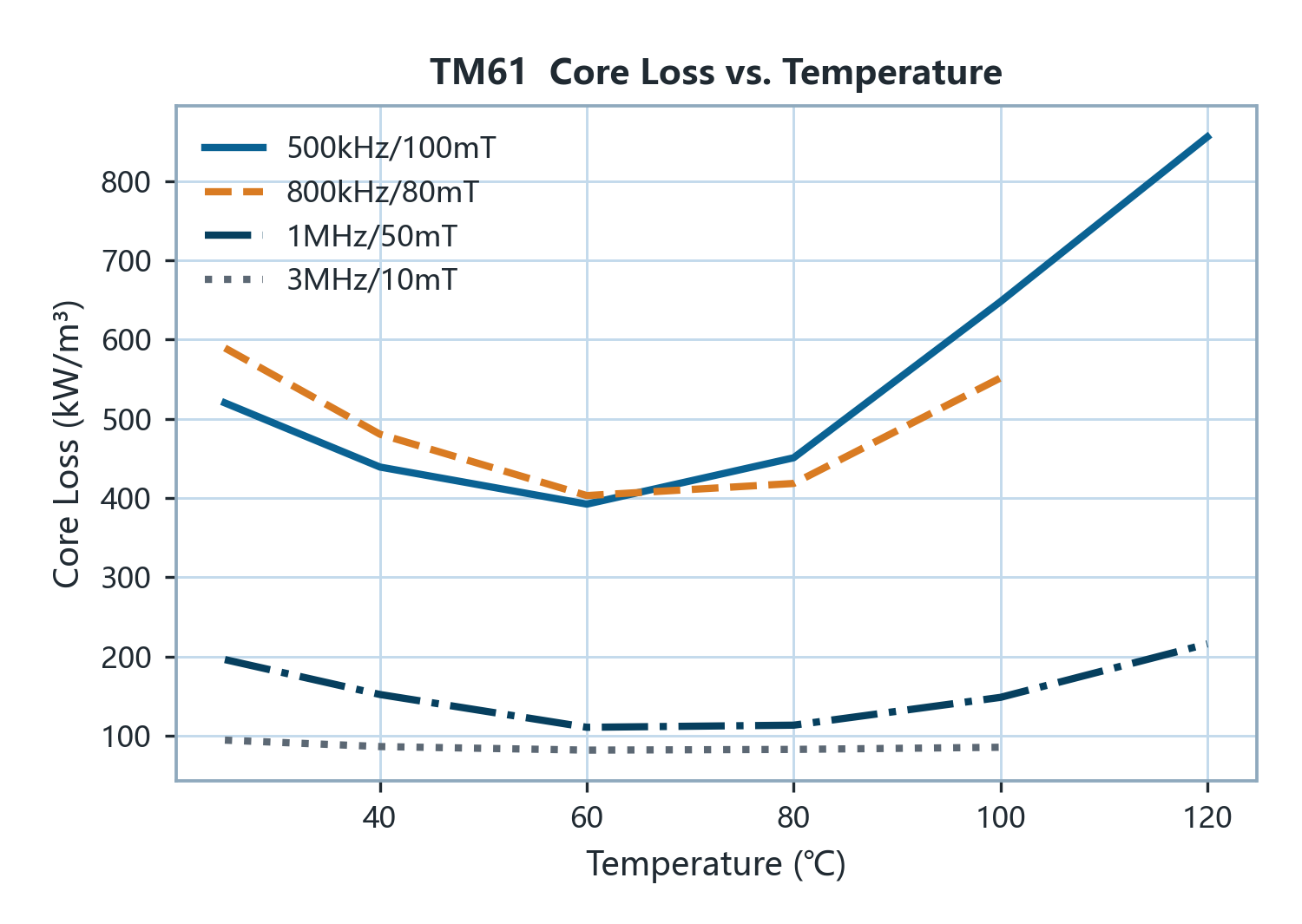

CURVE 03curve

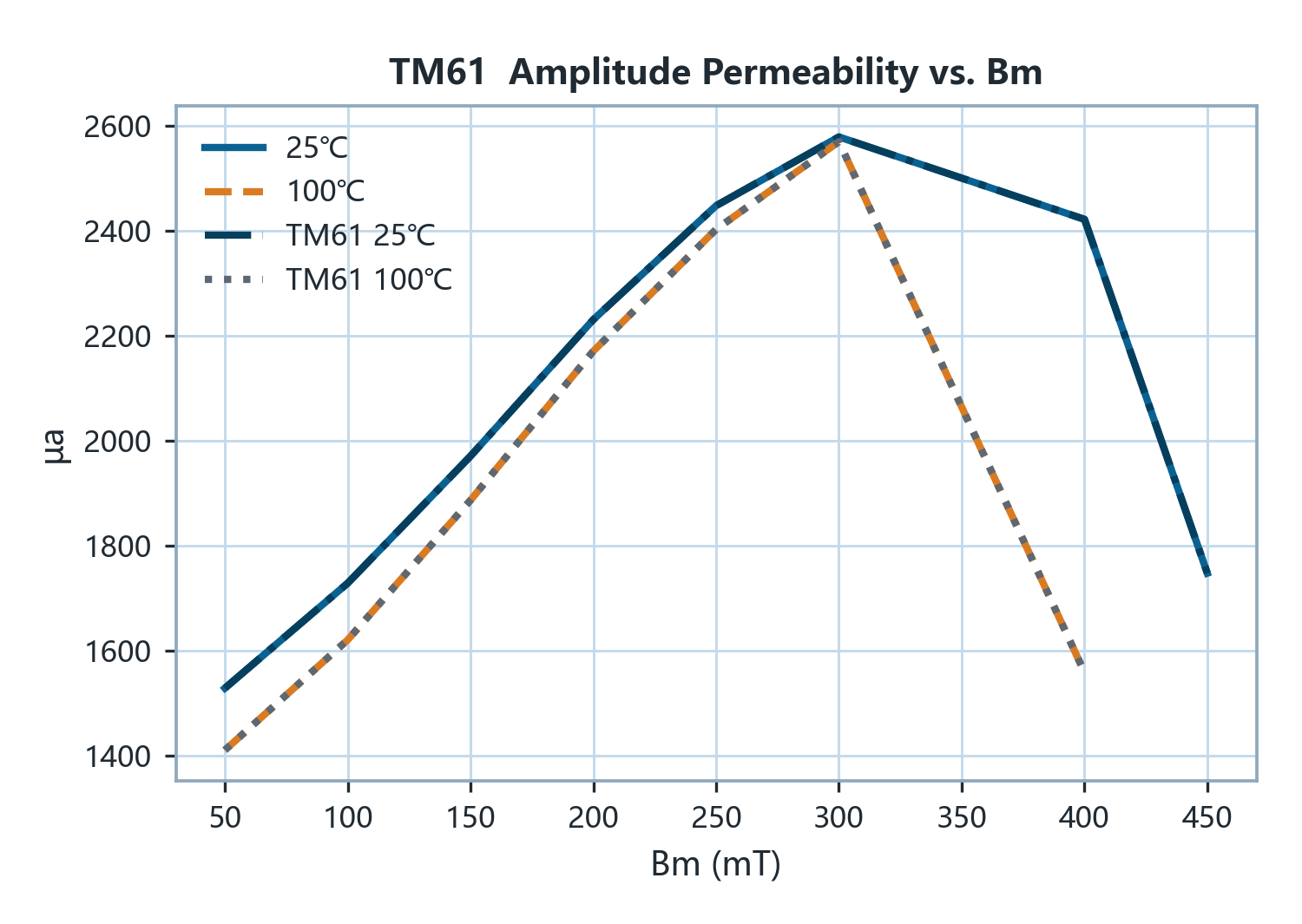

CURVE 04curve

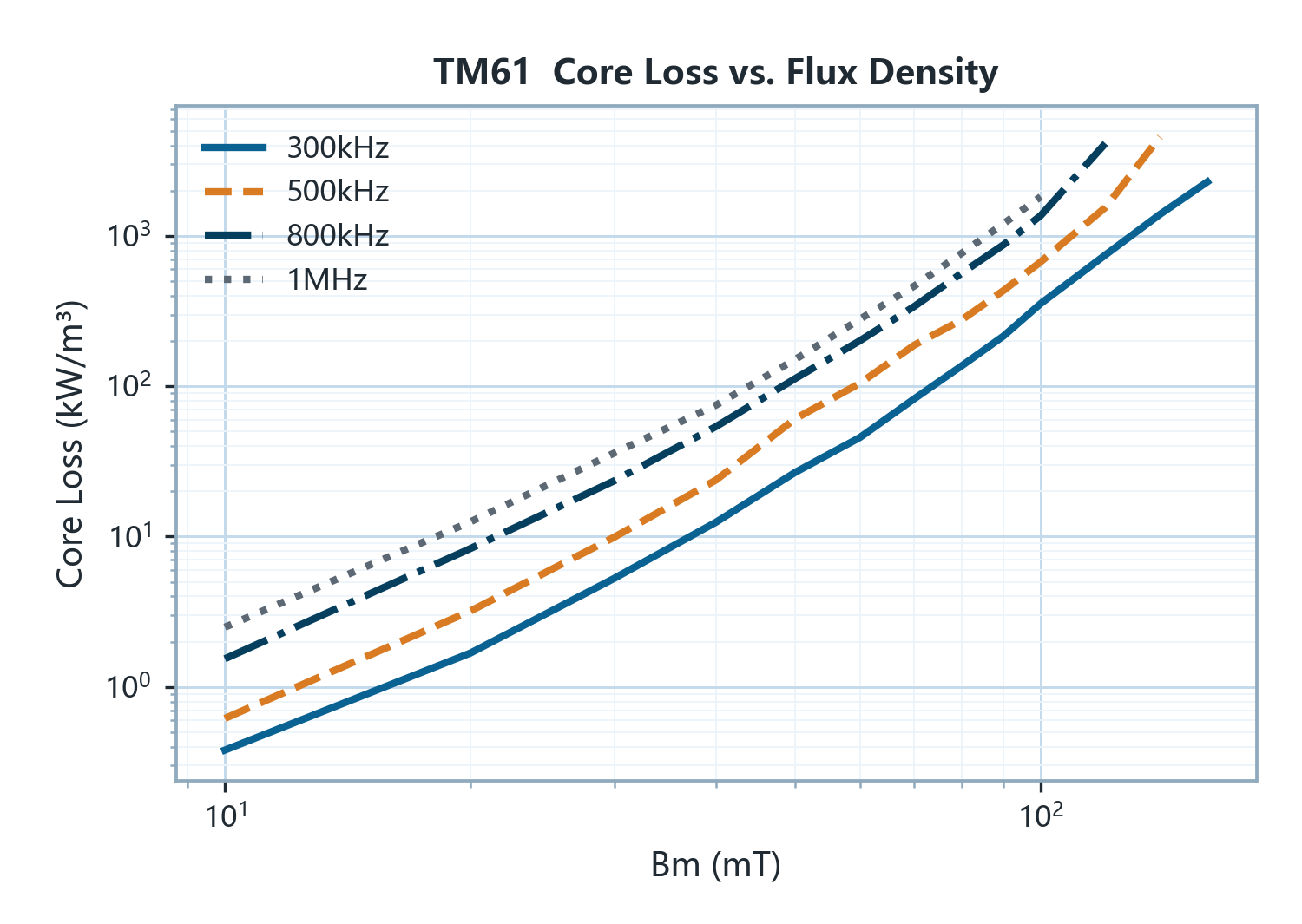

CURVE 05curve

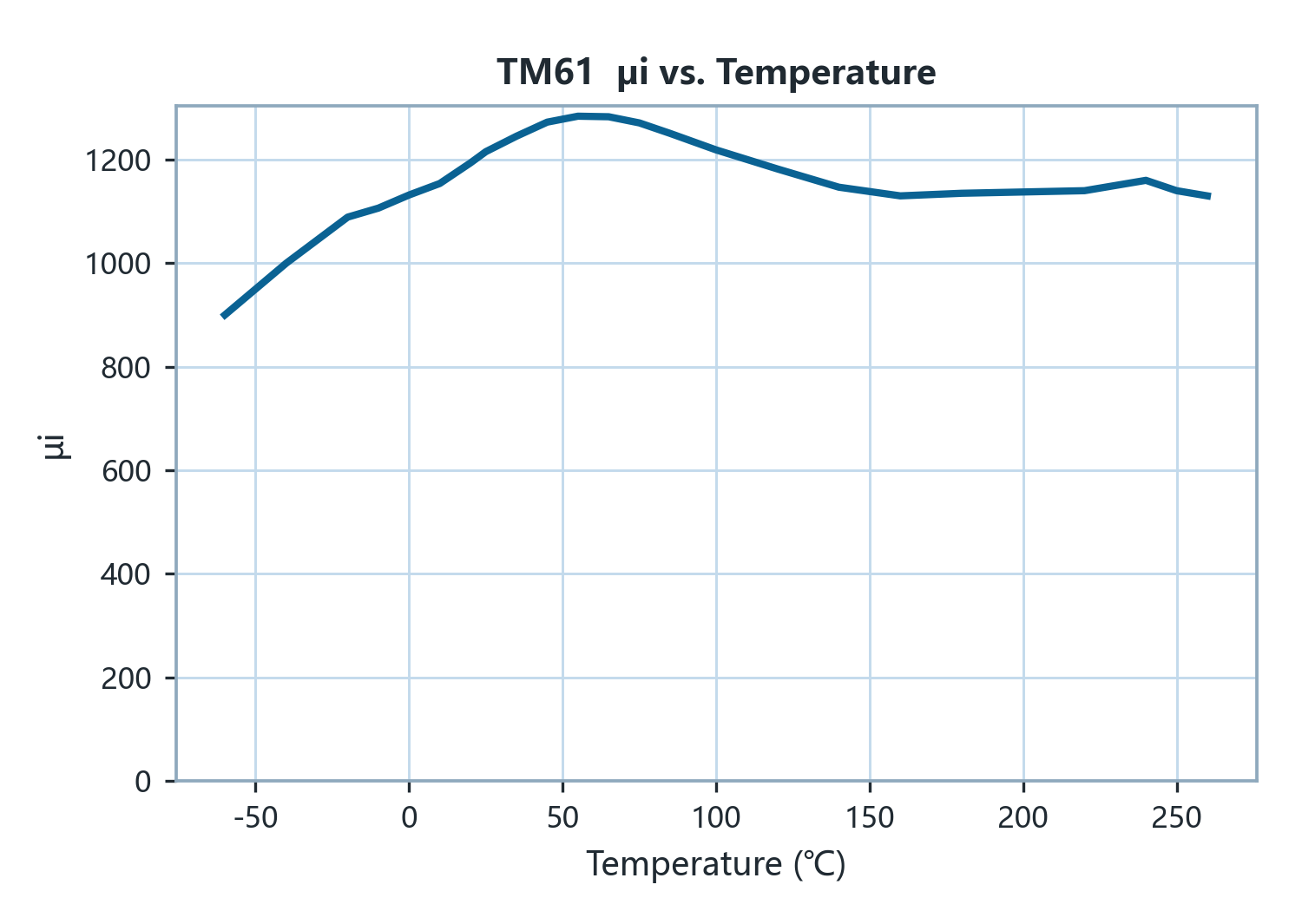

CURVE 06curve

Applications

ApplicationRoleBandTemperature
Flyback transformer (>150 W)Alternative1–3 MHz40–80 ℃
LLC / resonant & bridge transformer (incl. Lr)Alternative1–3 MHz40–80 ℃
Small-size MHz transformer (1–5 MHz)Alternative1–3 MHz40–80 ℃
Buck output inductorAlternative0.8–3 MHz—
Boost input inductorAlternative0.8–3 MHz—
PFC chokes & high-current storage inductorsAlternative0.8–3 MHz—
Forward / push-pull output inductorAlternative0.8–3 MHz—
VRM / TLVR / PoL inductorAlternative0.8–1 MHz—
Wideband signal transformer / balunAlternative1–3 MHz—
